NOVA-PV-D5251/D4251 5.25" SBC

Page 31

CN Location:

See Figure 3-11

CN Pinouts:

See Table 3-10

The connector connects to the hard drive activity LED and power LED on the system front

panel. +5 V power output is also provided via this connector.

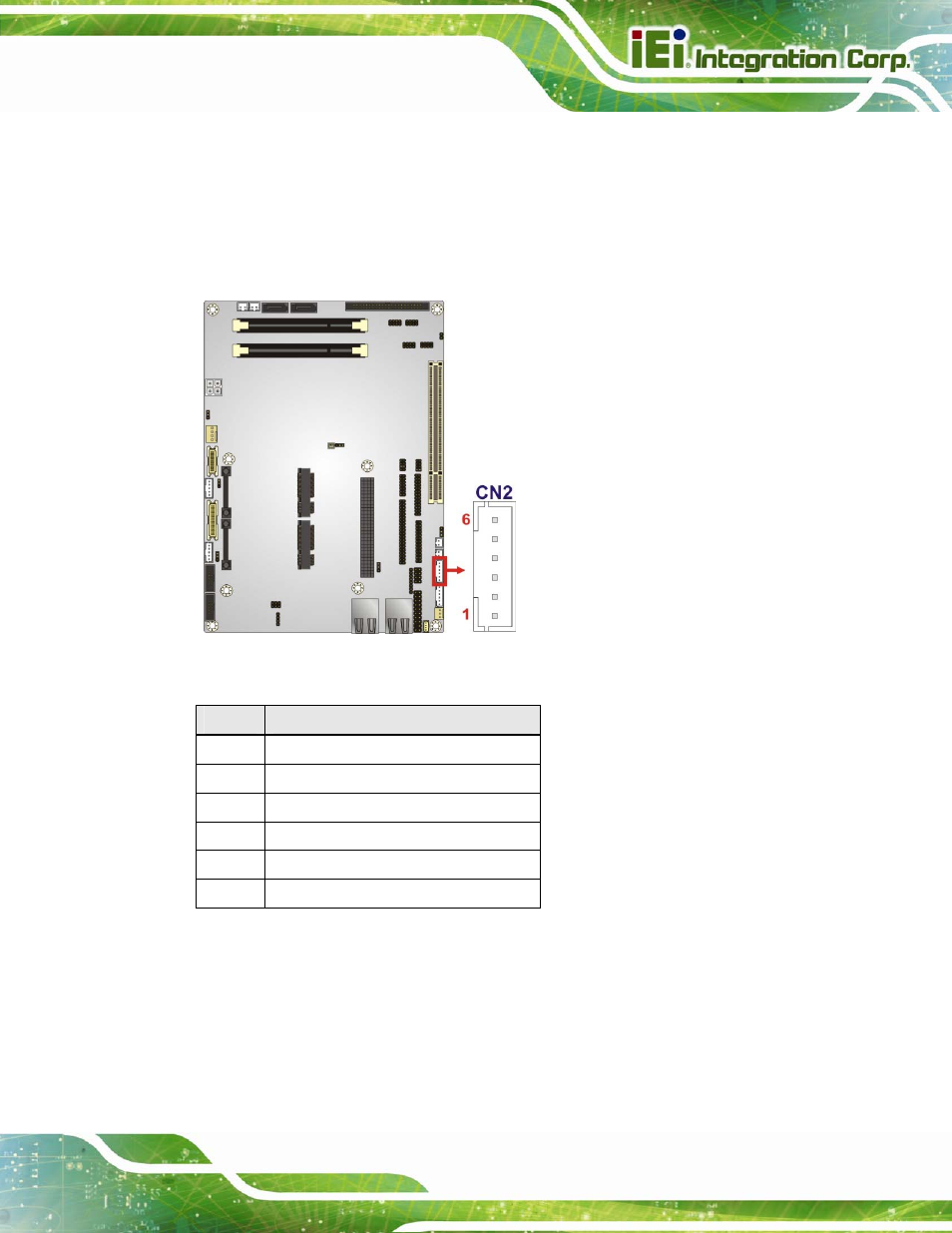

Figure 3-11: Front Panel Connector Location

Pin

Description

1 VCC

2 GND

3 PWR_LED+

4 PWR_LED-

5 HDD_LED+

6 HDD_LED-

Table 3-10: Front Panel Connector Pinouts

3.2.10 IDE Connector

CN Label:

IDE1

CN Type:

44-pin box header (2x22)
