NOVA-PV-D5251/D4251 5.25" SBC

Page 24

Pin Description

1 Battery+

(+3.3V)

2 Ground

Table 3-4: Battery Connector Pinouts

3.2.3 CompactFlash® Slot

NOTE:

1. Both CompactFlash® Type I and Type II cards are supported.

2. To use SATA and CF, CF must be set to slave.

CN Label:

CF1

CN Type:

CompactFlash® card slot (solder side)

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-5

A CompactFlash® Type I or Type II card can be used in this slot.

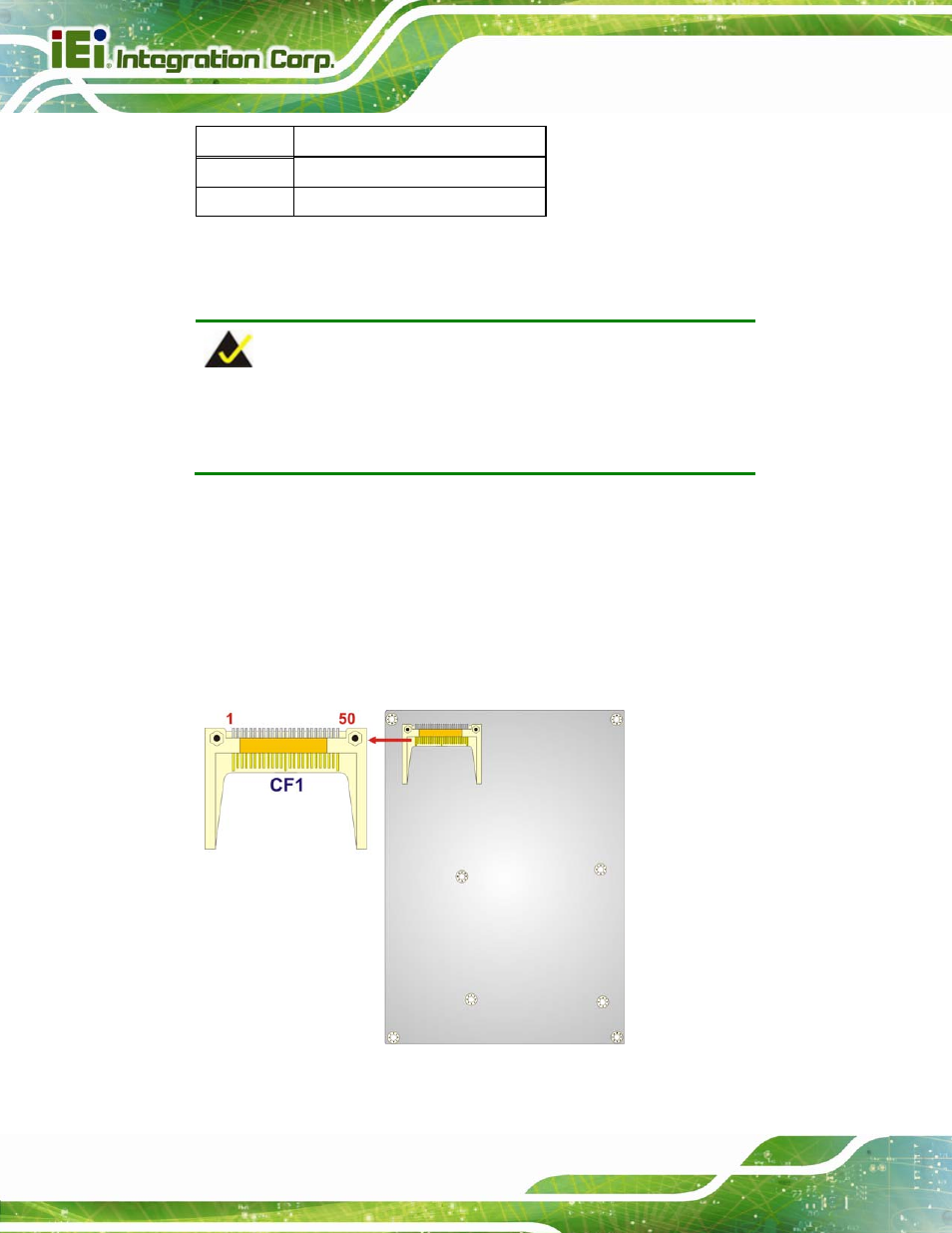

Figure 3-5: CompactFlash® Slot Location
