NOVA-PV-D5251/D4251 5.25" SBC
Page 64
Before and during the installation of the NOVA-PV-D5251/D4251 DO NOT:
ƒ DO NOT remove any of the stickers on the PCB board. These stickers are
required for warranty validation.
ƒ DO NOT use the product before verifying all the cables and power connectors
are properly connected.
ƒ DO NOT allow screws to come in contact with the PCB circuit, connector pins,
or its components.
4.3 SO-DIMM Installation
To install an SO-DIMM, please follow the steps below and refer to Figure 4-1.

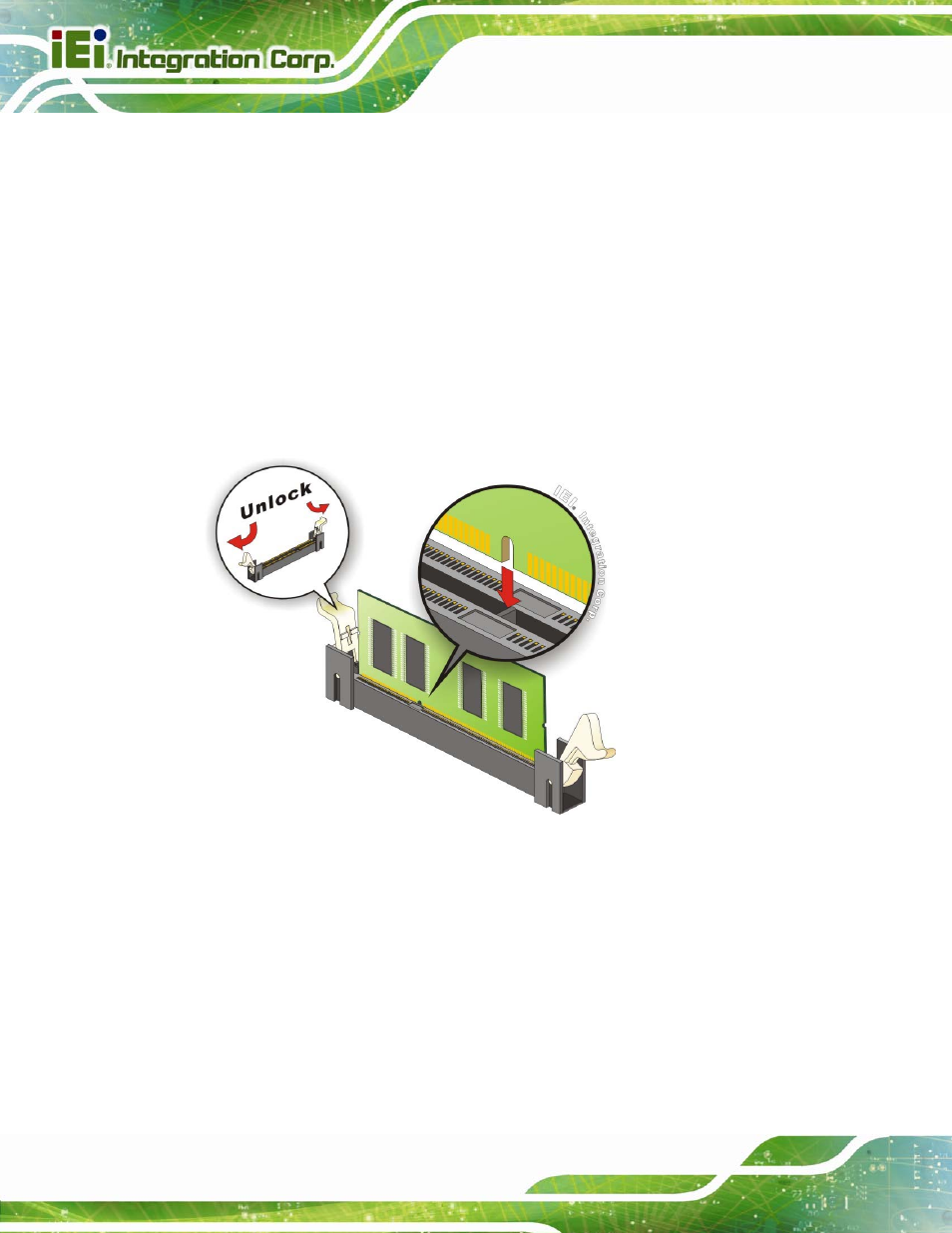

Figure 4-1: SO-DIMM Installation
Step 1: Open the SO-DIMM socket handles. Open the two handles outwards as far as
they can. See Figure 4-1.
Step 2: Align the SO-DIMM with the socket. Align the SO-DIMM so the notch on the
memory lines up with the notch on the memory socket. See Figure 4-1.
Step 3: Insert the SO-DIMM. Once aligned, press down until the SO-DIMM is properly
seated. Clip the two handles into place. See Figure 4-1.
