4.5.8 PCI-104 Voltage Setup

Jumper Label:

JP6

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-10

Jumper Location:

See Figure 4-11

This jumper selects the voltage supplied to the PCI-104 expansion module.

Setting Description

Short 1-2

+5.0 V (Default)

Short 2-3

+3.3 V

Table 4-10: PCI-104 Voltage Jumper Settings

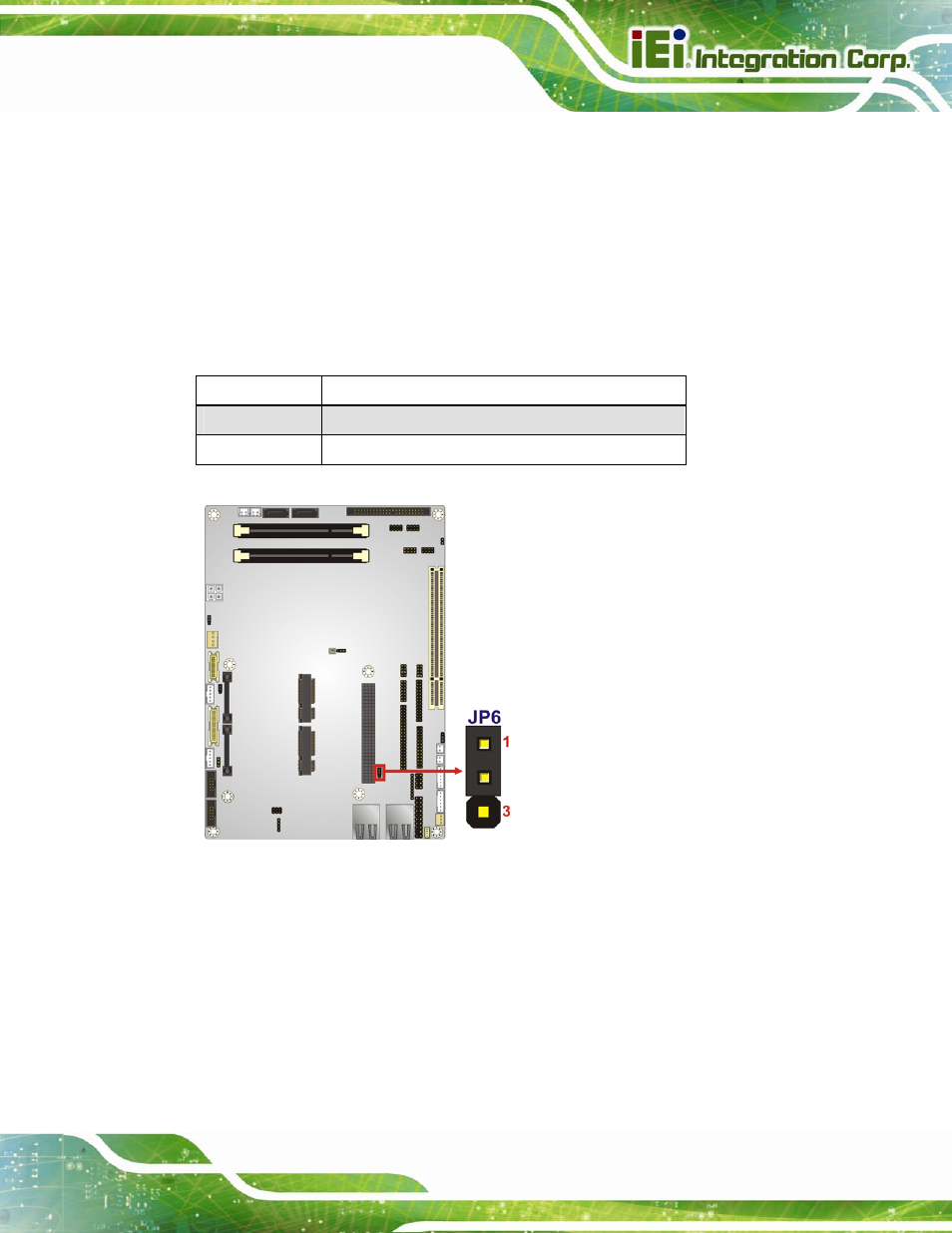

Figure 4-11: PCI-104 Voltage Jumper Location
