NOVA-PV-D5251/D4251 5.25" SBC
Page 26
The SO-DIMM connector is for installing memory on the system.

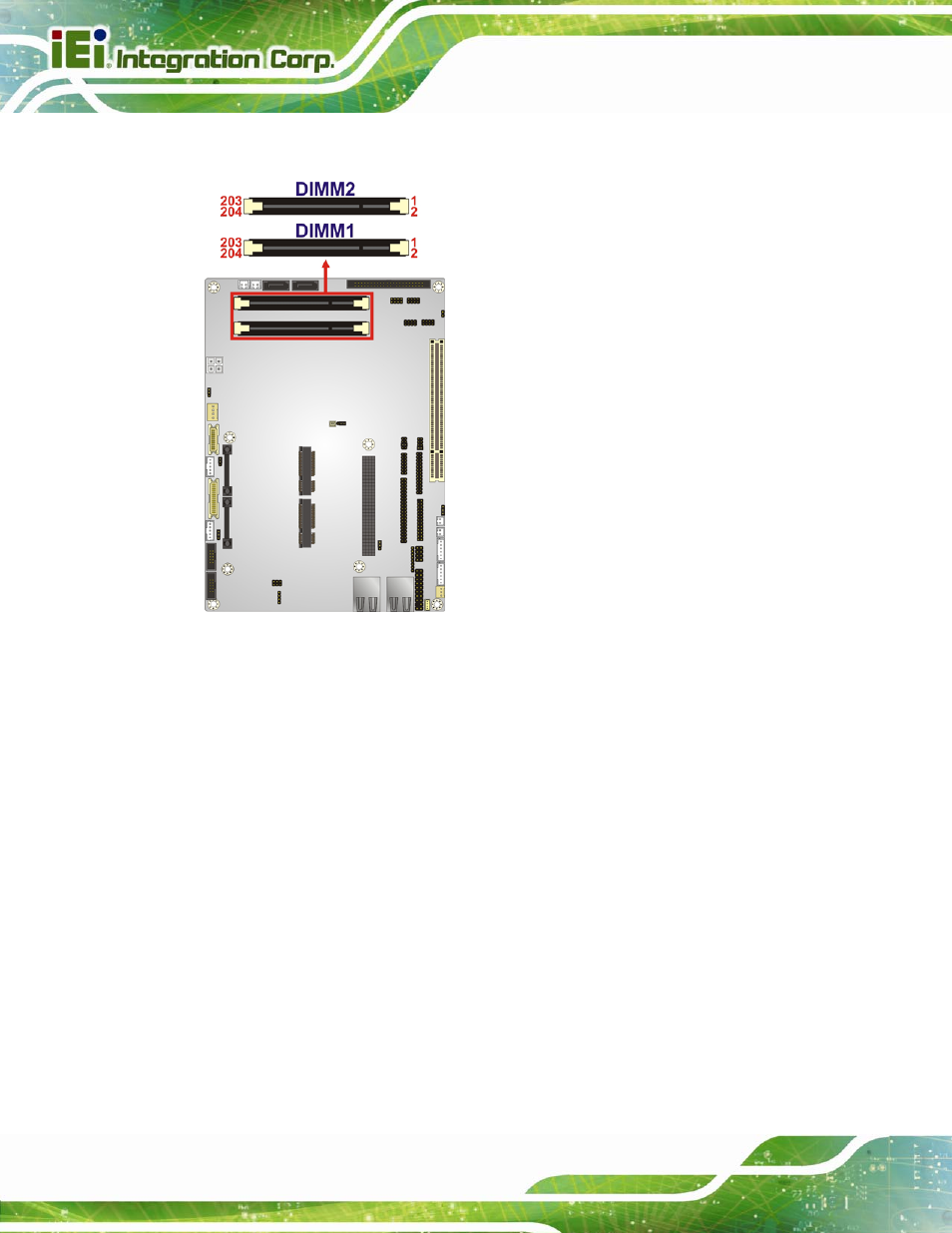

Figure 3-6: SO-DIMM Connector Locations
3.2.5 Digital I/O Connector
CN Label: DIO1
CN Type: 26-pin header (2x13)
CN Location: See Figure 3-7
CN Pinouts: See Table 3-6
The digital I/O connector provides programmable input and output for external devices.
The digital I/O provides 12-bit output and 12-bit input.
