NOVA-PV-D5251/D4251 5.25" SBC

Page 30

3.2.8 Fan Connector (System)

CN Label:

FAN2

CN Type:

3-pin wafer (1x3)

CN Location:

See

7

Figure 3-10

CN Pinouts:

See

7

Table 3-9

The cooling fan connector provides a 12V, 500mA current to the cooling fan.

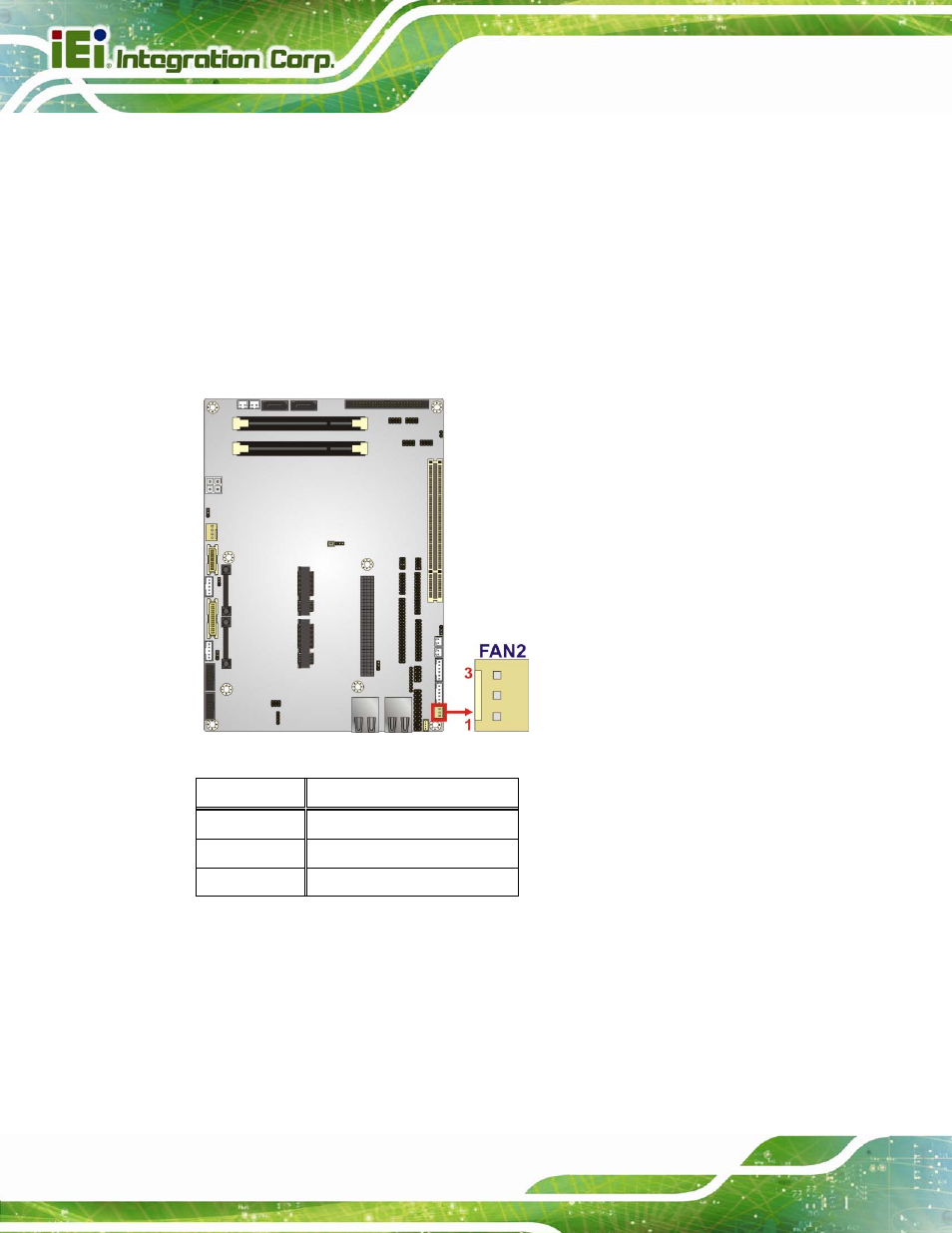

Figure 3-10: +12V Fan Connector Locations

Pin Description

1 SYSFANIN0

2 +12V

3 GND

Table 3-9: +12V Fan Connector Pinouts

3.2.9 Front Panel Connector

CN Label:

CN2

CN Type:

6-pin wafer (1x6)
