NANO-QM57A EPIC SBC

Page 53

Step 5:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 6:

Insert the VGA connector. Once the connectors are properly aligned, insert the

male connector from the VGA screen into the female connector on the

NANO-QM57A. See

Figure 4-18.

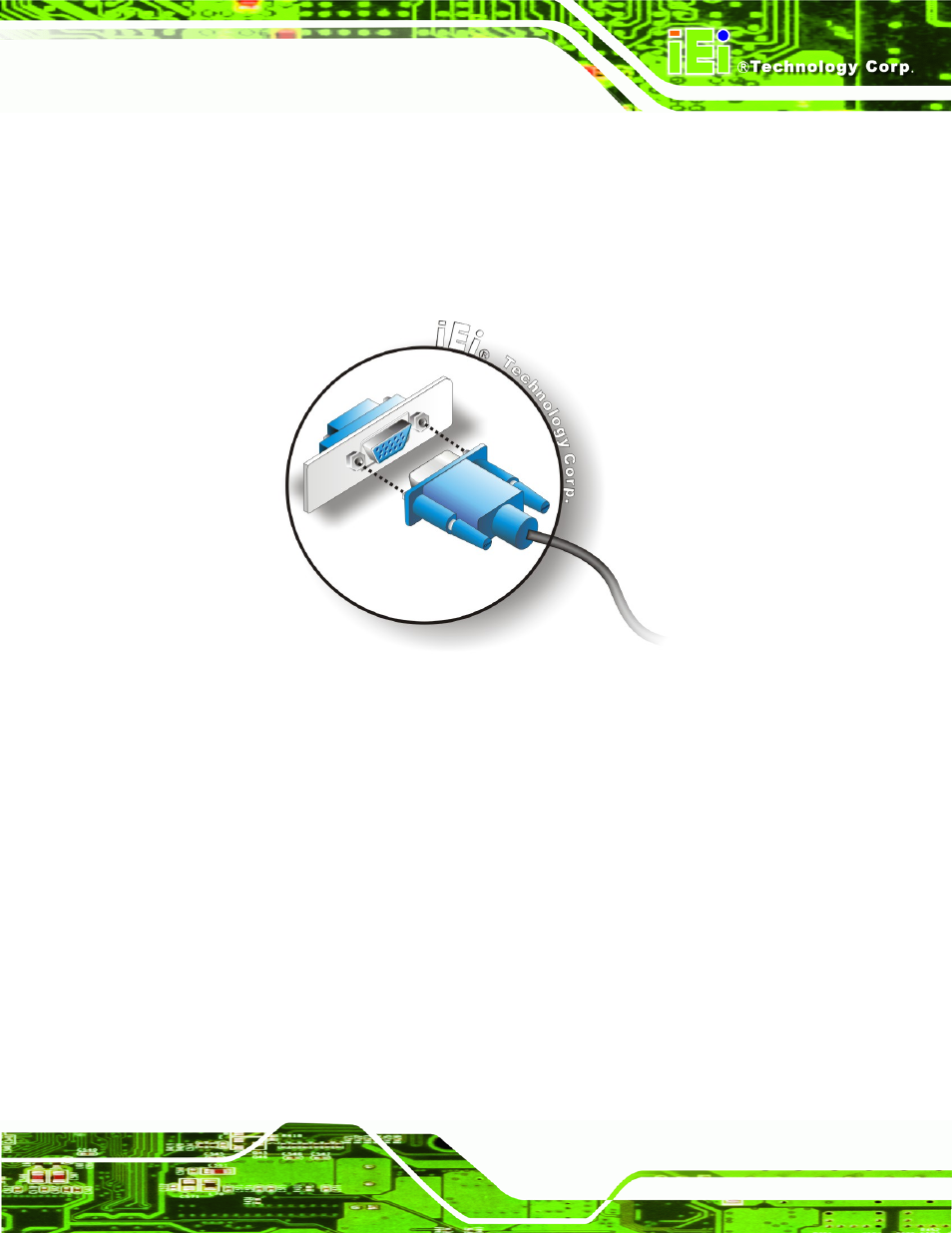

Figure 4-18: VGA Connector

Step 7:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.

Step 0:

4.9 Software Installation

All the drivers for the NANO-QM57A are on the CD that came with the system. To install

the drivers, please follow the steps below.

Step 1:

Insert the CD into a CD drive connected to the system.
