NANO-QM57A EPIC SBC

Page 42

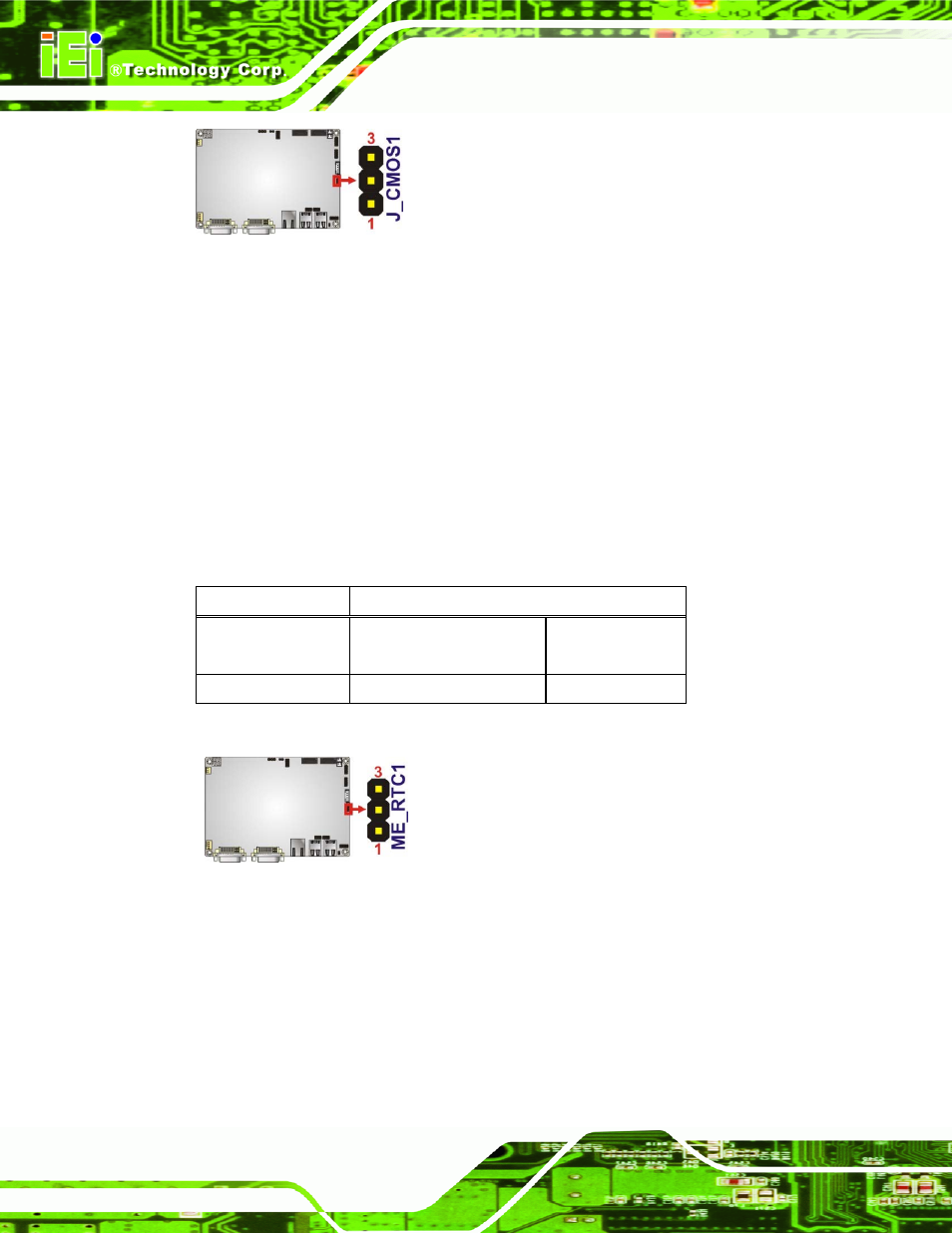

Figure 4-8: Clear CMOS Jumper

4.5.4 ME RTC Register Jumper

Jumper Label:

ME_RTC1

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-5

Jumper Location:

See Figure 4-9

The ME RTC Register jumper saves or clears the ME RTC registers. The ME RTC

Register jumper settings are shown in Table 4-4.

Setting Description

Short 1-2

Save ME RTC registers

(normal operation)

Default

Short 2-3

Clear ME RTC registers

Table 4-5: ME RTC Register Jumper Settings

Figure 4-9: ME RTC Register Jumper Location
