NANO-QM57A EPIC SBC

Page 20

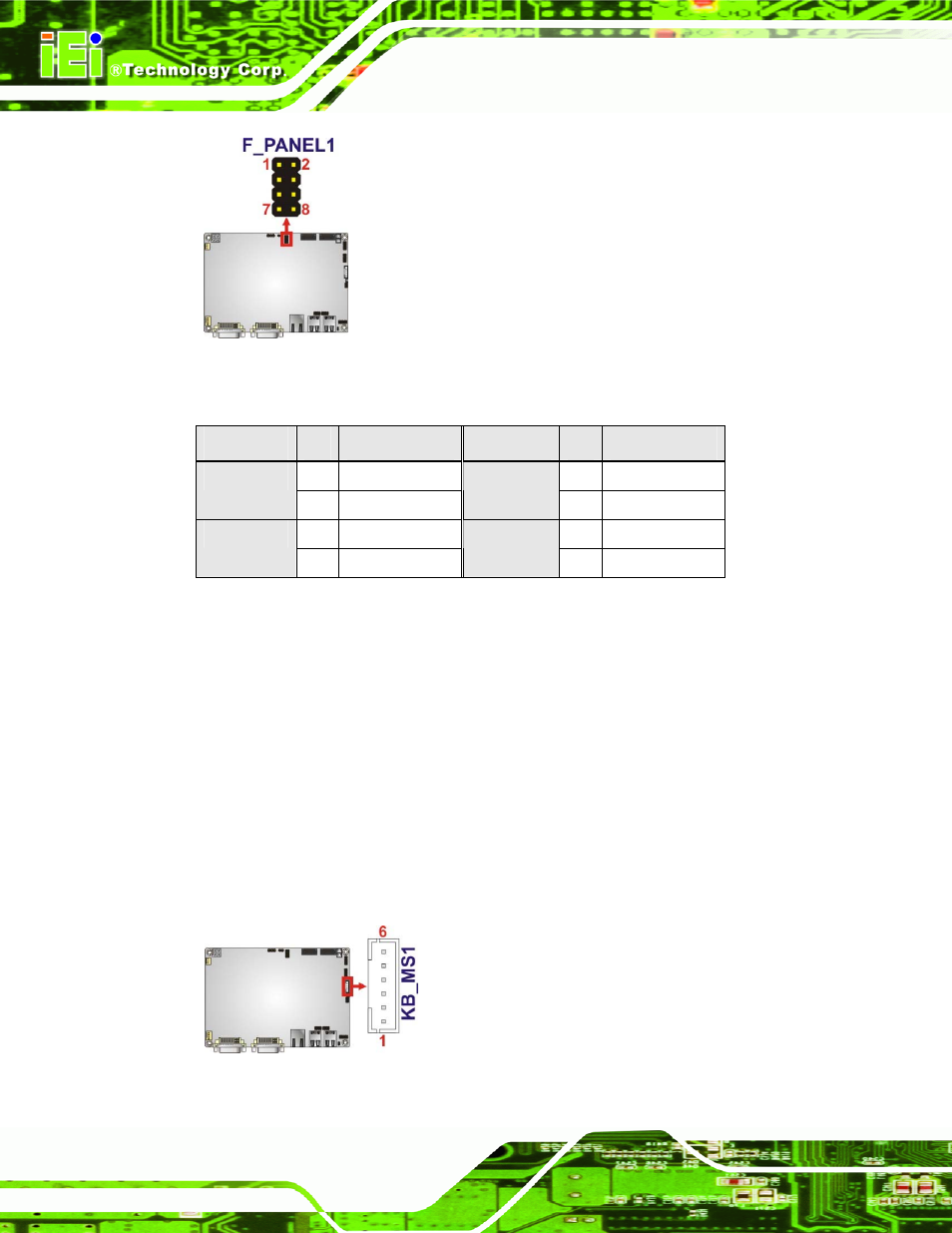

Figure 3-7: Front Panel Connector Location

FUNCTION

PIN DESCRIPTION

FUNCTION

PIN

DESCRIPTION

1 PWRBTN_SW#

2 PWR

LED

Power Button

3 GND

Power LED

4 GND

5

SATA LED PWT

6

RESET

SATA LED

7 SATA_LED#

Reset

8 GND

Table 3-8: Front Panel Connector Pinouts

3.2.7 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer (1x6)

CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-9

The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a

PS/2 keyboard and mouse.

Figure 3-8: Keyboard/Mouse Connector Location
