NANO-QM57A EPIC SBC
Page 27

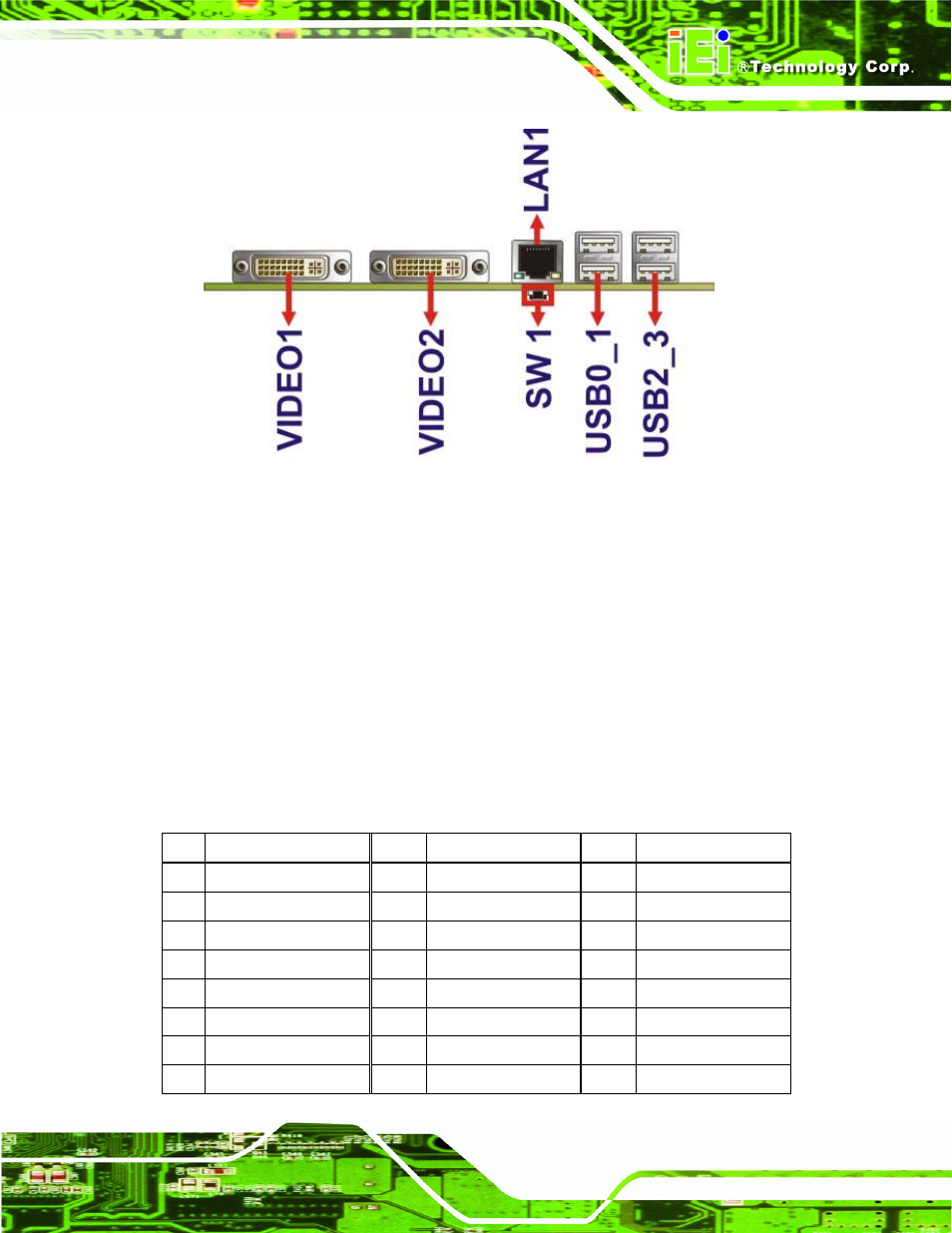

Figure 3-15: NANO-QM57A External Peripheral Interface Connector
3.3.1 DVI Connector
CN Label: VIDEO1, VIDEO2
CN Type: DVI connector
CN Location: See Figure 3-15
CN Pinouts: See Table 3-16
The 24-pin Digital Visual Interface (DVI) connector connects to high-speed,
high-resolution digital displays. The DVI-I connector supports both digital and analog
signals.
Pin Description Pin Description Pin Description
1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data0-
2 TMDS Data2+ 10 TMDS Data1+ 18 TMDS Data0+
3 GND 11 GND 19 GND
4 N/C 12 NC 20 NC
5 N/C 13 NC 21 NC
6 DDC Clock [SCL] 14 PVDD1 22 GND
7 DDC Data [SDA] 15 GND 23 TMDS Clock +
8 Analog vertical sync 16 GND 24 TMDS Clock -
