NANO-QM57A EPIC SBC

Page 52

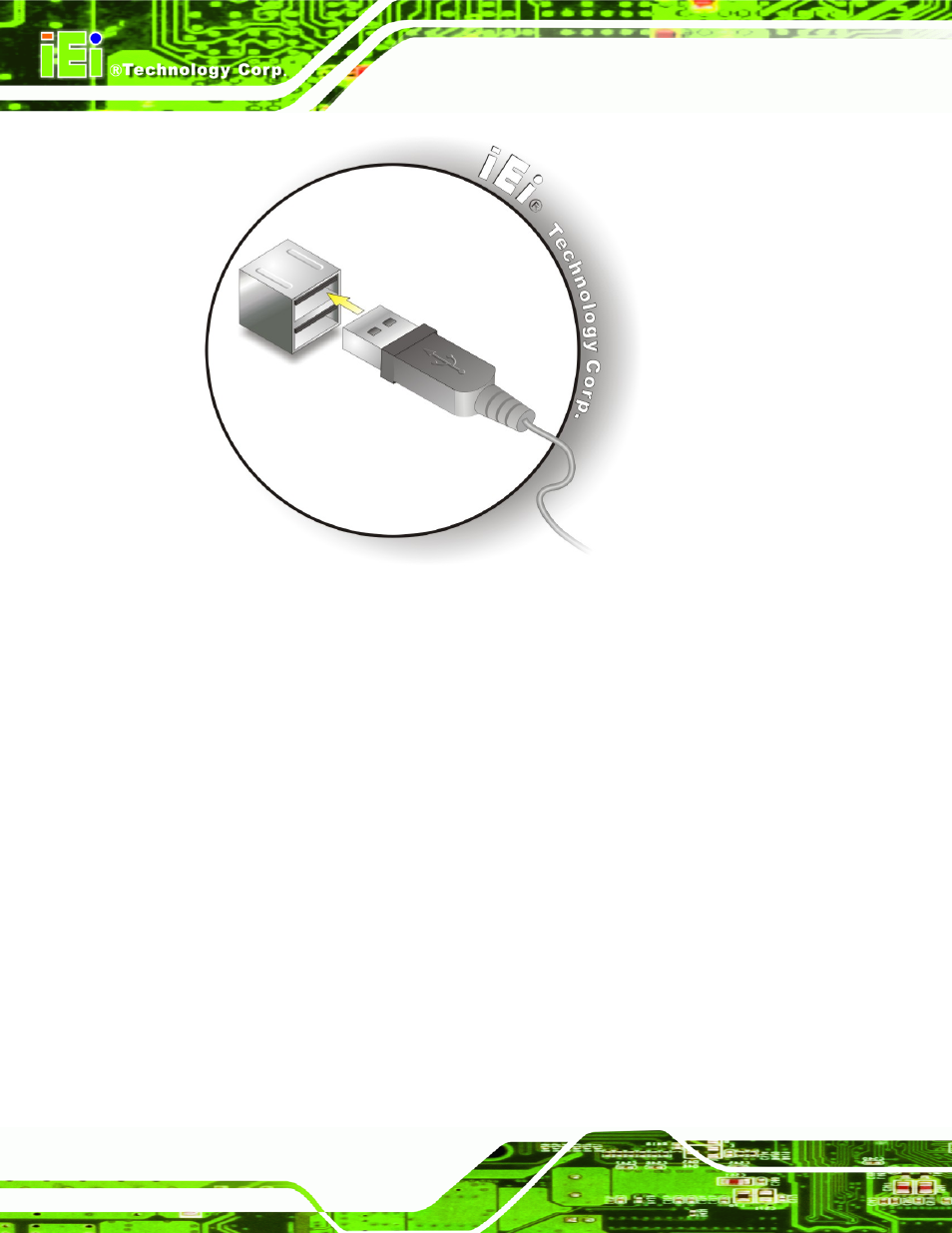

Figure 4-17: USB Connector

4.8.4 VGA Monitor Connection

The NANO-QM57A is shipped with a DVI-I (male) to VGA adapter (female DB-15

connector) . The DB-15 connector is connected to a CRT or VGA monitor. To connect a

monitor to the NANO-QM57A, please follow the instructions below.

Step 1:

Locate the DVI-I connector (VIDEO2). The location of the VIDEO2 connector

is shown in Chapter 3.

Step 2:

Align the DVI-I to VGA adapter. Align the DVI-I (male) end of the DVI-I to VGA

adapter with the VIDEO2 connector on the external peripheral interface.

Step 3:

Insert the DVI-I to VGA connector. Once the connectors are properly aligned,

insert male connector from the adapter into the female connector on the

NANO-QM57A

Step 4:

Locate the female DB-15 connector on the adapter.
