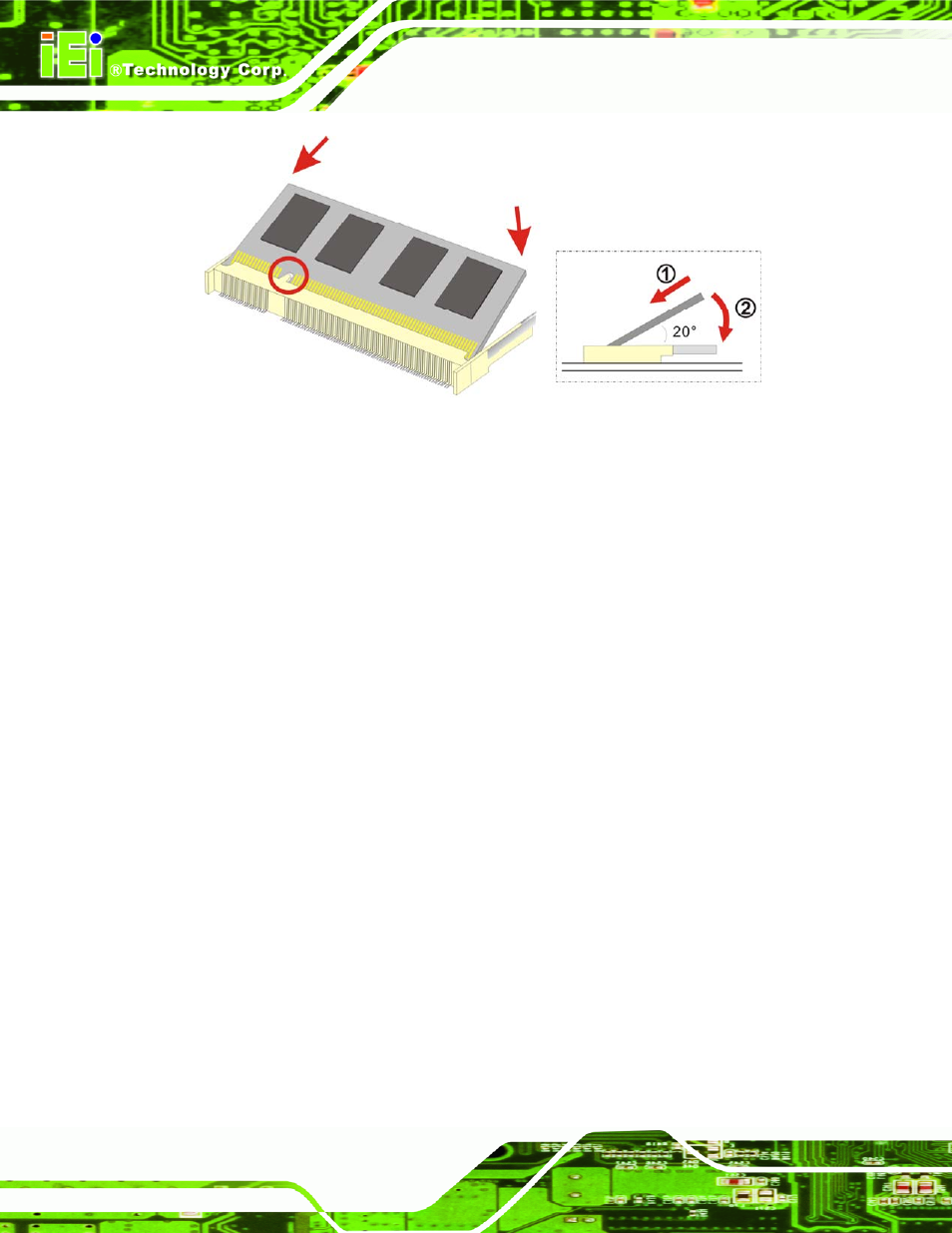

Figure 5-6: SODIMM Installation

Step 13:

Locate the SODIMM socket. Place the NANO-9452 on an anti-static pad with

the solder side facing up.

Step 14:

Align the SODIMM with the socket. The SODIMM must be oriented in such a

way that the notch in the middle of the SODIMM must be aligned with the plastic

bridge in the socket.

Step 15:

Insert the SODIMM. Push the SODIMM chip into the socket at an angle. (See

Figure 5-6)

Step 16:

Open the SODIMM socket arms. Gently pull the arms of the SODIMM socket

out and push the rear of the SODIMM down. (See Figure 5-6)

Step 17:

Secure the SODIMM. Release the arms on the SODIMM socket. They clip into

place and secure the SODIMM in the socket.
