NANO-9452 EPIC Motherboard

Page 36

An optional module can be connected to the 10-pin audio connector to provide the system

with a high quality AC’97 or Azalia compatible codec that provides a complete integrated

audio solution.

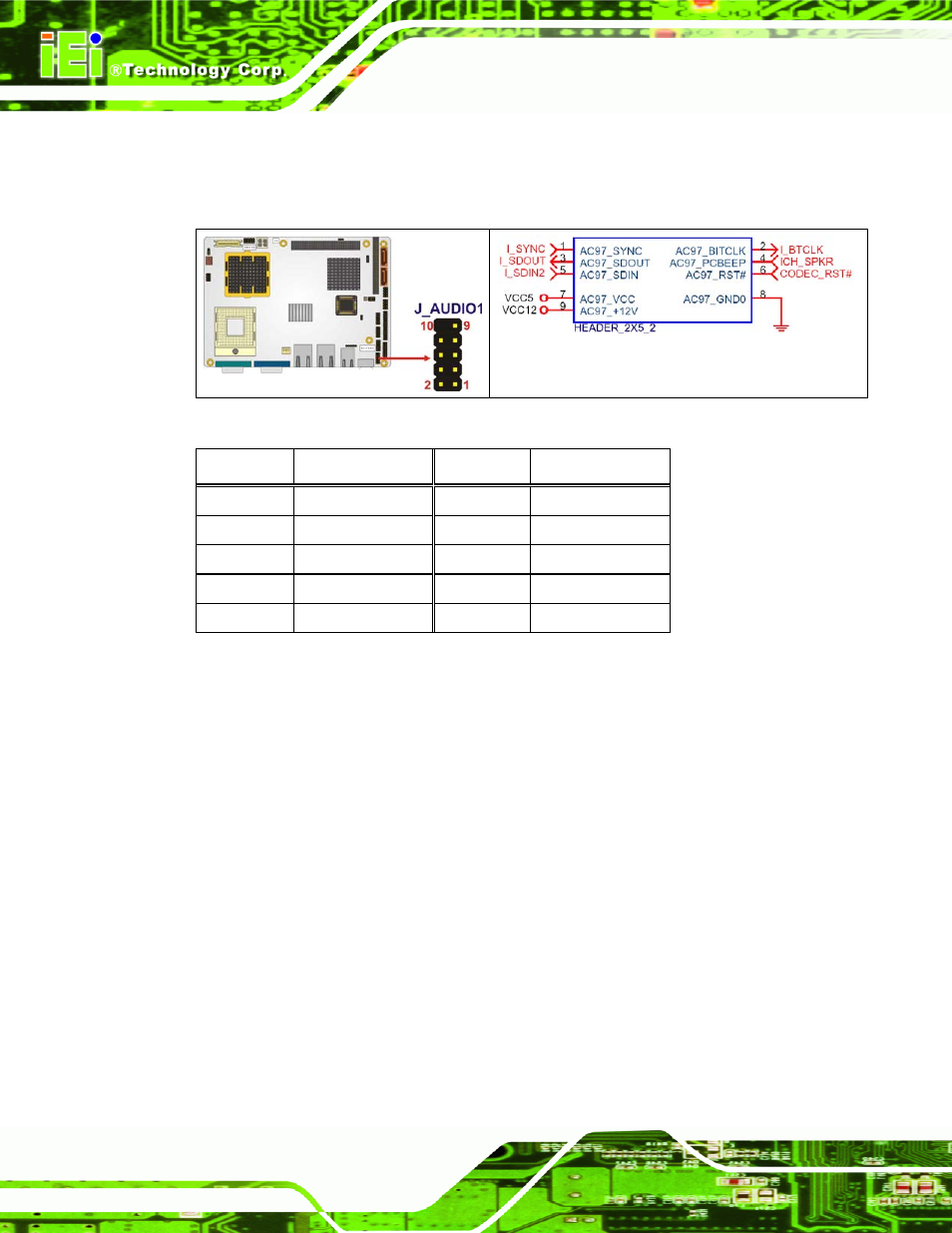

Figure 4-6: Audio Connector Pinouts (10-pin)

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 AC97_SYNC

2 AC97_BITCLK

3 AC97_SDOUT

4 AC97_PCBEEP

5 AC97_SDIN

6 AC97_RST#

7 AC97_VCC

8 AC97_GND

9 AC97_12V

Table 4-6: Audio Connector Pinouts (10-pin)

4.2.5 Compact Flash Socket

CN Label:

CF1 (solder side)

CN Type:

50-pin header (2x25)

CN Location:

See Figure 4-7

CN Pinouts:

See Table 4-7

A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the

NANO-9452.
