NANO-9452 EPIC Motherboard

Page 34

PIN NO.

DESCRIPTION

1 GND

2 GND

3 +12V

4 +12V

Table 4-3: +12V ATX Power Connector Pinouts

4.2.2 5 V ATX Power Supply Connector

CN Label:

CN3

CN Type:

2-pin Wafer (1 x 2)

CN Location:

See Figure 4-4

CN Pinouts:

See Table 4-4

The 2-pin 5 V power is for a SATA drive.

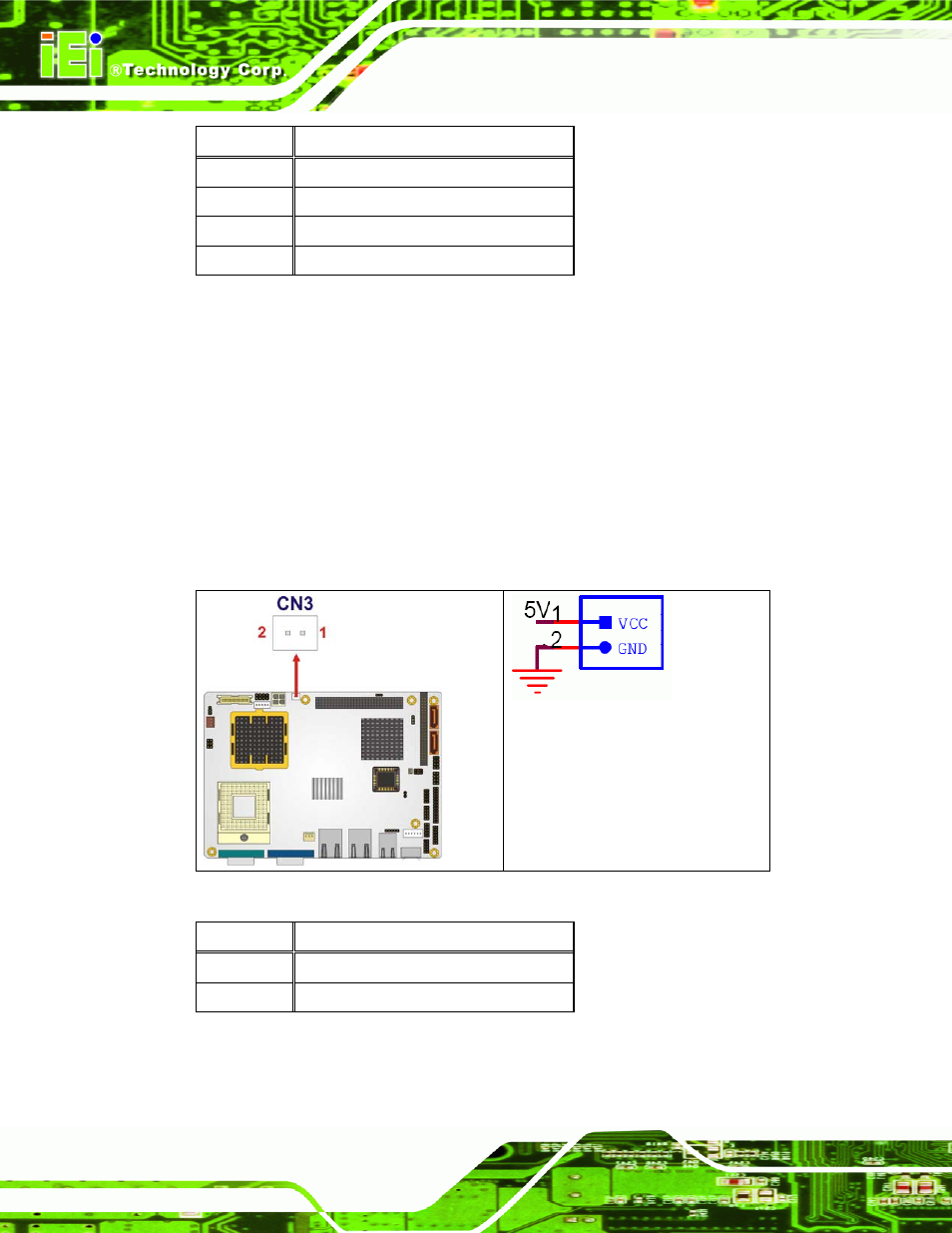

Figure 4-4: +5V ATX Power Connector Location

PIN NO.

DESCRIPTION

1 5

V

2 GND

Table 4-4: +5V ATX Power Connector Pinouts
