Figure 4-15: mini pcie connector pinout locations – IEI Integration NANO-9452 v1.12 User Manual
Page 65
NANO-9452 EPIC Motherboard
Page 47
CN Type:
26-pin box header
CN Location:
See
CN Pinouts:
See
The 52-pin mini PCIe socket supports the latest PCIe extension cards such as wireless
LAN cards and other compatible devices.

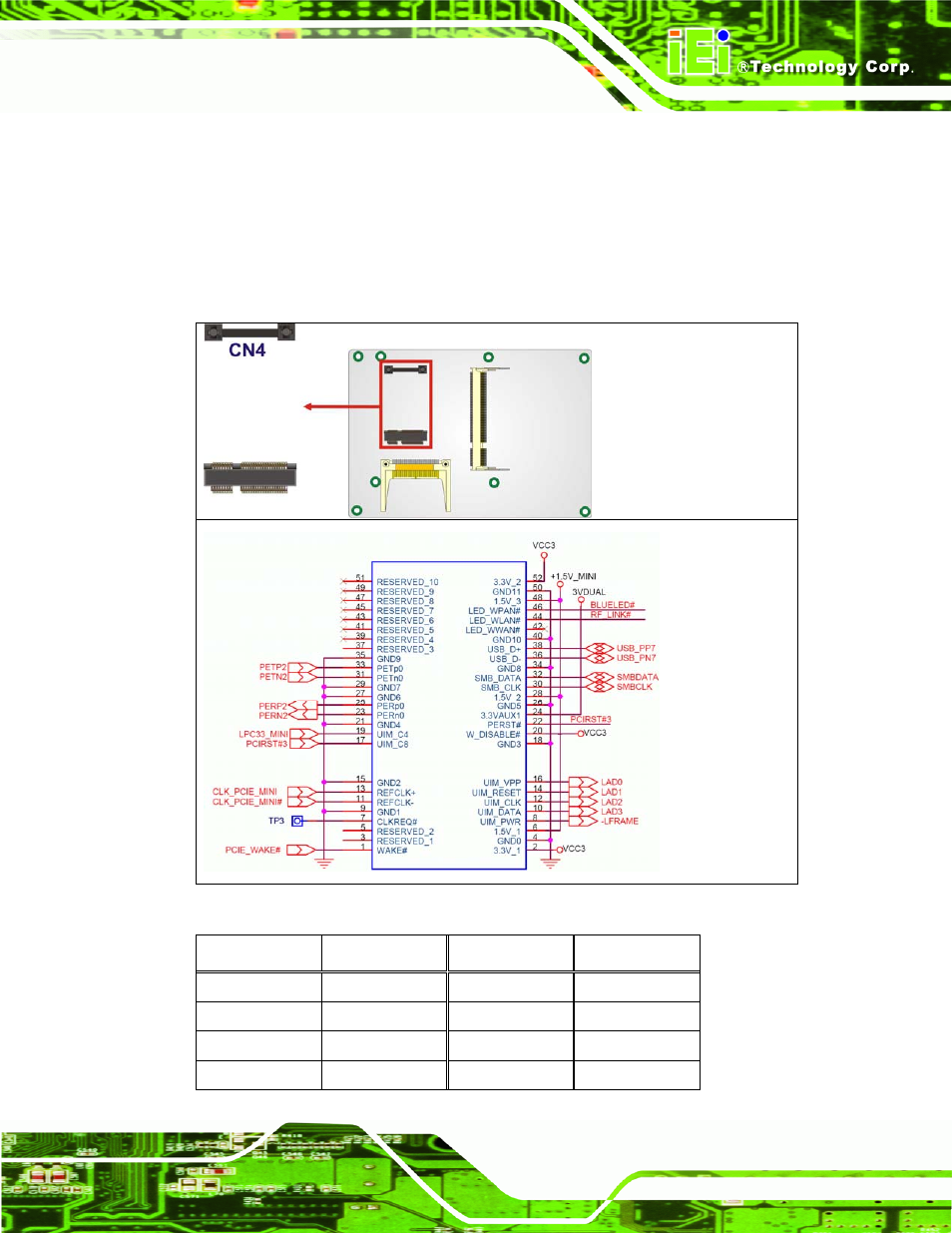

Figure 4-15: Mini PCIe Connector Pinout Locations
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1 PCIE_WAKE#
2 VCC3
3 N/C
4 GND
5 N/C
6 1.5V
7 CLKREQ#
8 LFRAME#
