NANO-9452 EPIC Motherboard
Page 88
5.7.1 VGA Monitor Connection
The NANO-9452 has a single female DB-15 connector on the external peripheral interface
panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor
to the NANO-9452, please follow the instructions below.
Step 5: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 6: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 7: Insert the VGA connector . Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
NANO-9452. See Figure 5-19.

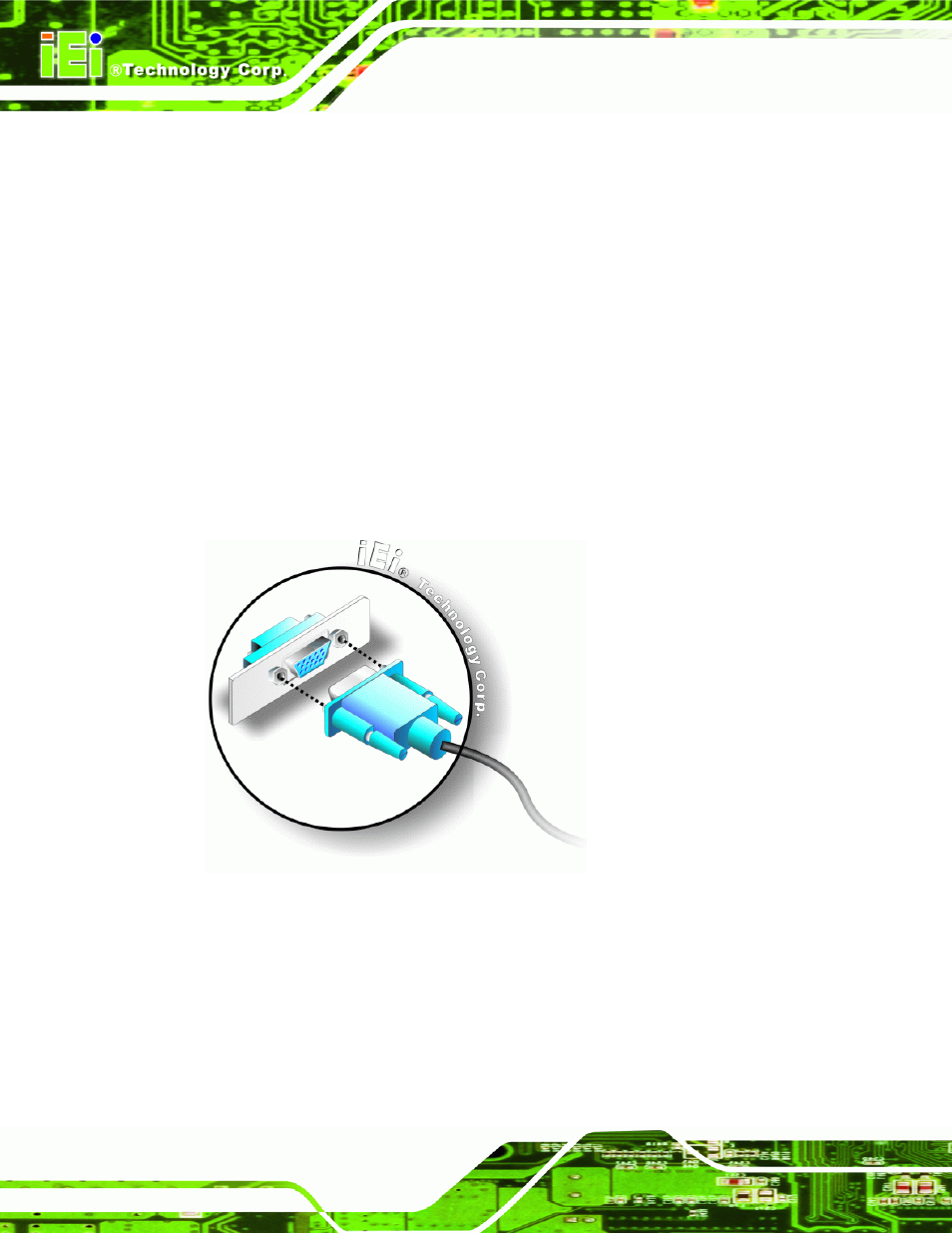

Figure 5-19: VGA Connector
Step 8: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector. Step 0:
