NANO-9452 EPIC Motherboard

Page 33

Connector

Type

Label

VGA port connector

Female DB-15

VGA1

Table 4-2: Rear Panel Connectors

4.2 Internal Peripheral Connectors

Internal peripheral connectors are found on the motherboard and are only accessible

when the motherboard is outside of the chassis. This section has complete descriptions of

all the internal, peripheral connectors on the NANO-9452.

4.2.1 +12V ATX Power Supply Connector

CN Label:

CN1 and CN2

CN Type:

4-pin ATX power connector (1x4)

CN Location:

See Figure 4-3

CN Pinouts:

See Table 4-3

The 4-pin +12V ATX power supply connector is connected to a +12V ATX power supply.

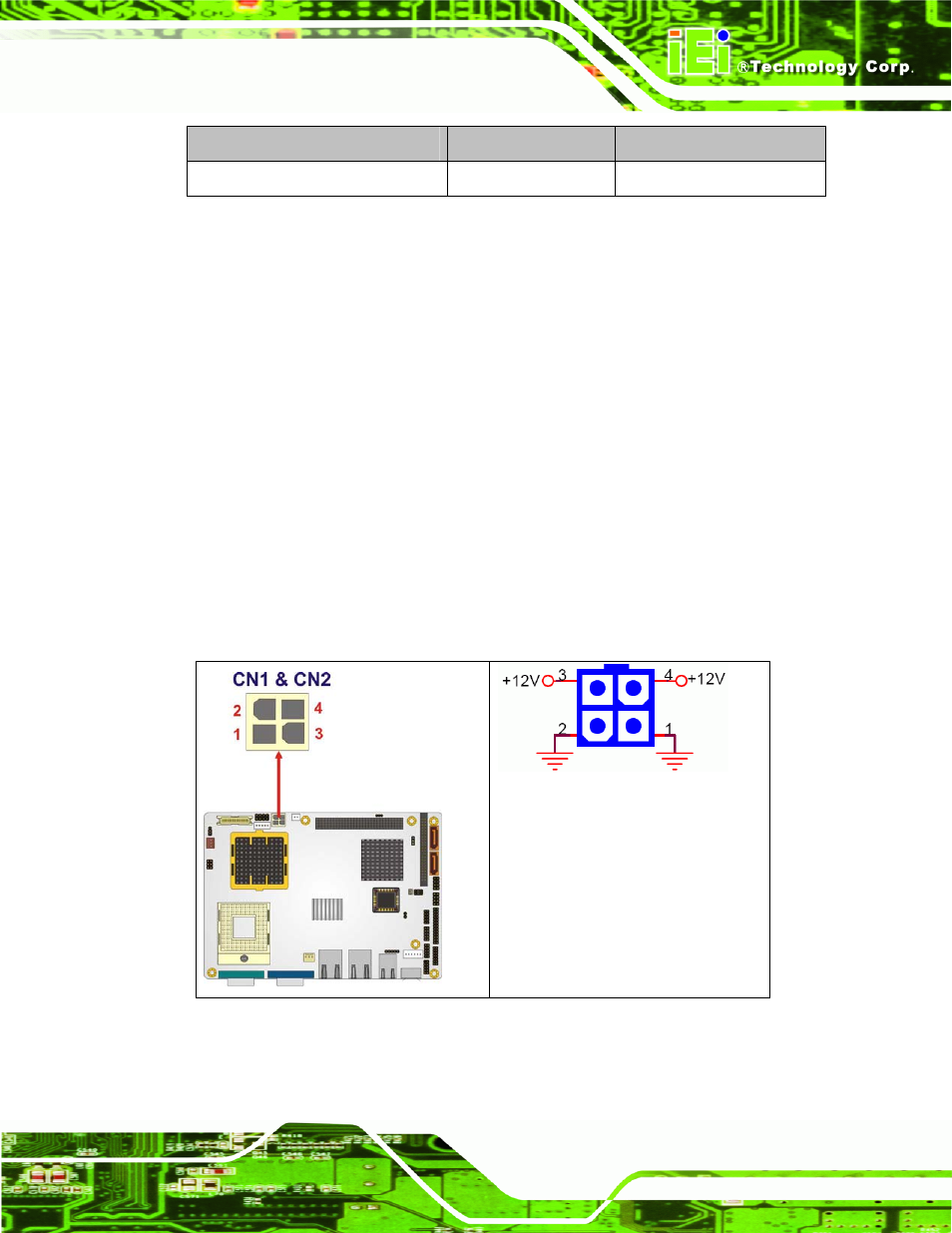

Figure 4-3: +12V ATX Power Connector Location
