NANO-9452 EPIC Motherboard
Page 40
PIN NO. DESCRIPTION
1 Fan Speed Detect
2 +12V
3 GND
Table 4-9: +12V Fan Connector Pinouts
4.2.8 Front Panel Connector (8-pin)
CN Label: F_PANEL1
CN Type: 8-pin header (2x4)
CN Location: See Figure 4-10
CN Pinouts: See Table 4-10
The front panel connector connects to external switches and indicators to monitor and
controls the motherboard. These indicators and switches include:
Power button
Reset button
Power LED
HDD LED

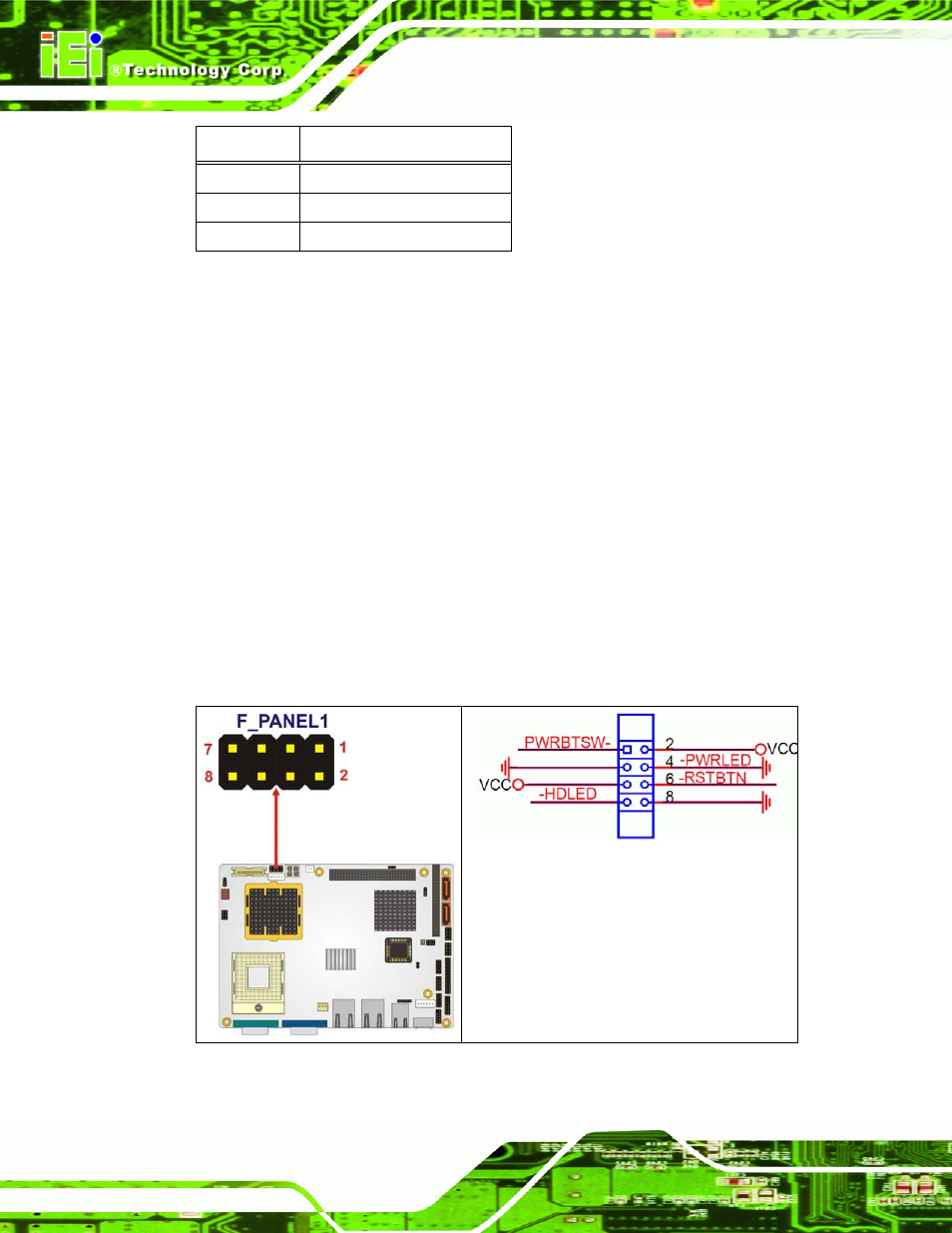

Figure 4-10: Front Panel Connector Pinout Locations
