NANO-9452 EPIC Motherboard

Page 42

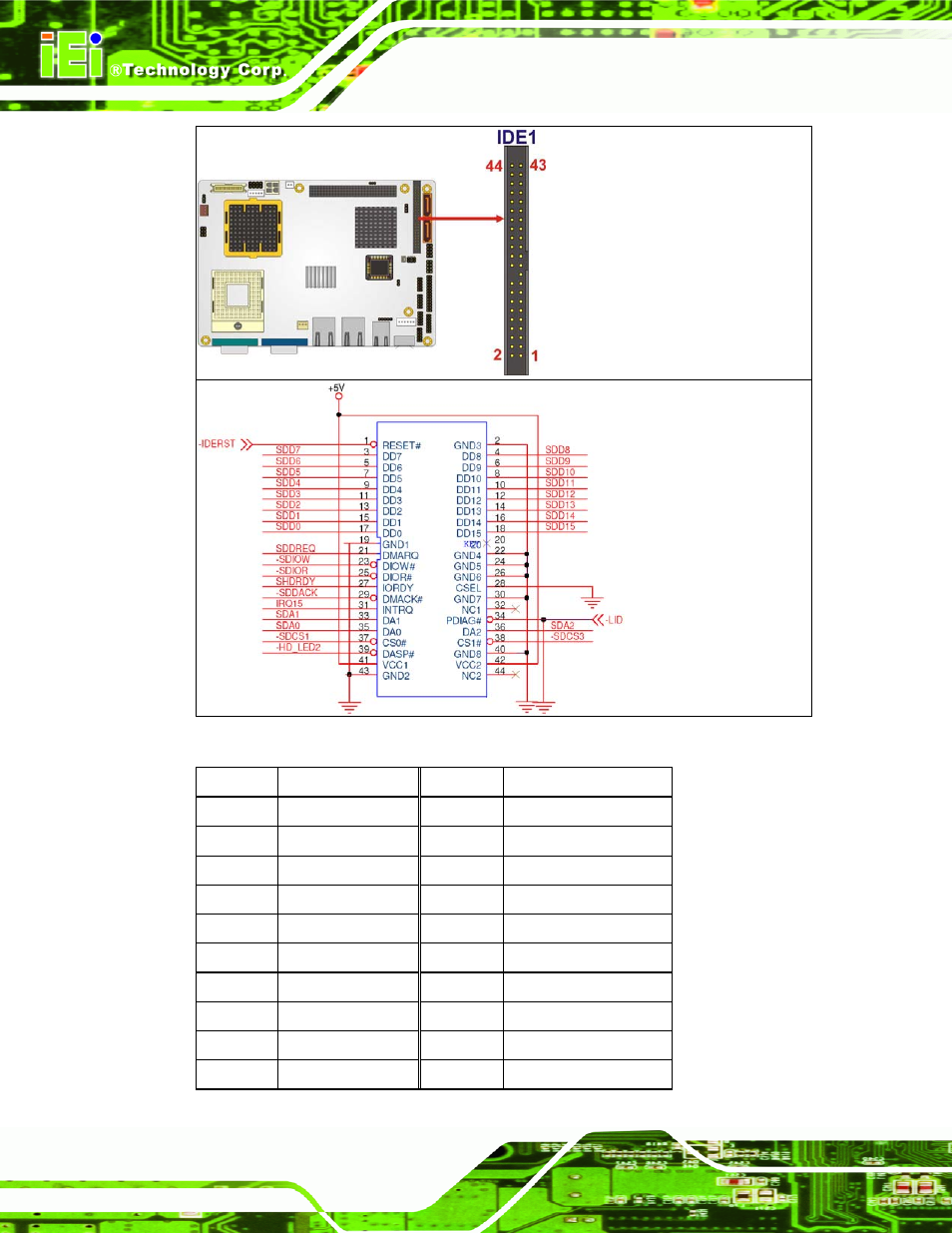

Figure 4-11: Secondary IDE Device Connector Locations

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 RESET#

2 GROUND

3

DATA 7

4

DATA 8

5

DATA 6

6

DATA 9

7

DATA 5

8

DATA 10

9

DATA 4

10

DATA 11

11

DATA 3

12

DATA 12

13

DATA 2

14

DATA 13

15

DATA 1

16

DATA 14

17

DATA 0

18

DATA 15

19 GROUND

20 N/C
