NANO-9452 EPIC Motherboard

Page 87

Step 4:

Connect the SATA power cable. Connect the SATA power connector to the

back of the SATA drive. See Figure 5-18.

Step 4:

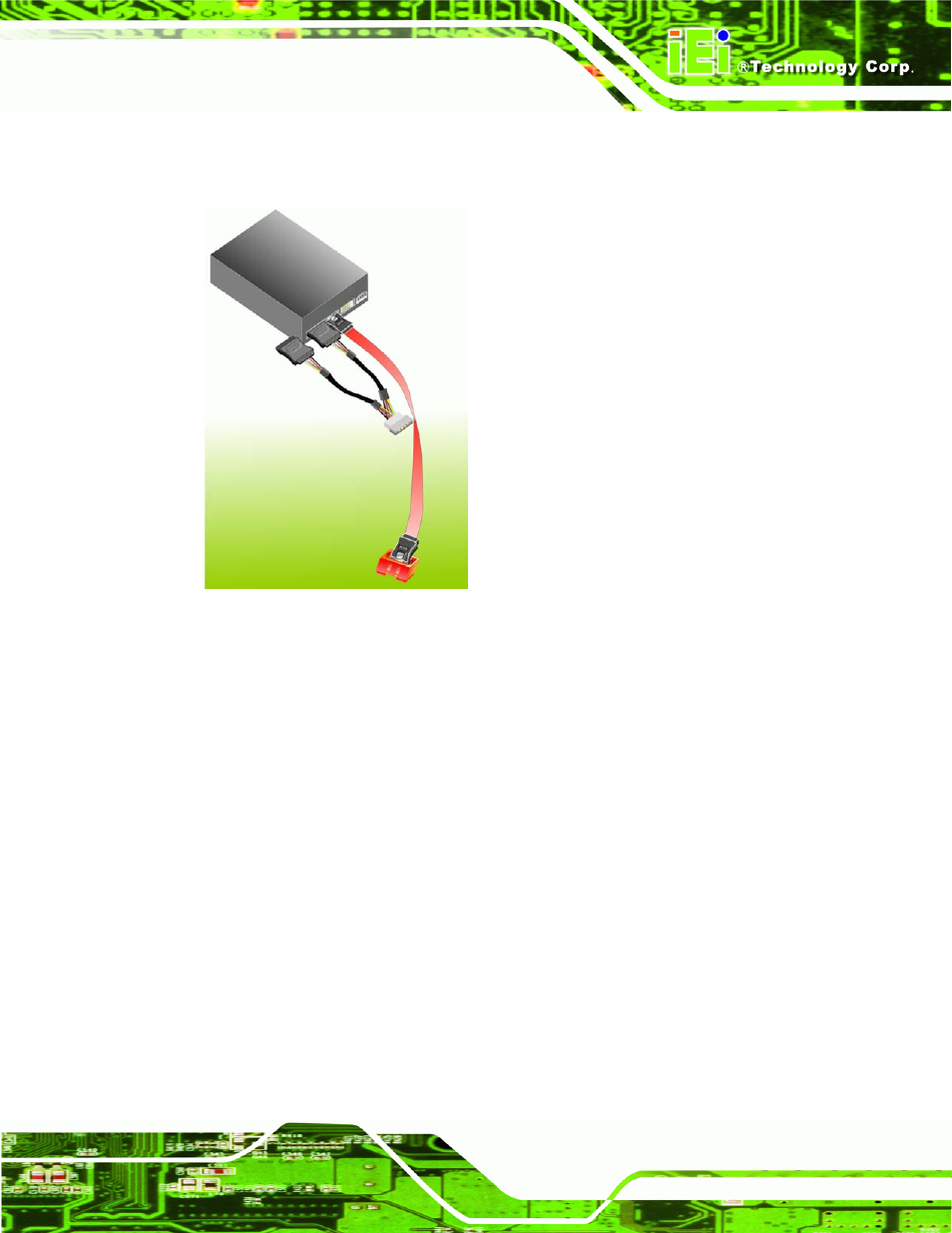

Figure 5-18: SATA Power Drive Connection

5.7 External Peripheral Interface Connection

The following external peripheral devices can be connected to the external peripheral

interface connectors.

Serial port devices

VGA

monitors

Parallel port devices

RJ-45 Ethernet cable connectors

Mouse

and

keyboard

To install these devices, connect the corresponding cable connector from the actual

device to the corresponding NANO-9452 external peripheral interface connector making

sure the pins are properly aligned.
