NANO-9452 EPIC Motherboard

Page 57

CN Location:

See Figure 4-22

CN Pinouts:

See Table 4-22

The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0

ports. Each USB connector can support two USB devices.. Additional external USB ports

are found on the rear panel. The USB ports are used for I/O bus expansion.

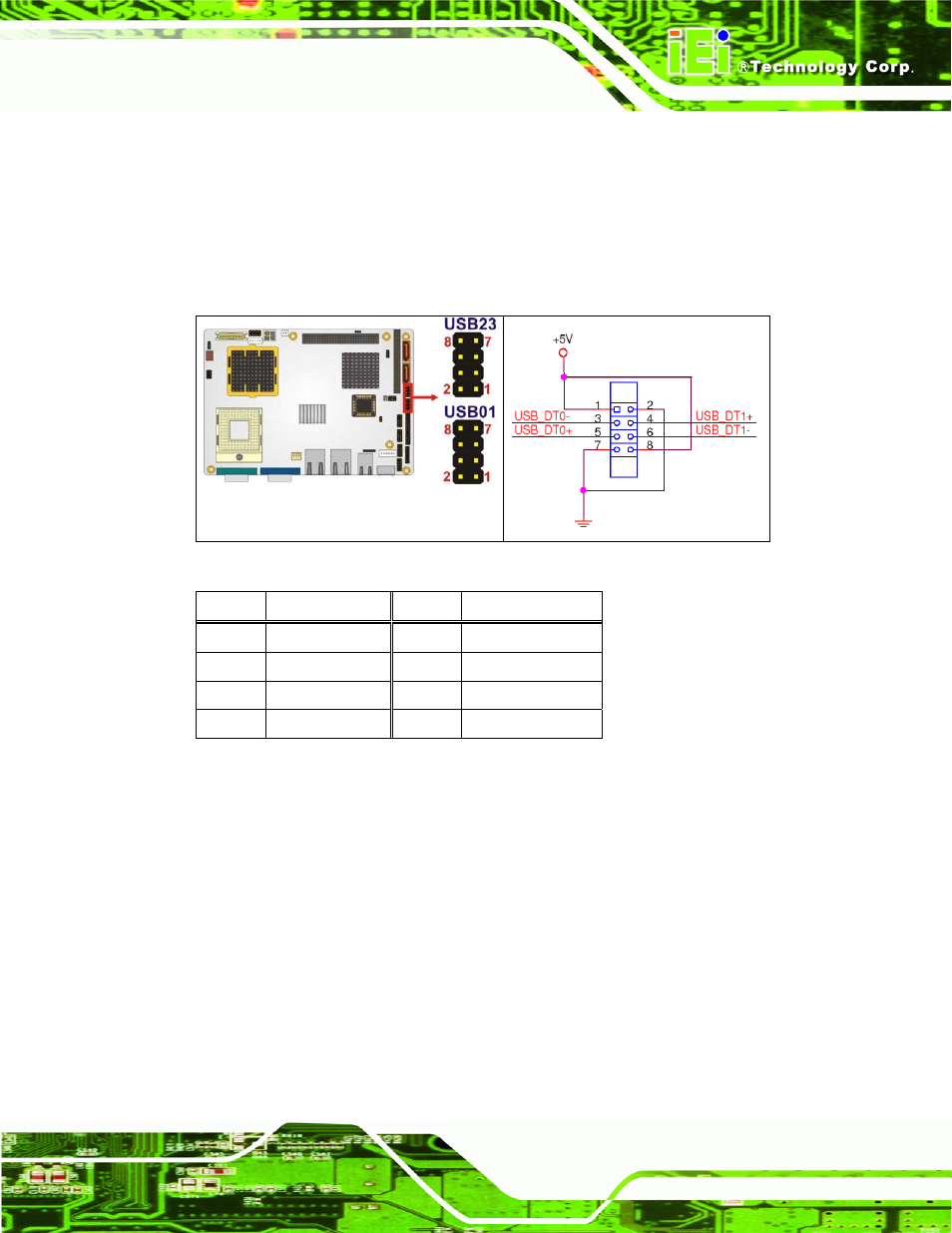

Figure 4-22: USB Connector Pinout Locations

PIN NO. DESCRIPTION PIN NO.

DESCRIPTION

1 VCC

2 GND

3 DATAN-

4 DATAM+

5 DATAN+ 6 DATAM-

7 GND

8 VCC

Table 4-22: USB Port Connector Pinouts

4.3 External Peripheral Interface Connector Panel

Figure 4-23 shows the NANO-9452 rear panel. The NANO-9452 rear panel consists of

two RJ-45 Ethernet connectors, a PS/2 keyboard connector a USB port and a VGA

connector. These connectors are accessible when the NANO-9452 is installed in a

chassis.
