IMB-H610 Mic ro -ATX Mo th e rb o a rd
P a g e 66

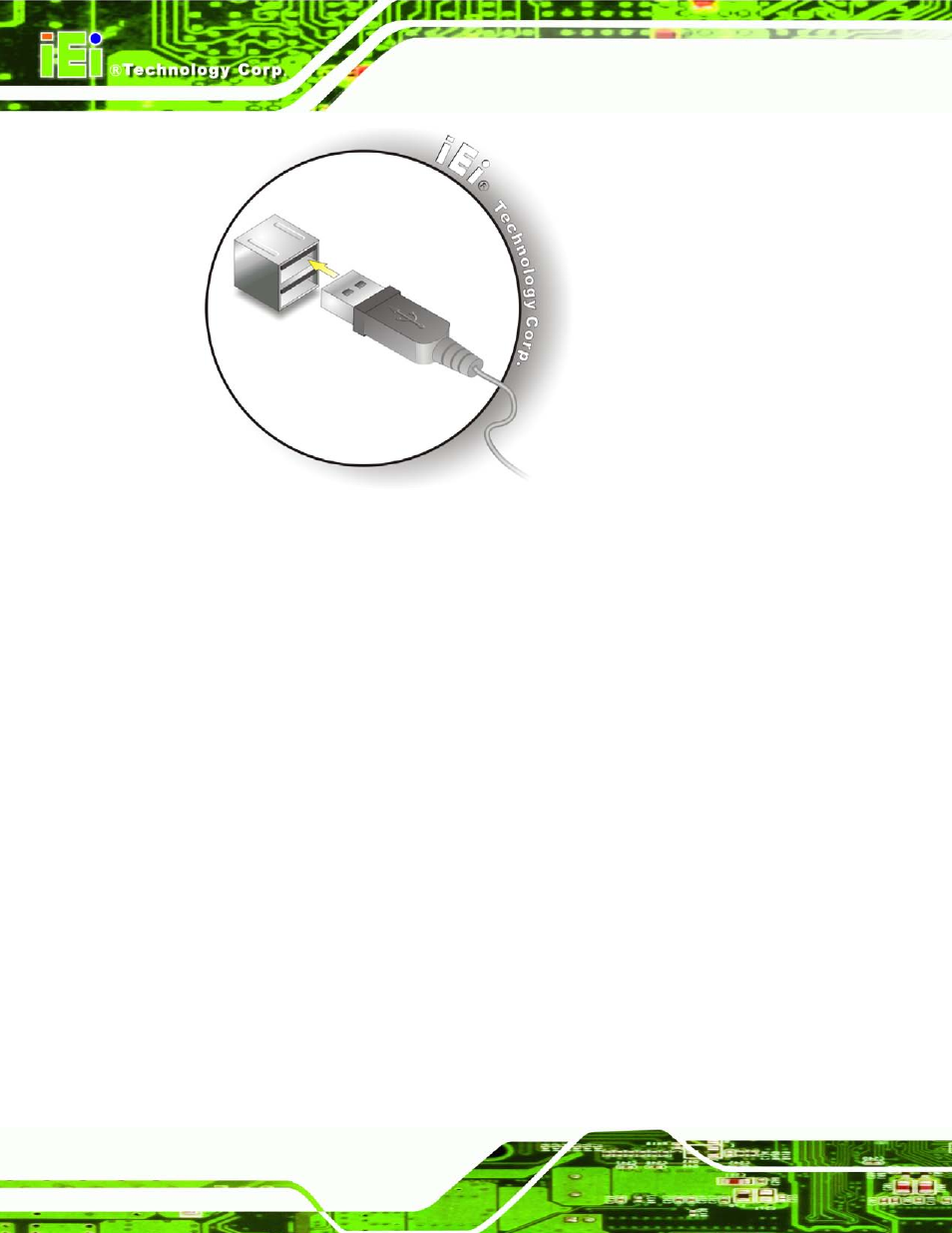

Figure 4-19: USB Connector
4.6.7 VGA Mo n ito r Co n n e c tio n
The IMB-H610 has a single female DB-15 connector on the external peripheral interface
panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor
to the IMB-H610, please follow the instructions below.
S te p 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
S te p 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
S te p 3: Insert the VGA connector . Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
IMB-H610. See Figure 4-20.
