IEI Integration IMB-H610A - Manual (Page 65)

IMB-H610 Mic ro -ATX Mo th e rb o a rd
P a g e 50
S te p 1: Disengage the load lever by pressing the lever down and slightly outwards to
clear the retention tab. Fully open the lever. See Figure 4-1.

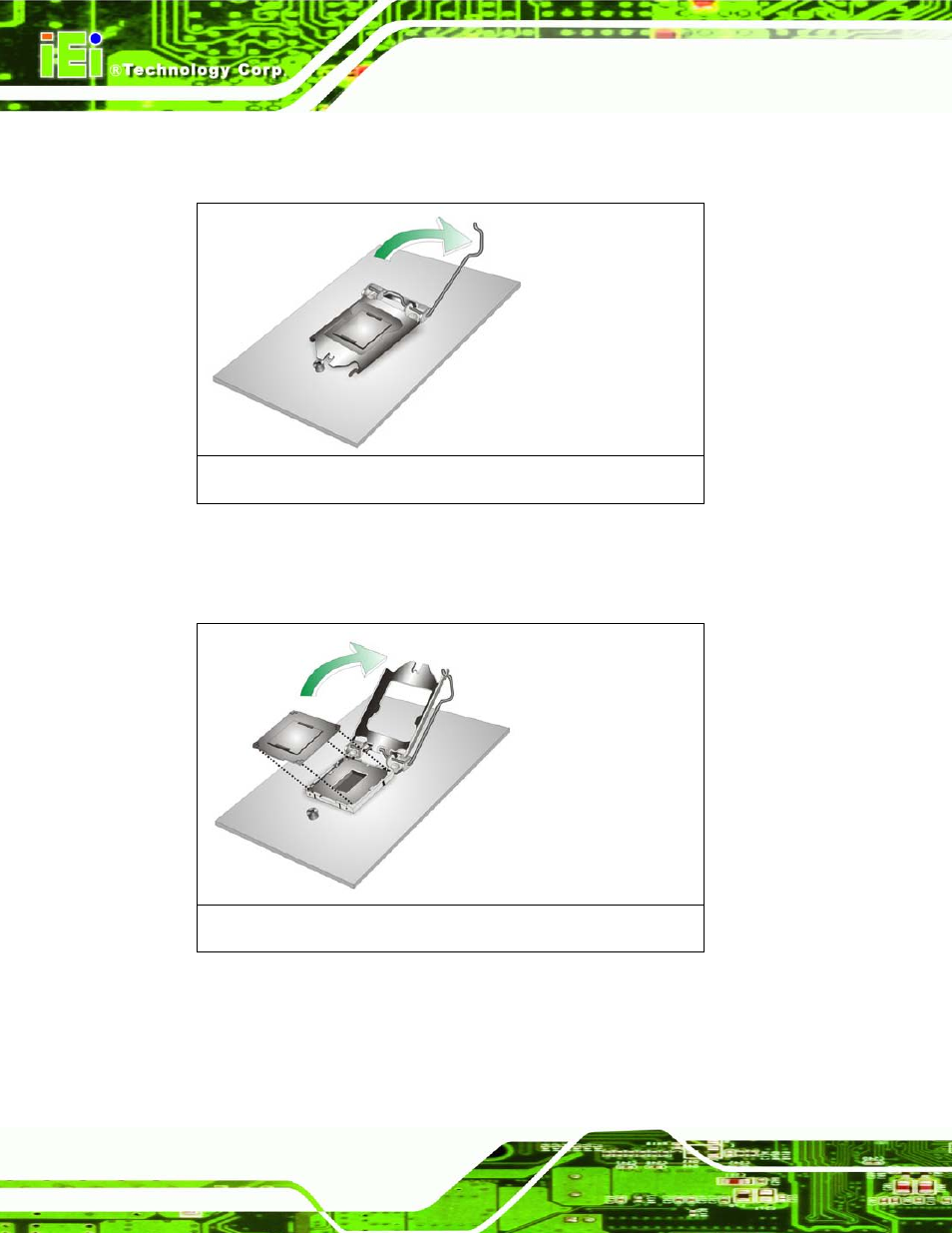

Figure 4-1: Disengage the CPU Socket Load Lever
S te p 2: Open the socket and remove the protective cover. The black protective
cover can be removed by pulling up on the tab labeled “Remove”. See
Figure 4-2.
Figure 4-2: Remove Protective Cover
S te p 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the
socket contacts are free of foreign material. If any debris is found, remove it with
compressed air.
