IMB-H610 Mic ro -ATX Mo th e rb o a rd
P a g e 56
Setting Description
Closed ATX Mode (Default)
Open AT Mode
Table 4-2: AT/ATX Power Select Jumper Settings

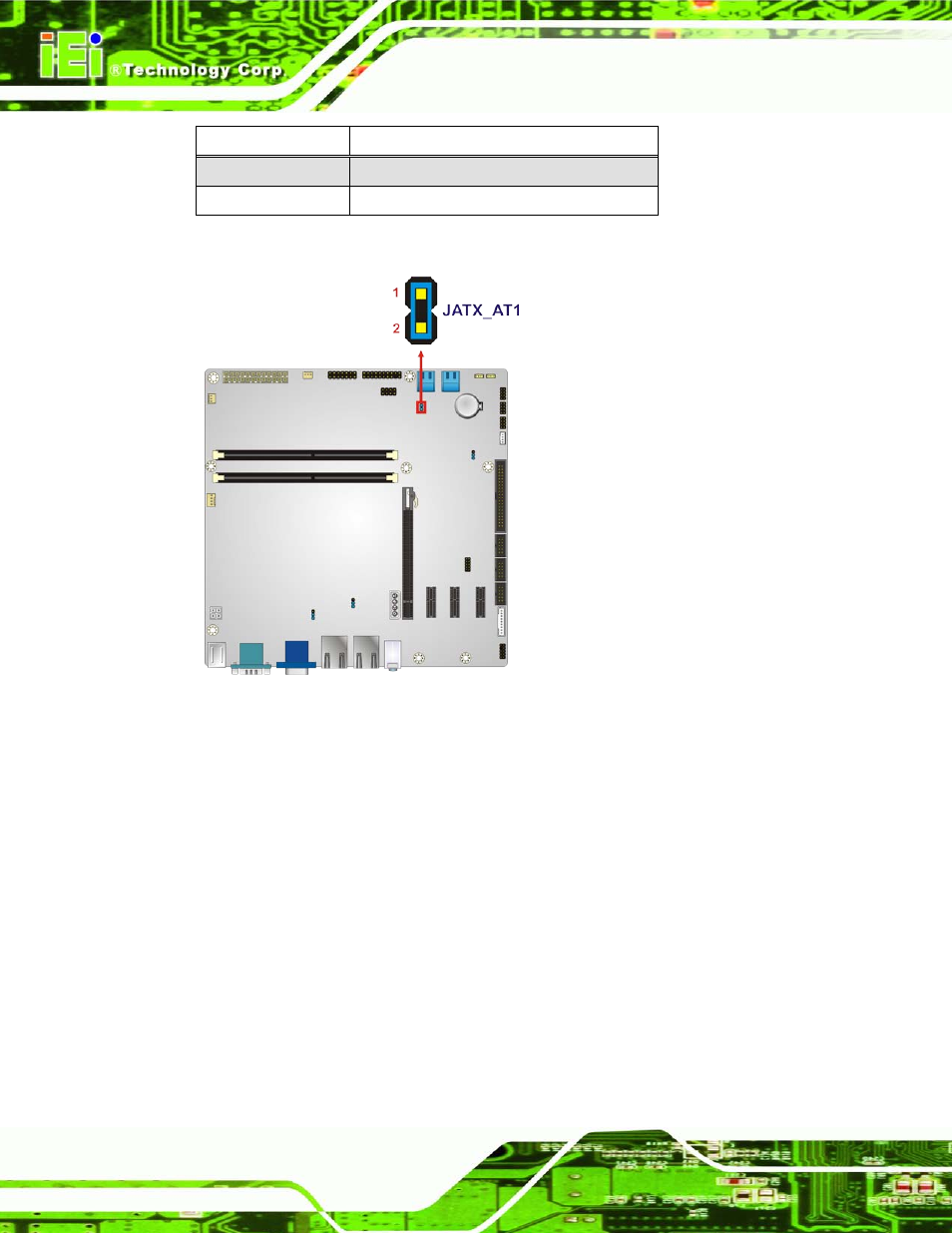

Figure 4-9: AT/ATX Power Select Jumper Location
4.4.2 Cle a r CMOS J u m p e r
J u m p e r La b e l: J _CMOS 2
J u m p e r Typ e : 3-pin header
J u m p e r S e ttin g s : See Table 4-3
J u m p e r Lo c a tio n : See Figure 4-10
If the IMB-H610 fails to boot due to improper BIOS settings, the clear CMOS jumper clears
the CMOS data and resets the system BIOS information. To do this, use the jumper cap to
close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.
