IMB-H610 Mic ro -ATX Mo th e rb o a rd

P a g e 32

Each of these connectors provides RS-232 connections.

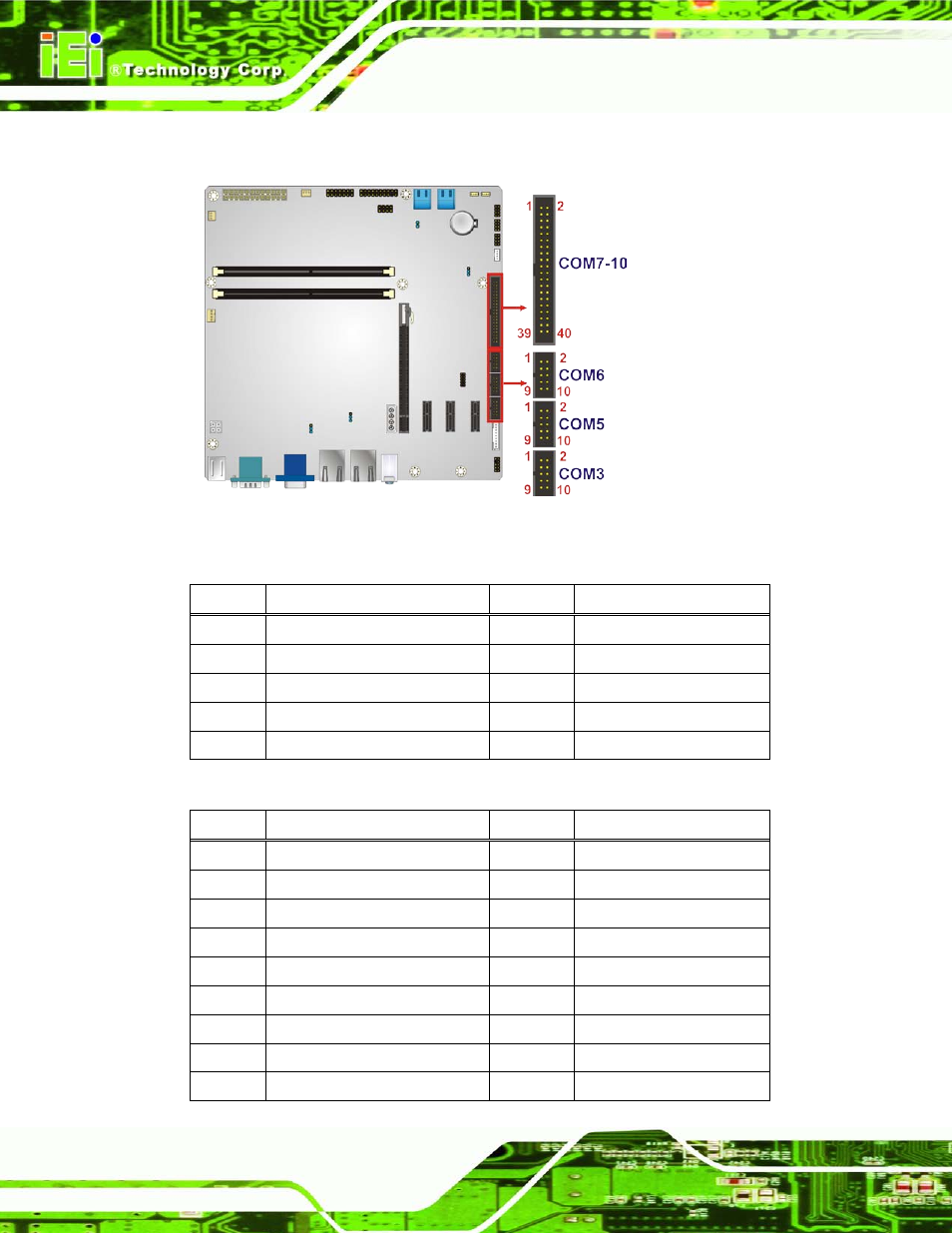

Figure 3-17: Serial Port Connector Locations

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

DCD3/5/6

2

DSR3/5/6

3

RXD3/5/6

4

RTS3/5/6

5

TXD3/5/6

6

CTS3/5/6

7

DTR3/5/6

8

RI3/5/6

9

GND

10

GND

Table 3-14: Serial Port Connector Pinouts (COM3, COM5, COM6)

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

DCD7

2

DSR7

3

RXD7

4

RTS7

5

TXD7

6

CTS7

7

DTR7

8

RI7

9

GND

10

GND

11

DCD8

12

DSR8

13

RXD8

14

RTS8

15

TXD8

16

CTS8

17

DTR8

18

RI8
