IMB-H610 Mic ro -ATX Mo th e rb o a rd
P a g e 43
3.3.4 RS -232 S e ria l P o rt Co n n e c to rs
CN La b e l: COM12
CN Typ e : DB-9 Male
CN Lo c a tio n : See Figure 3-23
CN P in o u ts : See Table 3-28
The serial port connects to a RS-232 serial communications device.

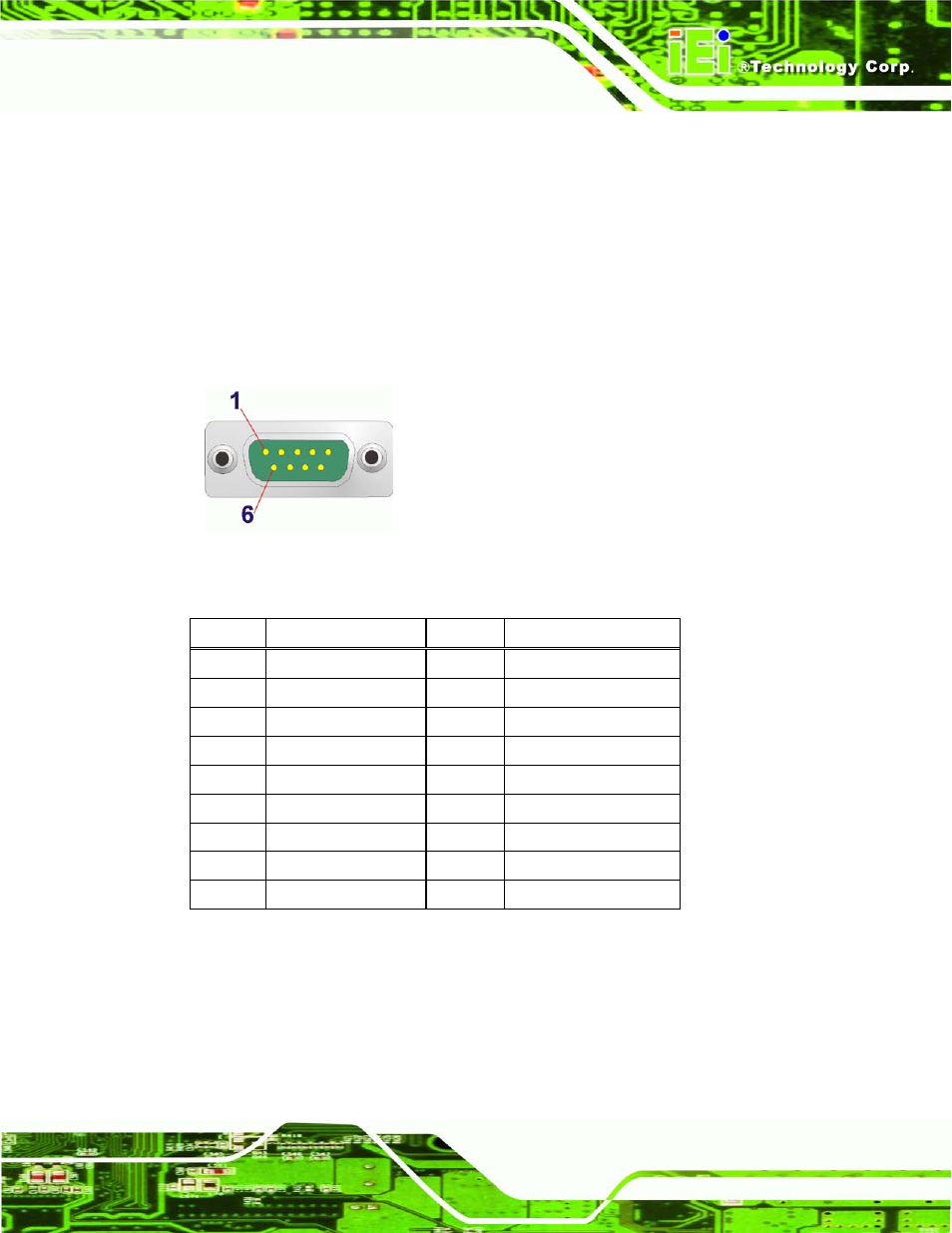

Figure 3-26: RS-232 Serial Port Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND 6 DSR1
7 RTS1 8 CTS1
9 RI1 10 DCD2
11 RXD2 12 TXD2
13 DTR2 14 GND
15 DSR2 16 RTS2
17 CTS2 18 RI2
Table 3-28: RS-232 Serial Port Connector Pinouts (COM1,COM2)
3.3.5 VGA a n d DVI Co n n e c to r
CN La b e l: DVI+CRT
CN Typ e : 15-pin Female (VGA) , 24-pin Female (DVI)
