CN P in o u ts : See Table 3-20, Table 3-21 and Table 3-22
The USB connectors connect to USB devices. Each pin header provides two USB ports.

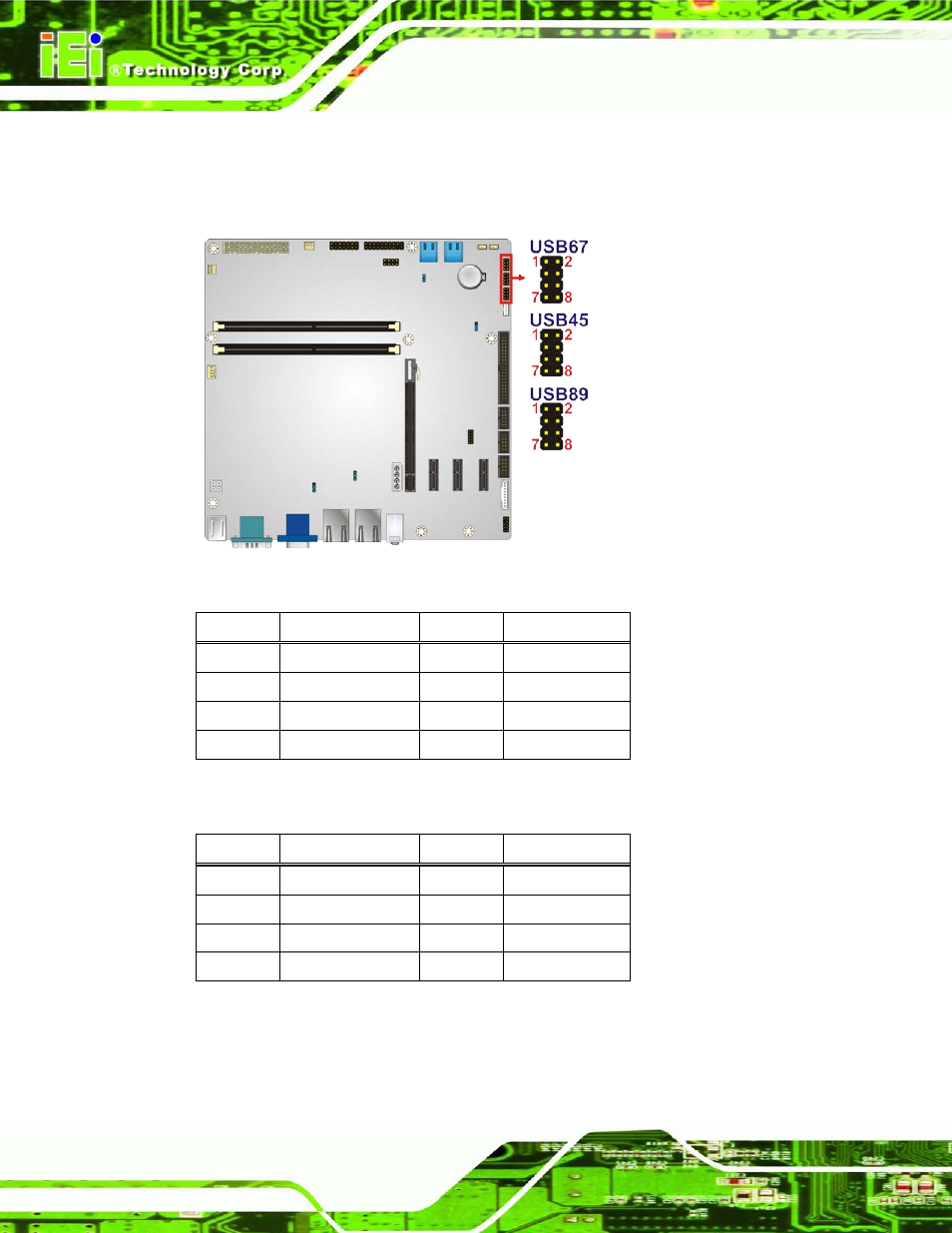

Figure 3-22: USB Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND
3 DATA4_N 4 DATA5_P
5 DATA4_P 6 DATA5_N
7 GND 8 VCC
Table 3-20: USB Port Connector Pinouts (USB45)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND
3 DATA0_N 4 DATA1_P
5 DATA0_P 6 DATA1_N
7 GND 8 VCC
Table 3-21: USB Port Connector Pinouts (USB67)
