IMB-H610 Mic ro -ATX Mo th e rb o a rd
P a g e 61
Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
Line Out port (Lime): Connects to a headphone or a speaker.
Microphone (Pink): Connects a microphone.

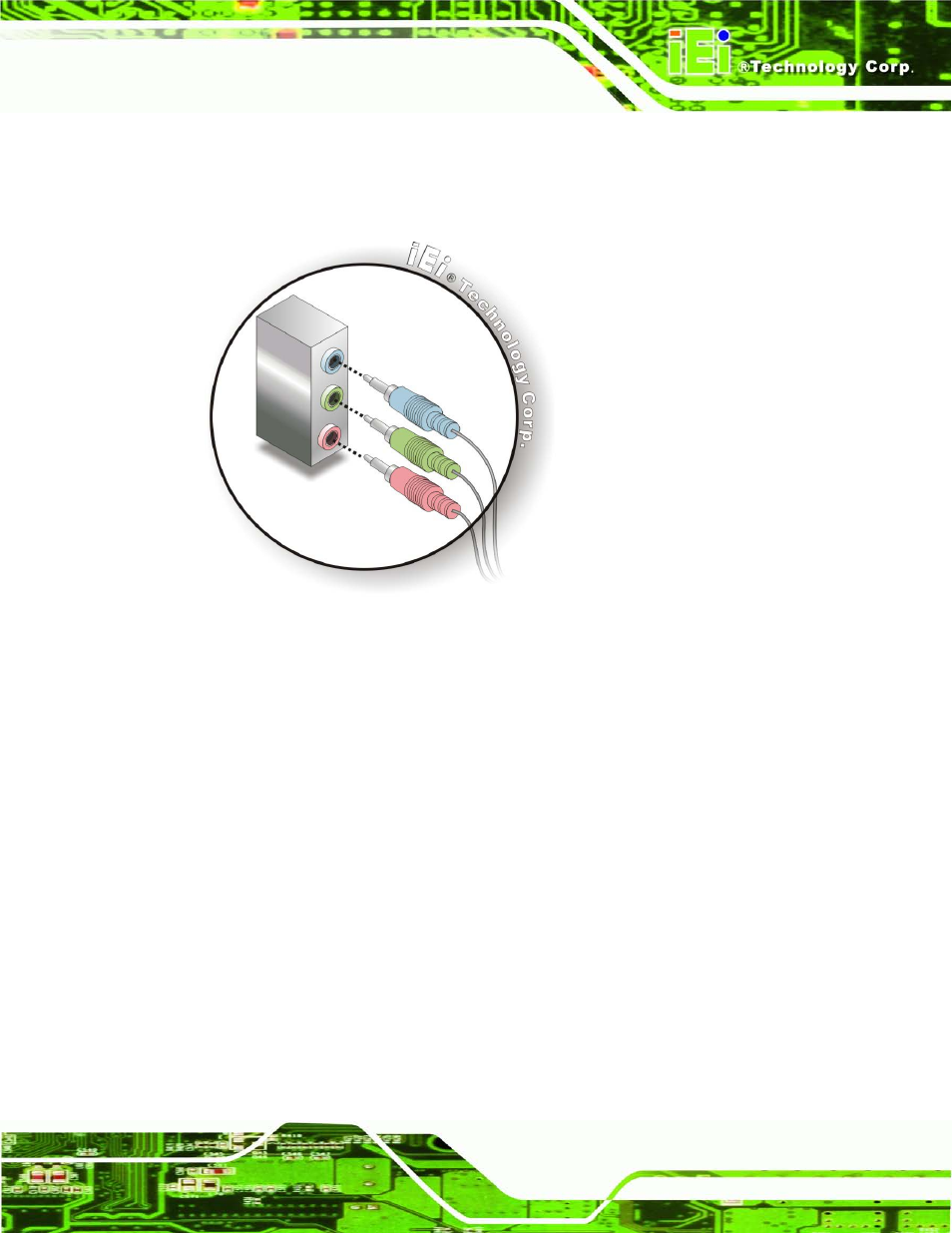

Figure 4-14: Audio Connector
S te p 3:
Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.
4.6.2 DVI Dis p la y De vic e Co n n e c tio n
The IMB-H610 has a single female DVI-I connector on the external peripheral interface
panel. The DVI-I connector is connected to a digital display device. To connect a digital
display device to the IMB-H610, please follow the instructions below.
S te p 1:
Locate the DVI-I connector. The location of the DVI-I connector is shown in
Chapter 3.
S te p 2:
Align the DVI-I connector. Align the male DVI-I connector on the digital display
device cable with the female DVI-I connector on the external peripheral
interface.
