HYPER-KBN

P a g e 44

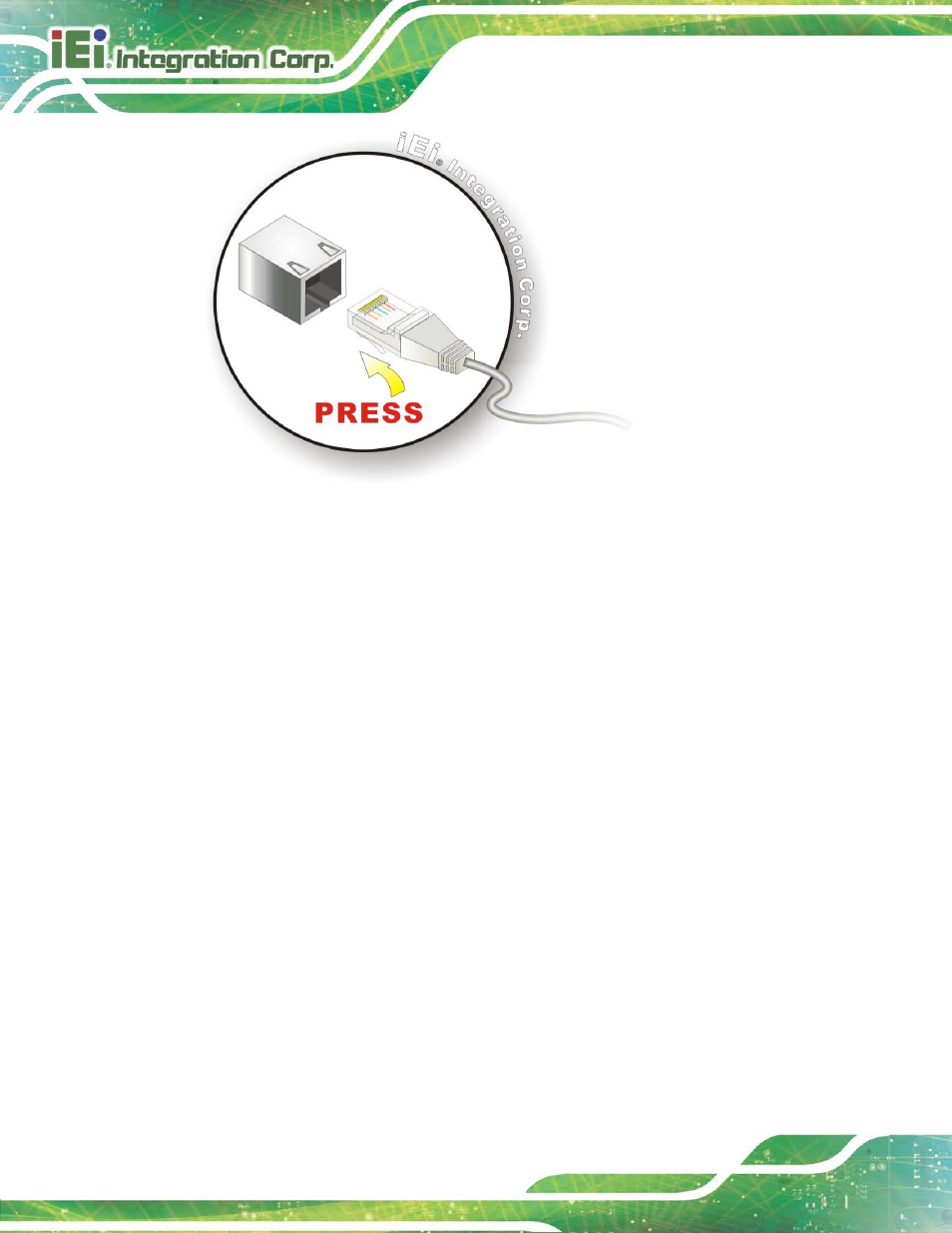

Figure 4-6: LAN Connection

S te p 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

4.5.3 US B Co n n e c tio n

The external USB Series "A" receptacle connectors provide easier and quicker access to

external USB devices. Follow the steps below to connect USB devices to the

HYPER-KBN.

S te p 1:

Locate the USB Series "A" receptacle connectors. The locations of the USB

Series "A" receptacle connectors are shown in Chapter 3.

S te p 2:

Insert a USB Series "A" plug.

Insert the USB Series "A" plug of a device into

the USB Series "A" receptacle on the external peripheral interface. See
