HYPER-KBN

P a g e 2

1.1 In tro d u c tio n

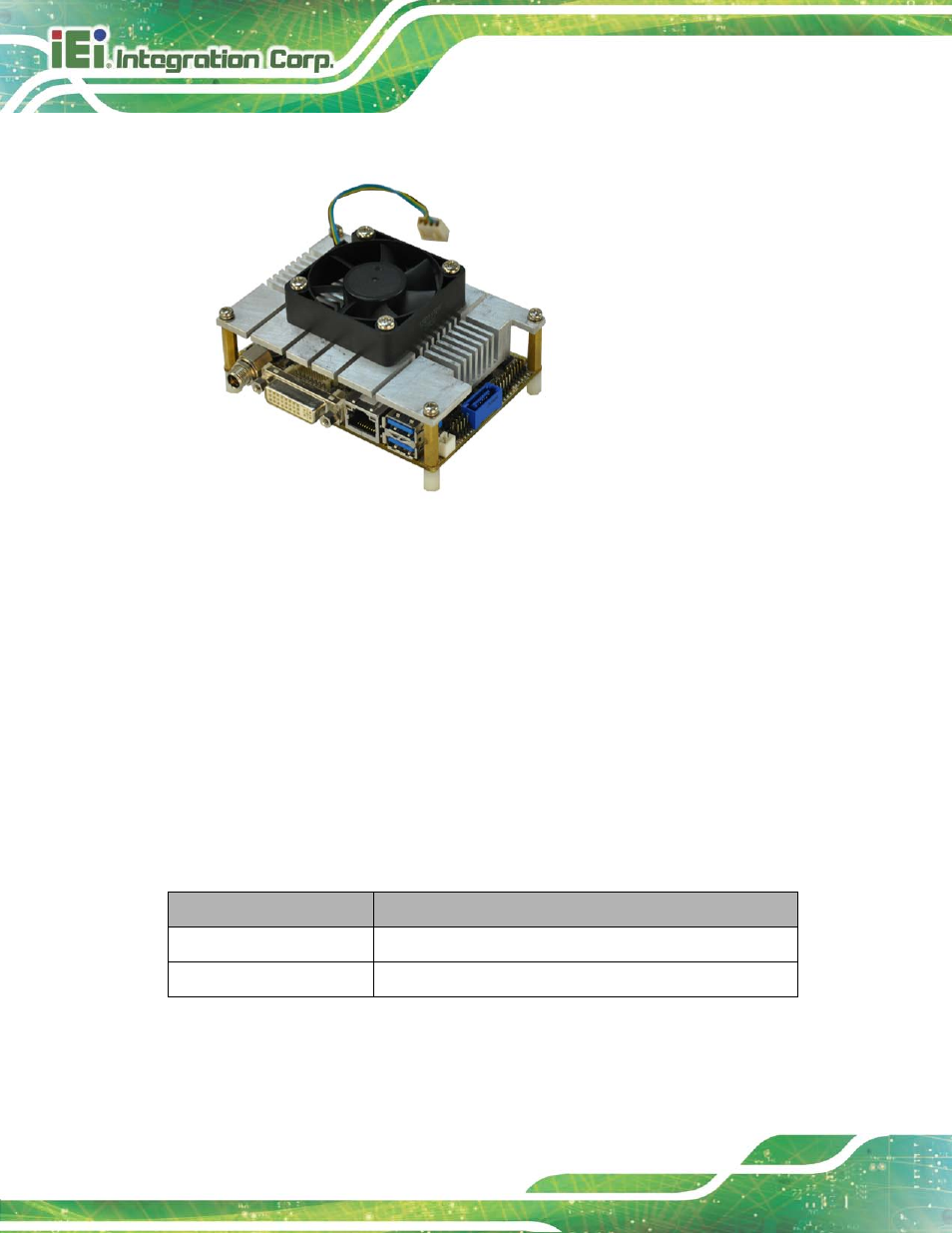

Figure 1-1: HYPER-KBN

The HYPER-KBN PICO-ITX motherboard is an AMD® G-Series SoC processor platform.

It supports one 1600/1333 MHz DDR3 SO-DIMM up to 8.0 GB.

The HYPER-KBN includes a LVDS connector and a DVI-I connector. Expansion and I/O

include two USB 3.0 connectors on the rear panel, two USB 2.0 connectors by pin header

and one SATA 6Gb/s connector. Serial device connectivity is provided by one internal

RS-232 connector. One RJ-45 Ethernet connector provides the system with smooth

connections to an external LAN.

1.2 Mo d e l Va ria tio n s

The model variations of the HYPER-KBN Series are listed below.

Mo d e l No .

S o C

HYPER-KBN-4151-R10

AMD® G-Series GX-415GA, 15W, 1.5GHz

HYPER-KBN-2101-R10

AMD® G-Series GX-210HA, 9W, 1.0GHz

Table 1-1: HYPER-KBN Model Variations
