HYPER-KBN
P a g e 33
CN P in o u ts : See Figure 3-22 and Table 3-20
The LAN connector connects to a local network.

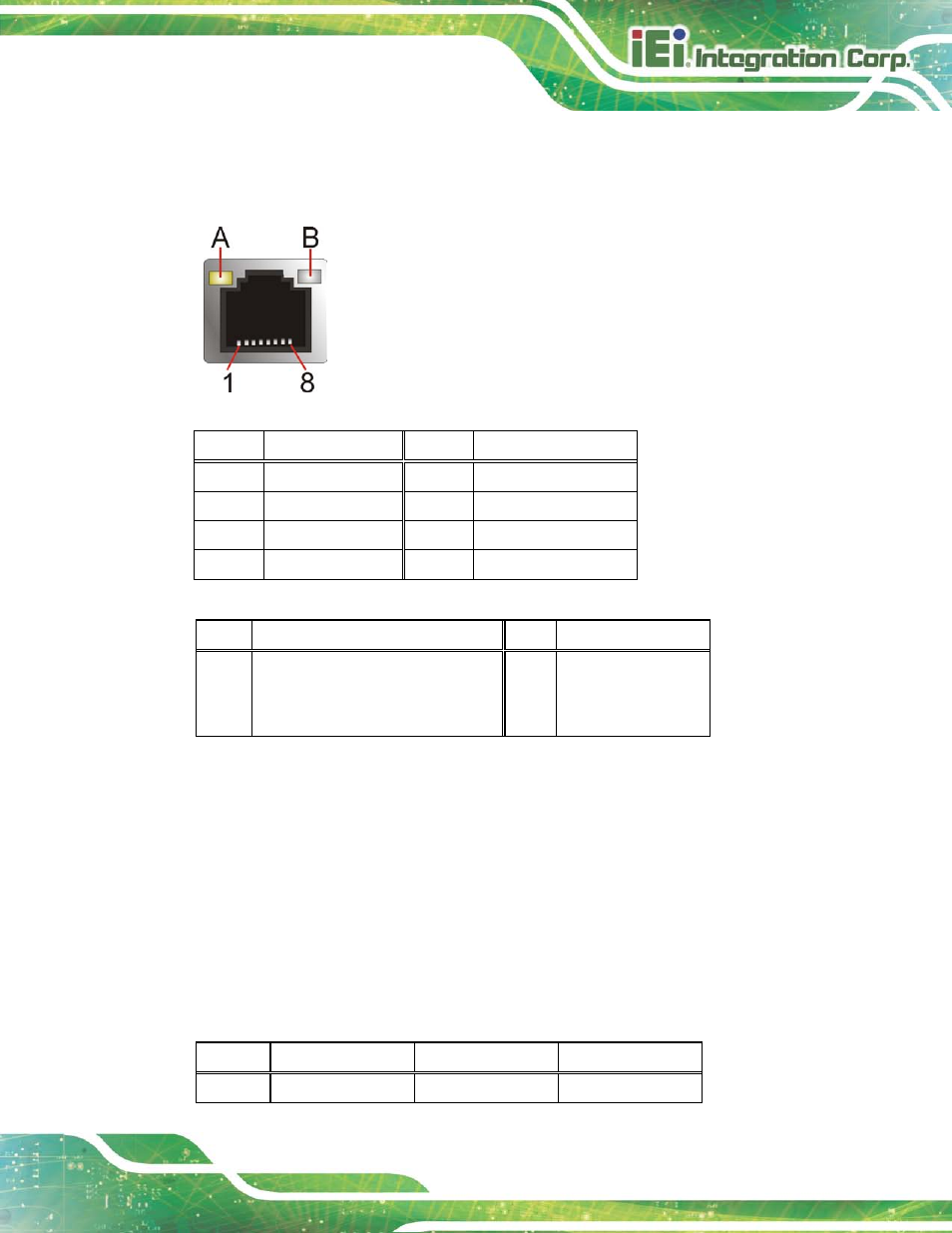

Figure 3-22: LAN Connector
Pin Description Pin Description
1 MDIA3- 5 MDIA1+
2 MDIA3+ 6 MDIA2+
3 MDIA2- 7 MDIA0-
4 MDIA1- 8 MDIA0+
Table 3-20: LAN Pinouts
LED Description LED Description
A on: linked
blinking: data is being sent/received
B off: 10 Mb/s
green: 100 Mb/s
orange: 1000 Mb/s
Table 3-21: Connector LEDs
3.3.3 P o we r Co n n e c to rs
CN La b e l: P WR_CON1
CN Typ e : DC power jack
CN Lo c a tio n : See Figure 3-21
CN P in o u ts : See Table 3-22
The power connector supports 12V DC power input.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 12VIN 2 GND
