HYPER-KBN

P a g e 43

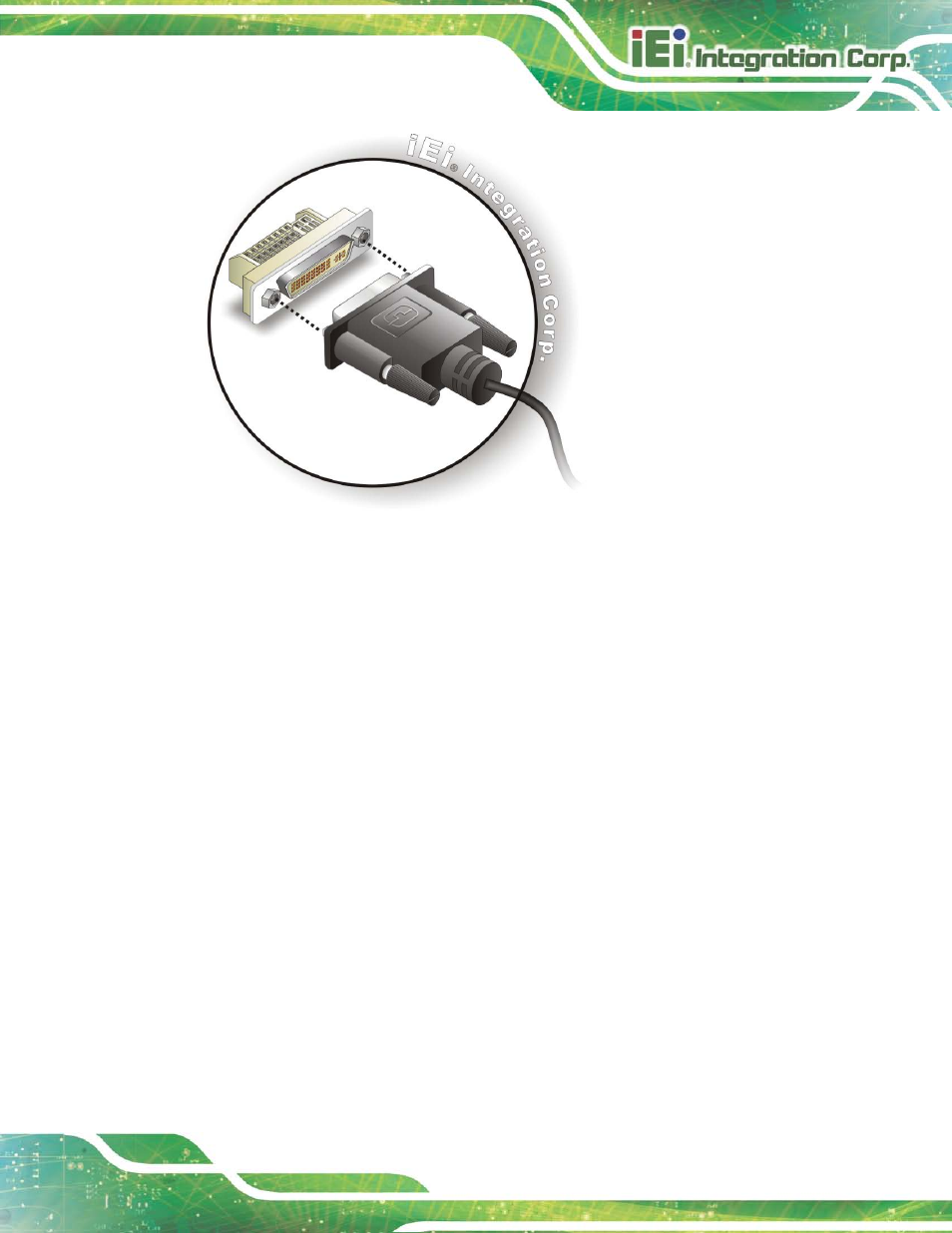

Figure 4-5: DVI Connector

S te p 4:

Secure the connector. Secure the DVI connector from the digital display device

to the external interface by tightening the two retention screws on either side of

the connector.

4.5.2 LAN Co n n e c tio n

There is one external RJ-45 LAN connector on the external peripheral interface panel. The

RJ-45 connector enables connection to an external network. To connect a LAN cable with

an RJ-45 connector, please follow the instructions below.

S te p 1:

Locate the RJ-45 connector. The location of the LAN connector is shown in

Chapter 3.

S te p 2:

Align the connector. Align the RJ-45 connector on the LAN cable with the

RJ-45 connectors on the HYPER-KBN. See Figure 4-6.
