WEATHER GUARD 1200 - Manual (Page 6)

Page 6 of 8

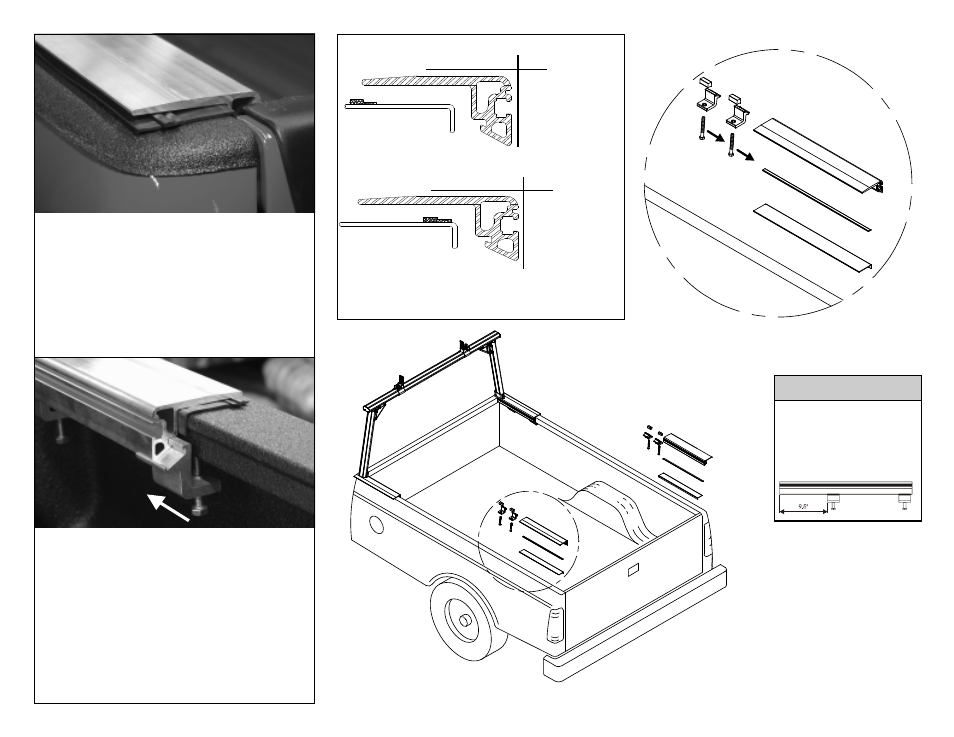

With the tailgate closed place the
mounting pads, Part H, on top of the truck
bed rails. Tape in place the mounting
wedge, Part I, on top of the mounting pad
using the diagram to the right as a guide.
Set the rear mounting rail, Part G, on top
of the wedge and pad 1/8" from the closed
tail gate.
Sliding the assembly clamps, Part J, into
the rear mounting rail, Part G, place them
as far away from each other and as close
to the ends of the mounting rails as pos-
sible. Clamps can not be more than 9.5"
from the ends of the mounting rails.
Clamp blocks, Part K, are to be flush with
the steel underside of the bed rail. Using a
torque wrench, tighten the 3/8-16 fasten-
ers in the clamps to 10 foot pounds.
PART G
PART H
PART J
Mounting Wedge Location
All Chevy/GM
Dodge Ram
Ford F150 2003
Ford Ranger
Ford 250 / 350
PART K
Close Tailgate
for Steps 6 & 7
Wedge locations are
approximate. Make
adjustments to en-
sure mounting rail,
Part G, is level on
both axis when
clamped to top of bed
rail.
STEP TEN
STEP
ELEVEN
No Wedge Necessary for the following vehicles:
Ford 150 2004 Toyota Tundra
Dodge Dakota
Clamps can not be
more than 9.5" from
either end of the
mounting rail.
IMPORTANT!
Must be level
on both axis.
Must be level
on both axis.
PART I
