Step five step six – WEATHER GUARD 1200 User Manual
Page 4
Page 4 of 8
"A"
PART D
PART B
PART E

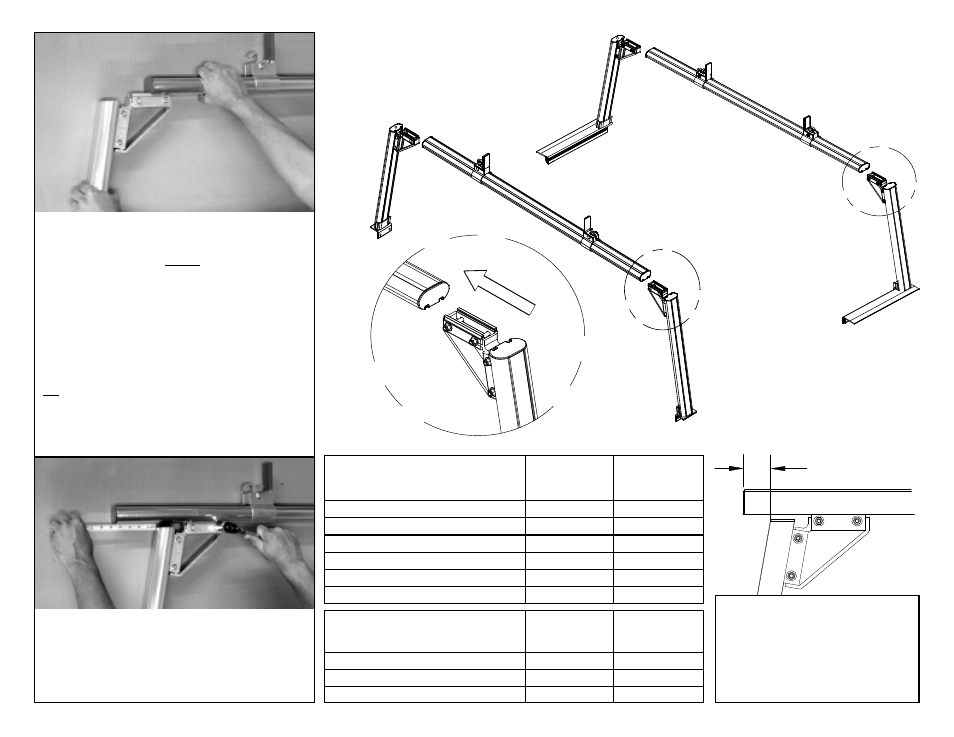

Using a torque wrench tighten the 5/16-18
fasteners to 15 foot pounds at the dimen-
sion shown in the chart to the right. Col-
umn A is for the front assembly and
column B is for the rear assembly.
Place the cross member assembly, Part B,
on its side with the WEATHER GUARD
®
Product logo facing down. Insert the driver
and passenger side front leg assemblies,
Parts D & E, into the cross member as-
sembly by sliding them in from both ends.
Now place the second cross member as-
sembly, Part B, on its side with the
WEATHER GUARD
®
Product logo facing
up. Insert the two universal rear leg assem-
blies, Part F, with the 5/16-18 nuts facing
up, into the cross member assembly by
sliding them in from both ends.
STEP
FIVE
STEP SIX
NOTE: If your vehicle is not
shown in the chart, adjust the
rack on the ground and test fit it
on the truck bed until you reach
a snug fit between the bed
rails.
ATR MOD E L 1 2 0 0
FU L L S IZE TR U C K S
VE H IC L E D IME N S ION C H AR T
D IME N S ION A
FR O N T
AS S E MB L Y
D IME N S ION A
R E AR
AS S E MB L Y
All GM S ie rra /C h e vy S ilve ra d o Tru cks
5 .5 0 "
6 .2 5 "
All D o d g e R a m Tru cks
4 .7 5 "
6 .2 5 "
All Fo rd F-1 5 0 (2 0 0 3 & 2 0 0 4 ) Tru cks
6 .2 5 "
6 .0 0 "
All Fo rd F-2 5 0 & F3 5 0 Tru cks
5 .0 0 "
5 .5 0 "
To yo ta Tu n d ra 8 ’ B e d
6 .5 0 "
6 .5 0 "
To yo ta Tu n d ra 6 .2 5 " B e d
6 .7 5 "
6 .7 5 "
ATR MOD E L 1 2 0 5
C OMP AC T S IZE TR U C KS
VEH IC L E D IME N SION C H AR T
D IMEN SION A
FR ON T
AS S EMB L Y
D IME N SION A
R EAR
ASS EMBL Y
All GM S o n o m a /C h e vy S-1 0 Tru cks
3 .0 0 "
6 .2 5 "
All D o d g e D o ko ta Tru cks
2 .7 5 "
2 .7 5 "
All Fo rd R a n g e r Tru cks
4 .2 5 "
4 .5 0 "
Both ends of cross
member
PART F
PART B
PART F
FRONT ASSEMBLY
REAR ASSEMBLY
Work on level
ground.
Work on level
ground.
