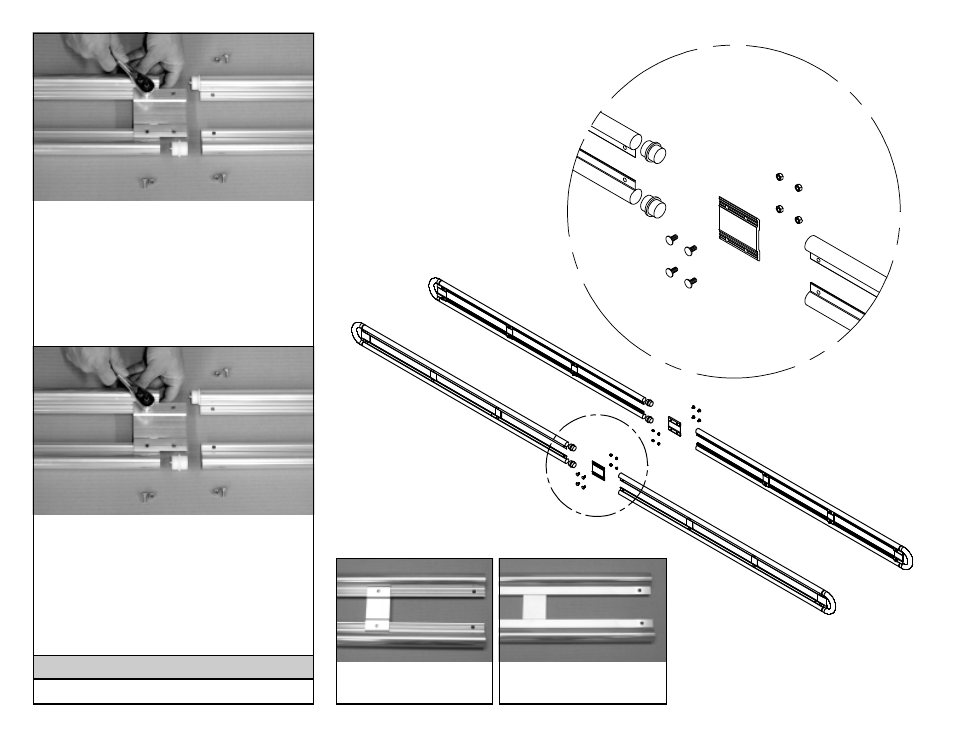

Working on level ground insert two side
rail alignment plugs, Part S, into the pas-
senger side front rail assembly, Part R.
Connect front passenger side rail assem-
bly, Part R, and passenger side rear rail
assembly, Part Q, using side rail connec-
tor plate, Part T and 1/4 -20 X 5/8" car-
riage bolts and 1/4" stop nuts.
Working on level ground insert two side
rail alignment plugs, Part S, into the driver
side front rail assembly, Part O. Connect
front driver side rail assembly, Part O, and
driver side rear rail assembly, Part P, us-
ing side rail connector plate, Part T, 1/4 -
20 X 5/8" carriage bolts and 1/4-20 stop
nuts.
STEP
ONE
STEP
TWO
PART Q
PART P
PART R
PART O
PART S
1/4-20 X 5/8"
Carriage Bolts
PART T
1/4-20
Stop Nuts
Do not overtighten 1/4" fasteners.
IMPORTANT!
Groove edge faces in
towards the truck bed.
Smooth edge faces away
from the truck bed.
