Warner Electric MTB II - Manual (Page 8)

Armature A B C BORE D E F G
Size Max. Stock* Bushing Max. Max. Max. Degree
10" 3.350 ± .020 N/A 1.750 .500–1.750 10.020 .479 3.550 120
(85.1 ± 0.5) (N/A) (44.45) (14.0–42.0) (254.5) (12.2) (88.9)
13" 5.215 ± .020 N/A 3.375 1.125–3.750 13.520 1.219 5.687 72
(132.5 ± 0.5) (N/A) (85.73) (28.0–95.0) (343.4) (31.0) (144.4)
15" 5.850 ± .020 N/A 3.375 1.125–3.750 15.325 1.219 6.875 60
(148.6 ± 0.5) (N/A) (85.73) (28.0–95.0) (389.3) (31.0) (174.6)
20" 8.125 ± .040 N/A — 2.375–5.500 20.020 2.720 — —
(206.4 ± 1.0) (N/A) — — (508.5) (69.1) —
* Stock bore is straight bore for use with Trantorque bushing.
8 Warner Electric • 800-825-9050 819-0342

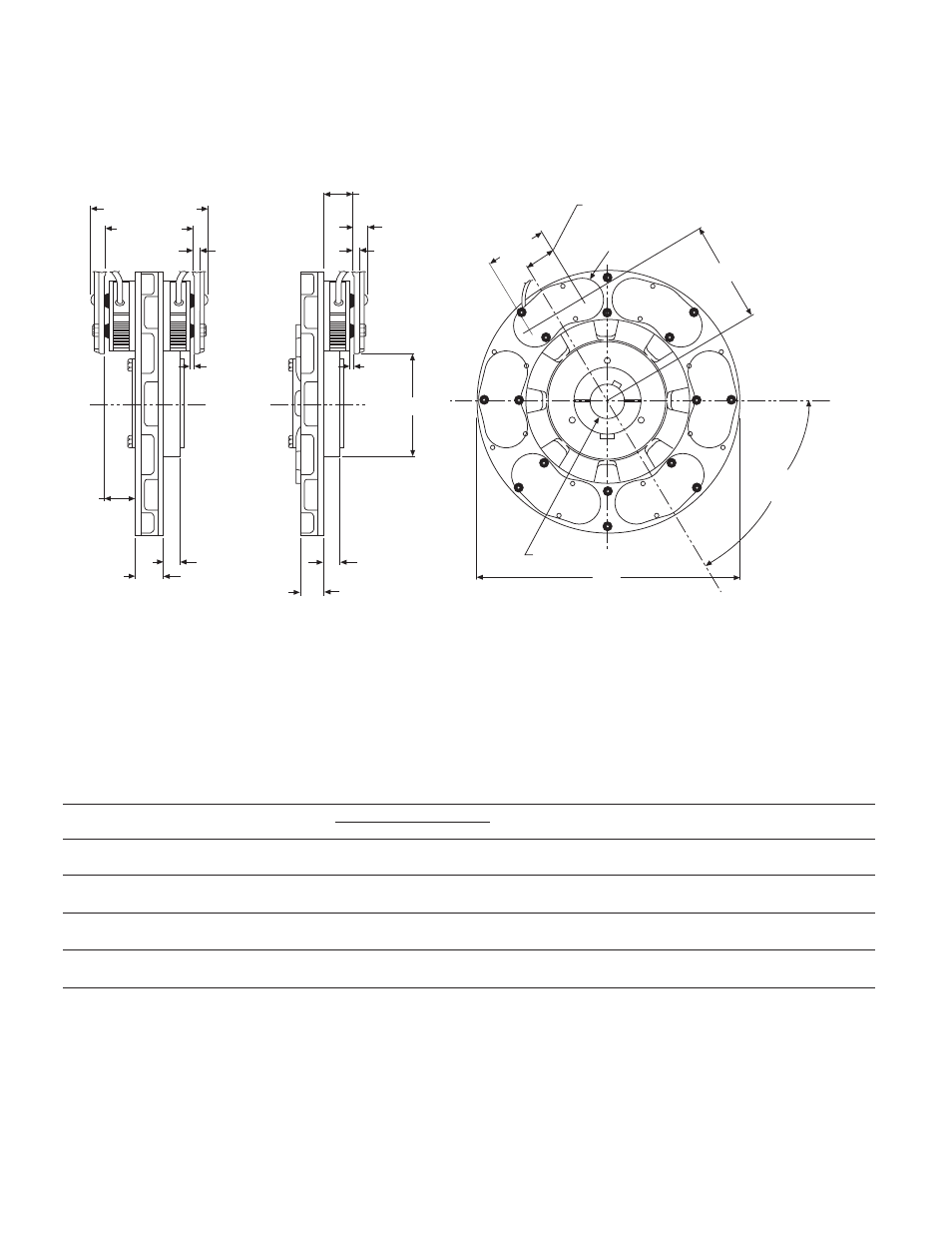

Modular Tension Brake–Direct Mounting
C
BORE
D
DIA.
G
DEG.
1.795
(45.6)
1.644
(41.8)
E
1.830
(46.6)
.865
(22.0)
MAX.
.350
(8.9)
MAX.
BULK
HEAD
.200
(5.08)
SET-UP
F
E
3.500 .002
(88.9 .051)
1.750 .015
(44.5 .381)
MAGNET
ASSEMBLY
A
1.322
(33.58)
7.080 (179.8) MAX.
5.330 .020
(135.4 .508)
.350
(8.9)
MAX.
BULK
HEAD
.200
(5.08)
SET-UP
Dual Armature Single Armature
inch (metric)
All Dimensions Nominal unless specified
