Page 10

Warner Electric • 800-825-9050

819-0342

Part Numbers

Item Description 10" Armature 13" Armature 15" Armature 20" Armature
1 Armature Carrier (Bushing Enters from Flush

Side of Carrier as Shown) 295-0021 295-0023 295-0019 –

Armature Carrier Reverse Taper (Bushing

Enters from Extended Side of Carrier 295-0031 295-0030 295-0029 –

Armature Carrier (Straight Bore) 295-0026 295-0027 295-0028 –

2 Armature (Replaceable Face) 5216-101-025 5216-101-026 5216-101-024 –

2a Armature Mounting Accessory (included with Armature 5216-101-023 5216-101-023 5216-101-023 –

3 Bushing (Customer Supplied) Taper Bore Browning P1 Browning R1 Browning R1 _

Straight Bore Use Trantorque. Consult Warner Electric

4 Female Pin Kit (includes 2 Pins) 5216-101-030 5216-101-030 5216-101-030 5216-101-030

4a Male Pin Kit (includes 32 Pins with Nuts and Lockwashers) 5216-101-029 5216-101-029 5216-101-029 5216-101-029
Magnet Carriers
5 Single Magnet Carrier Assembly 5216-295-004 5216-295-004 5216-295-004 5216-295-004

6 Dual Magnet Carrier Assembly 5216-295-005 5216-295-006 5216-295-007 5216-295-007
Carrier Brackets
7 Universal Mounting Bracket, Series 10-0, 13-0, & 20-0 (2) 5216-101-020 5216-101-020 5216-101-020 5216-101-020

Universal Mounting Bracket, Series 10-10, 13-13, & 20-20 (2) 5216-101-021 5216-101-021 5216-101-021 5216-101-021

8 Bulk Head Mounting Bracket (3) 5216-101-022 5216-101-022 5216-101-022 5216-101-022
Magnets
9 Magnet Assembly, Standard 5216-631-010 5216-631-010 5216-631-010 5216-631-010

Magnet Assembly, HICO 5216-631-013 5216-631-013 5216-631-013 5216-631-013

9a Friction Pad, Standard (Replacement Part Only) 5216-101-028 5216-101-028 5216-101-028 5216-101-028

Friction Pad, HICO 5216-631-031 5216-631-031 5216-631-031 5216-631-031

9b Preload Spring (1) (Included with Magnets) 808-0008 808-0008 808-0008 808-0008

10 Magnet Assembly with Wear Indicator 5216-631-009 5216-631-009 5216-631-009 5216-631-009

10a Friction Pad with Wear Indicator (Replacement Part Only) 5216-101-027 5216-101-027 5216-101-027 5216-101-027

(1) Two of each required for each brake magnet.

(2) Includes magnet carrier (4 & 5) mounting hardware.

(3) Includes magnet mounting hardware, bracket mounting bolts and spacers.

Browning is a registered trademark of Emerson Electric Co., Trantorque is a registered trademark of Trantorque Corporation.

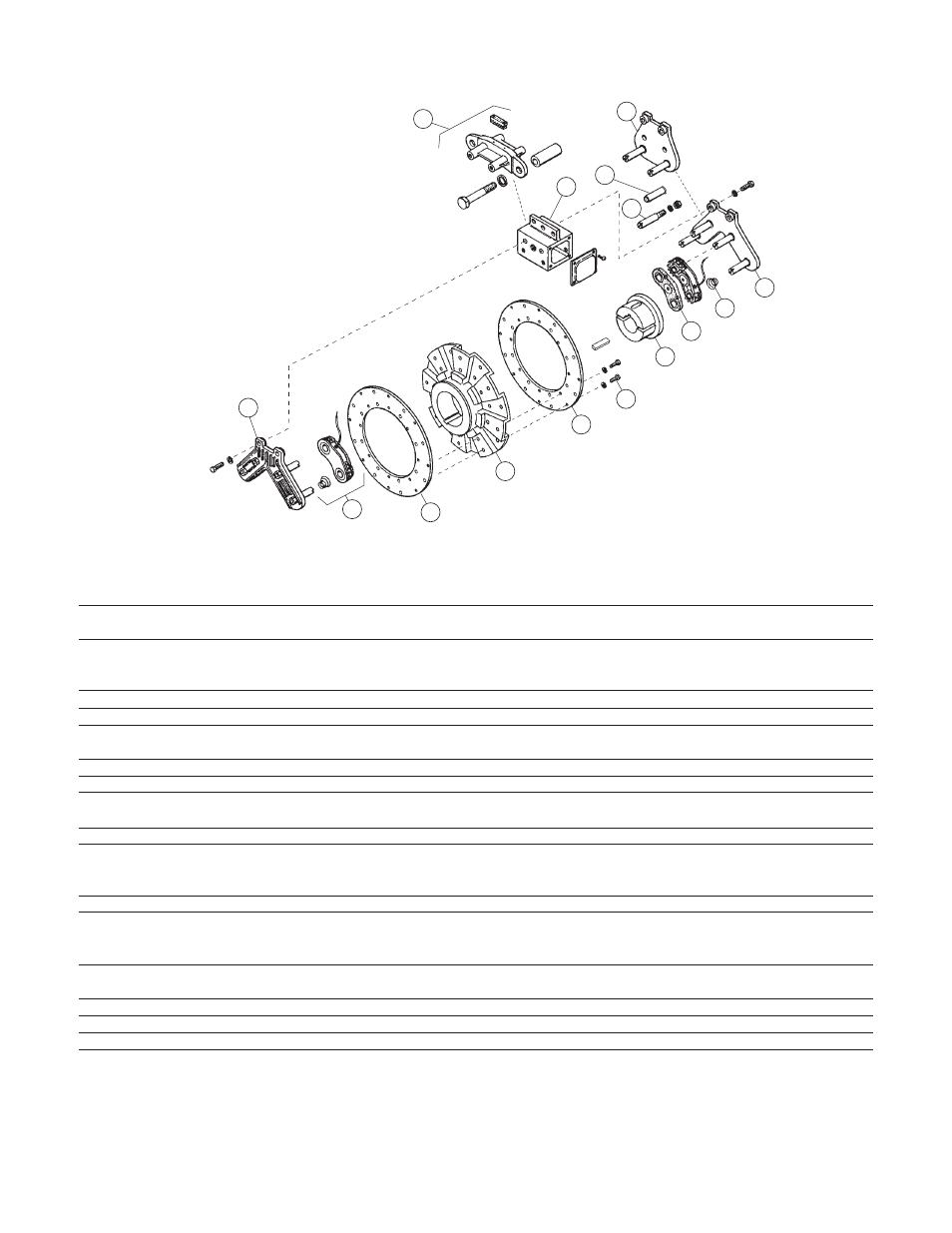

Brake Assemblies and Part Numbers

MTB II
