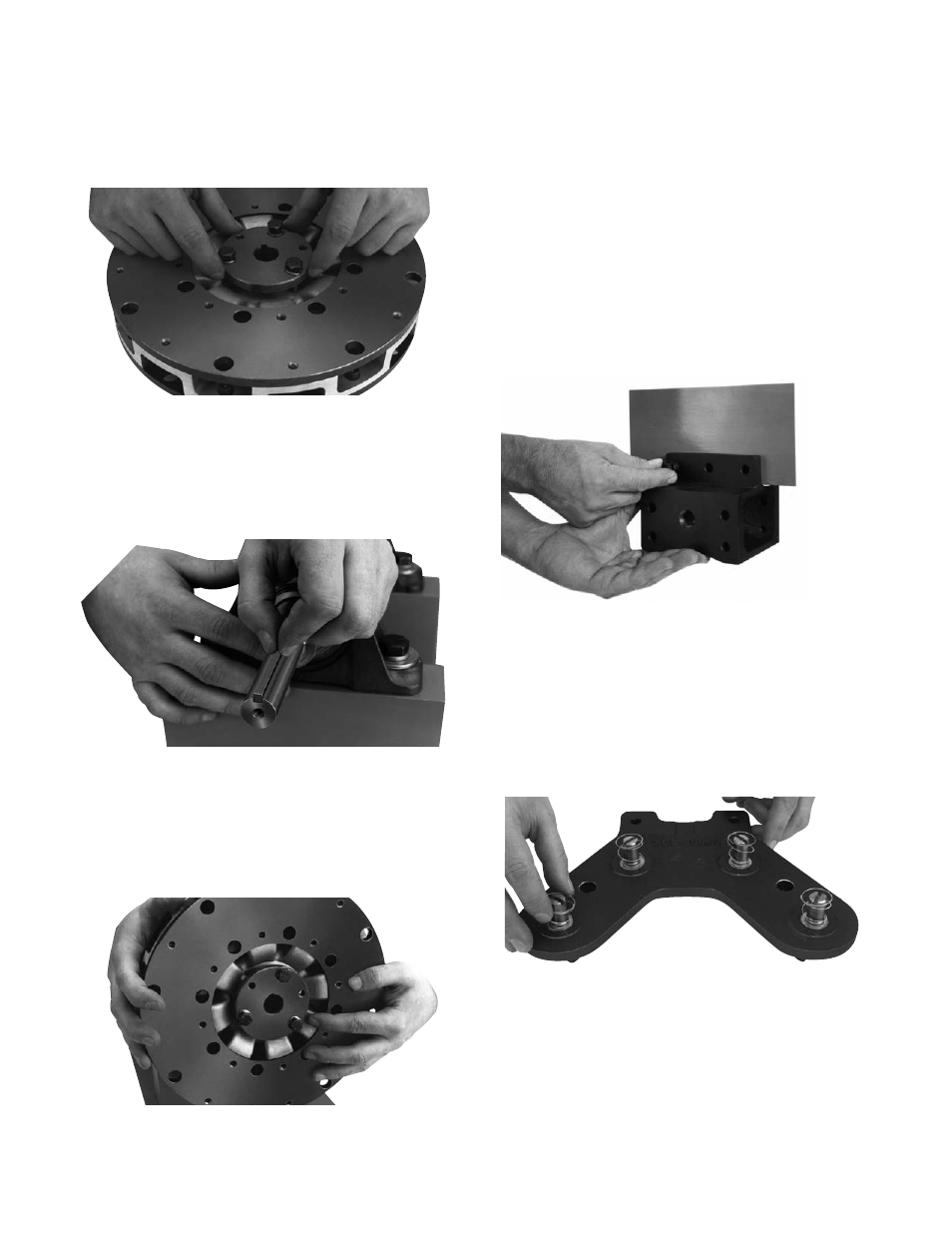

Installing the Armature Assembly
Insert the tapered bushing loosely into the
armature assembly and start the capscrews with
their lockwashers. (Figure 3)
Figure 3
Tapered Bushing Carrier
Install the key in the machine shaft keyway.
(Figure 4)
Figure 4
Slide the armature carrier assembly onto the
shaft to the approximate position required for
operation.
Do not tighten the bushing yet
since final positioning will be required later.
(Figure 5)
Figure 5
Straight Bore Carrier
The armature carrier may be ordered with a
range of standard straight bores suitable for
various standard mounting products. Custom
bores are also available to adapt to special
devices. Consult the factory for information on
modifications.
Mounting the Magnets
If mounting brackets are used, mount the
brackets to the machine frame using the holes
prepared earlier. (Figure 6)
Figure 6
If a Warner magnet carrier is used, place the
carrier on a horizontal surface with the pins
facing up. (Figure 7)
Figure 7
