Armature A B C BORE D E F G
Size Max. Stock* Bushing Max. Max. Max. Degree
10" 5.260 ± .020 7.750 1.750 .500–1.750 10.020 .479 3.55 180
(133.6 ± 0.5) (196.9) (44.45) (14.0–42.0) (254.5) (12.2) (88.9)
13" 6.822 ± .020 9.300 3.375 1.125–3.750 13.520 1.219 5.687 108 &
(173.3 ± 0.5) (236.2) (85.73) (28.0–95.0) (343.4) (31.0) (144.4) 144
15" 7.760 ± .020 10.230 3.375 1.125–3.750 15.325 1.219 6.875 120
(197.1 ± 0.5) (259.9) (85.73) (28.0–95.0) (389.3) (31.0) (174.6)
20" 10.250 ± .020 12.500 — 2.375–5.500 20.020 2.720 4.380 —
(260.4 ± 0.5) (317.5) — — (508.5) (69.1) (111.3)
* Stock bore is straight bore for use with Trantorque bushing.
7 Warner Electric • 800-825-9050 819-0342

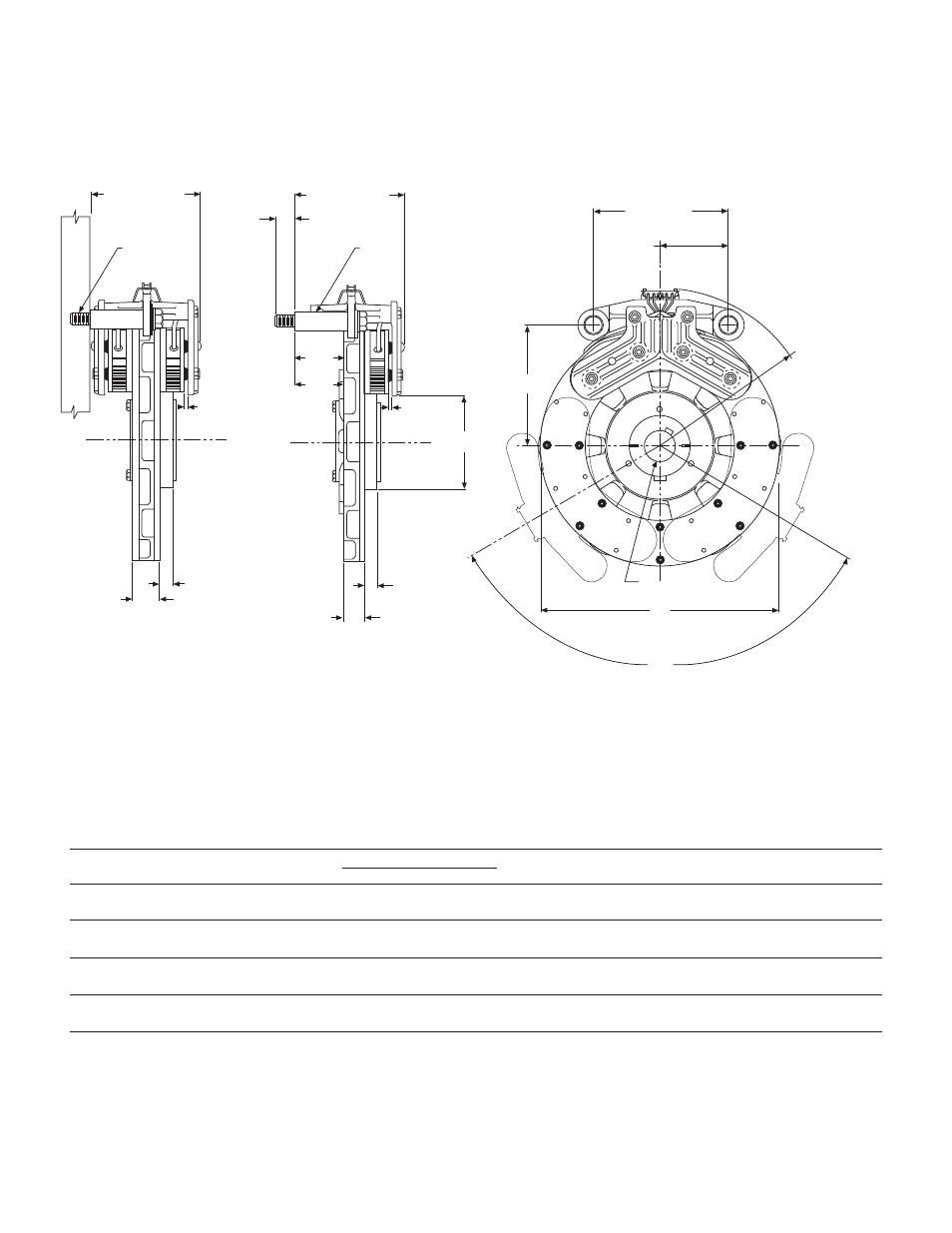

Dimensions
Modular Tension Brake
Bulk Head Mounting Brackets
7.250 (184.2) MAX. 7.250 (184.2) MAX.
3/4-10 UNC-2A
THREAD (2)
.200
(5.08)
SET-UP
1.644
(41.8)
E E
F
A
1.070
(27.2)
MIN.
MOUNTING
SPACER
3.440
(87.4)
3.125
(79.4)
.200
(5.08)
SET-UP
8.750 .003
(222.2 .762)
4.375 .015
(111.1 .381)
B
RADIUS
D
DIA.
C
BORE
G
DEG.
1.322
(33.58)
inch (metric)
All Dimensions Nominal unless specified
Dual Armature Single Armature
