17 Warner Electric • 800-825-9050 P-206 • 819-0519

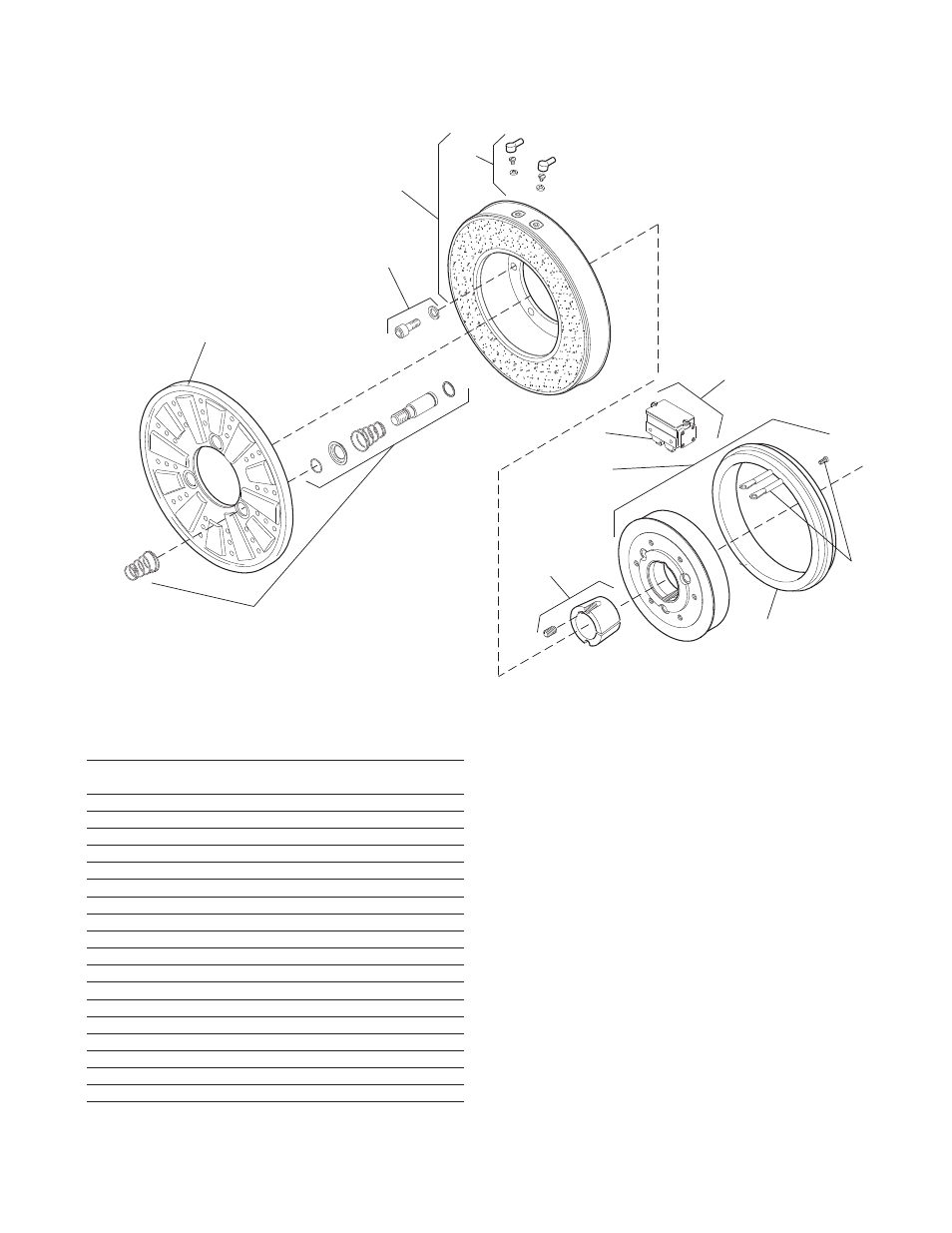

PC-1000 Clutch Normal Duty Drawing I-25582
How to Order:
1. Specify Voltage for Item 4.
2. Specify Bore Size for Item 5.
3. Specify left hand or right hand hub for Item 6.
(Bush ing enters from magnet side for L.H. hub
and from hub side for R.H.)
Example:
PC-1000 Clutch per I-25582 - 90 Volt, L.H. hub,
1" Bore
These units meet the standards of UL508 and are
listed under guide card #NMTR2, file #59164.
These units are CSA certified under file #LR11543.
PC-1000
Item Description Part Number Qty.
1 Armature 5302-111-013 1
2 Autogap Accessory 5201-101-008 3
3 Mounting Accessory 5321-101-001 1
4 Magnet 1
6 Volt 5302-631-003
24 Volt 5302-631-004
90 Volt 5302-631-005
†90 Volt LK Facing 5302-631-001
4-1 Terminal Accessory 5311-101-001 1
5 Bushing*
1/2" to 2-1/2" Bore
180-0186 to 180-0217
6 Magnet Hub 1
Left Hand 5302-541-001
Right Hand 5302-541-002
6-1 Collector Ring 5301-749-001 1
6-2 Collector Ring Accessory 5302-101-002 1
7 Brushholder 5300-178-001 1
7-1 Brush 176-0001 4
*See page 38 for specific part numbers.
†Optional LK facing available.
1
3
4
4-1
2
6
(Shipped
Asembled)
7-1
7
5
6-1
6-2
