Warner Electric Dairy Cap Chuck User Manual
Page 8
8 Warner Electric • 800-825-9050
P-2021

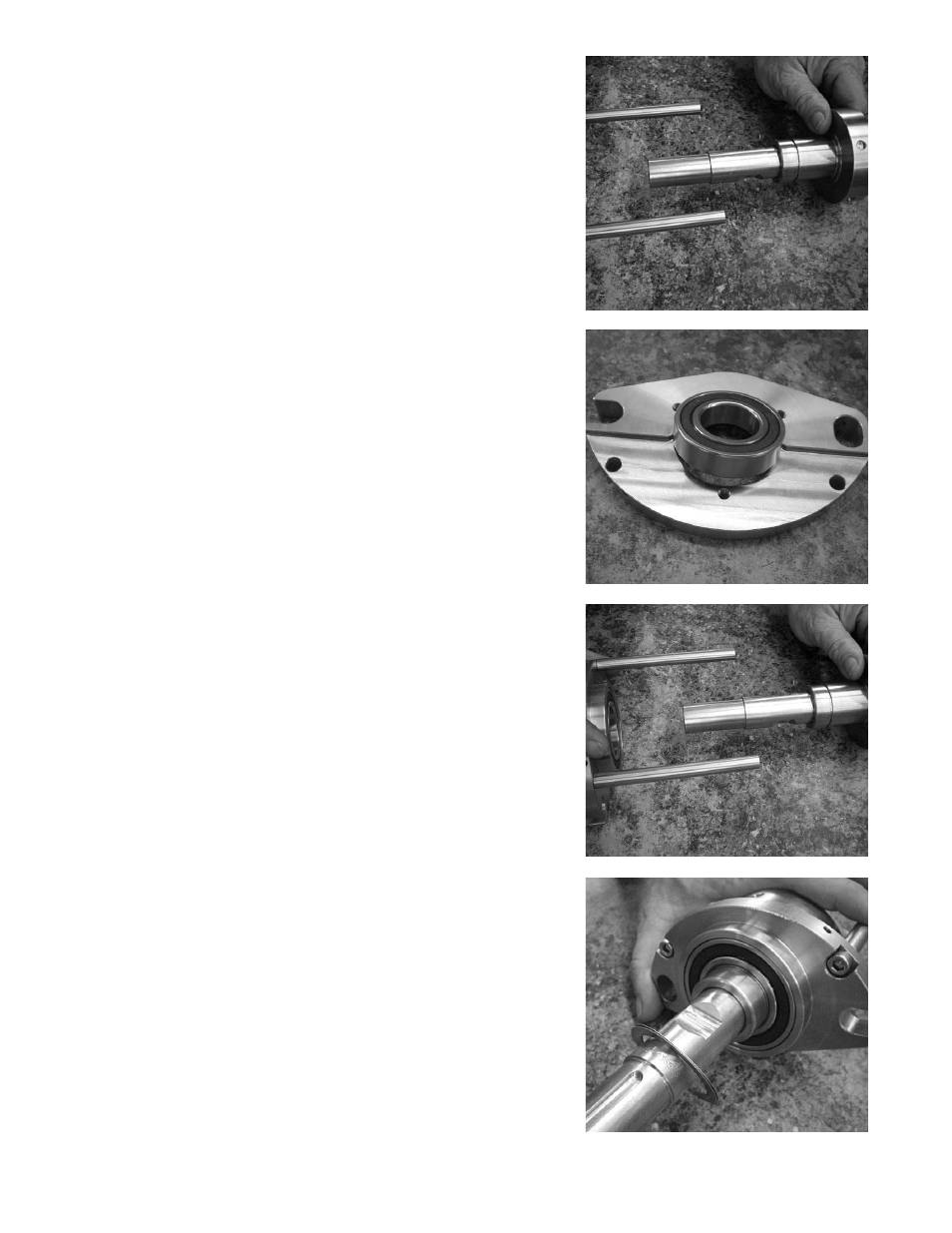

Figure 26
Remove shaft from top plate. See figure 23.
Replace the two bearings in the top plate.
Replace bearing in bottom plate. See figure 24.
Install shaft with adapter onto top plate. See figure
25.
Install shims onto shaft. See figure 26.
Figure 23
Figure 24
Figure 25
