18 Warner Electric • 800-825-9050 P-2021

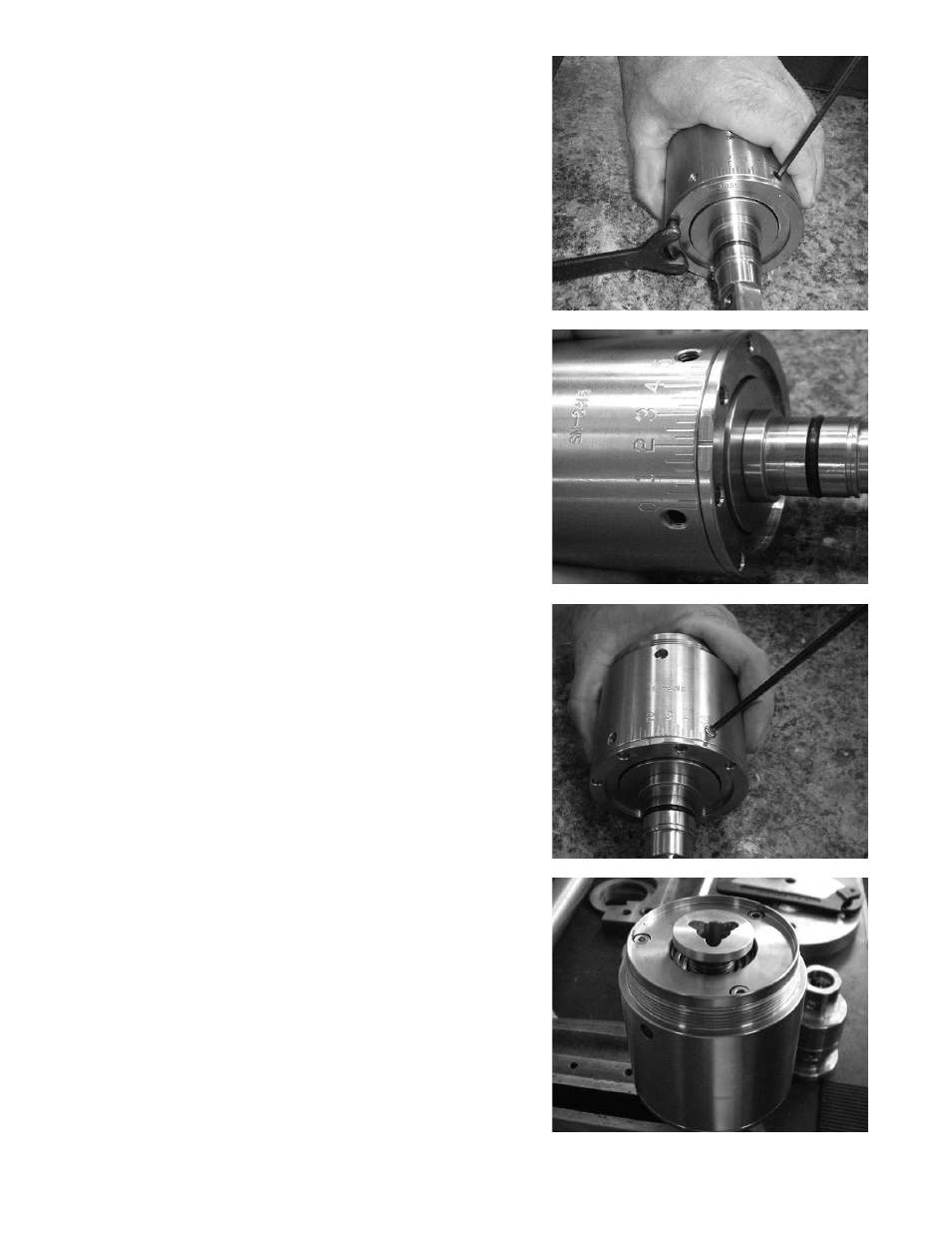

Figure 62
Figure 63
Figure 64
Press down on pin with allen wrench and place
spanner wrench (YTL2-0002) onto adjustable
end plate. Turn the allen wrench and the spanner
wrench at the same time to lock pin into place.
See figure 62.
Turn adjustable end plate until witness mark falls
between the O and 5 torque markings. See figure
63.
Install the two set screws onto front of housing
using 3mm hex wrench. Do not tighten down yet.
See figure 64.
Place unit back into the vice. Apply Blue loctite to
the thread of the nut. Using FIX-0019 and 1 1/8”
or 28mm socket wrench reinstall the nut. Torque
nut down to 45 ft. lb. See figure 65.
Figure 65
