Figure 6

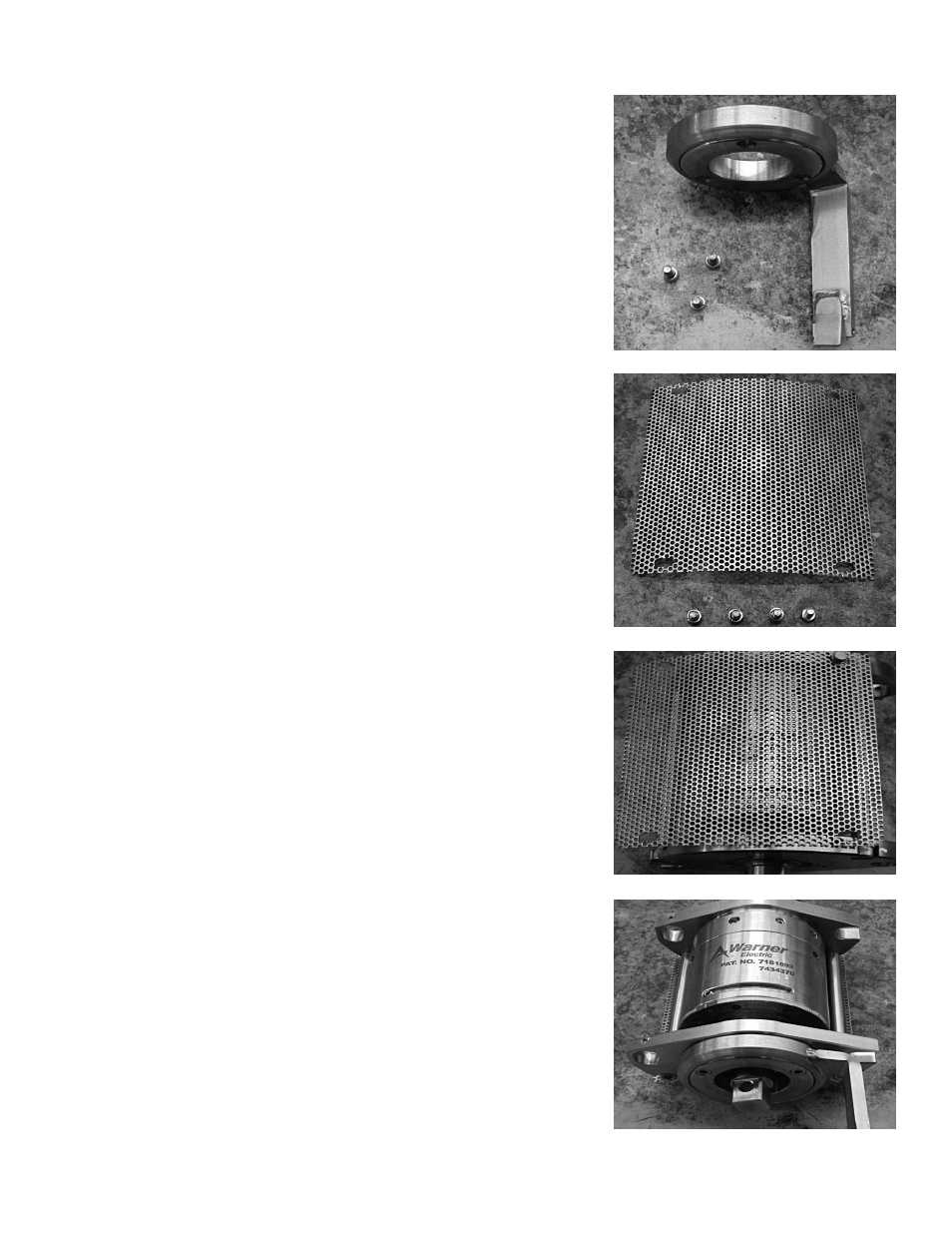

Remove handle. Set aside finger, three socket
head cap screws and lock washers. See figure 3.
Remove screen. Set aside screen, 4 screws, and
4 lock washers. See figure 4.
Install screen, 4 lock washers, and 4 screws onto
new unit. It may be necessary to widen original
holes on screen. See figure 5.
Install finger onto new unit. See figure 6.
*Depending on previous equipment a longer
finger may be necessary.
Figure 3
Figure 4
Figure 5
Installing Clutch
