Warner Electric Dairy Cap Chuck User Manual
Page 19
Warner Electric • 800-825-9050
P-2021 19

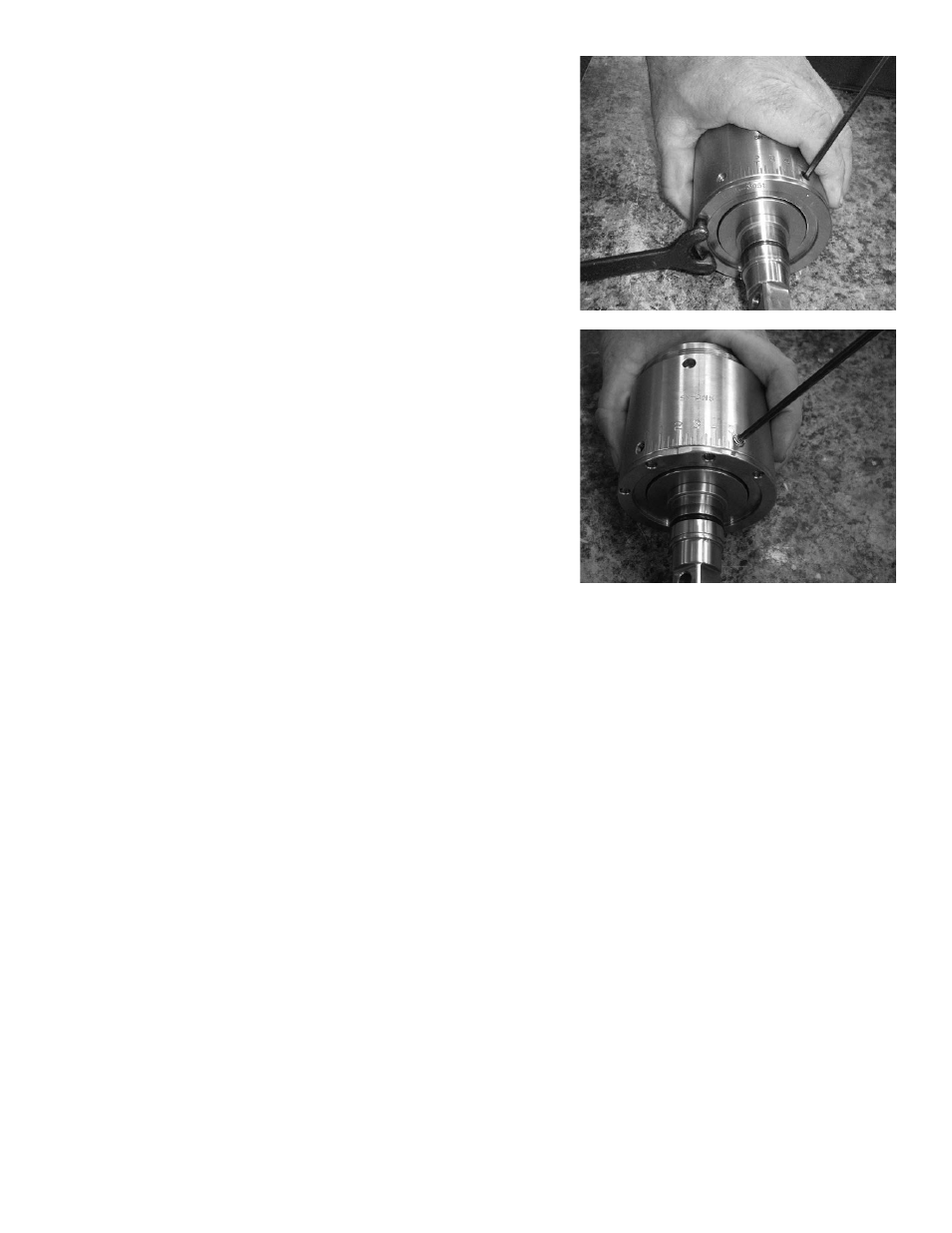

Figure 66
Figure 67
Using spanner wrench (YTL2-0002) adjust to
desired torque setting. See figure 66.
Tighten down set screws using 3mm hex wrench.
Tighten set screws to 8-10 lb-in. Over tightening is
not necessary and will strip the screws or possibly
damage the housing body. Reinstall unit. See figure
67.
