Warner Electric Dairy Cap Chuck User Manual
Page 10
10 Warner Electric • 800-825-9050
P-2021

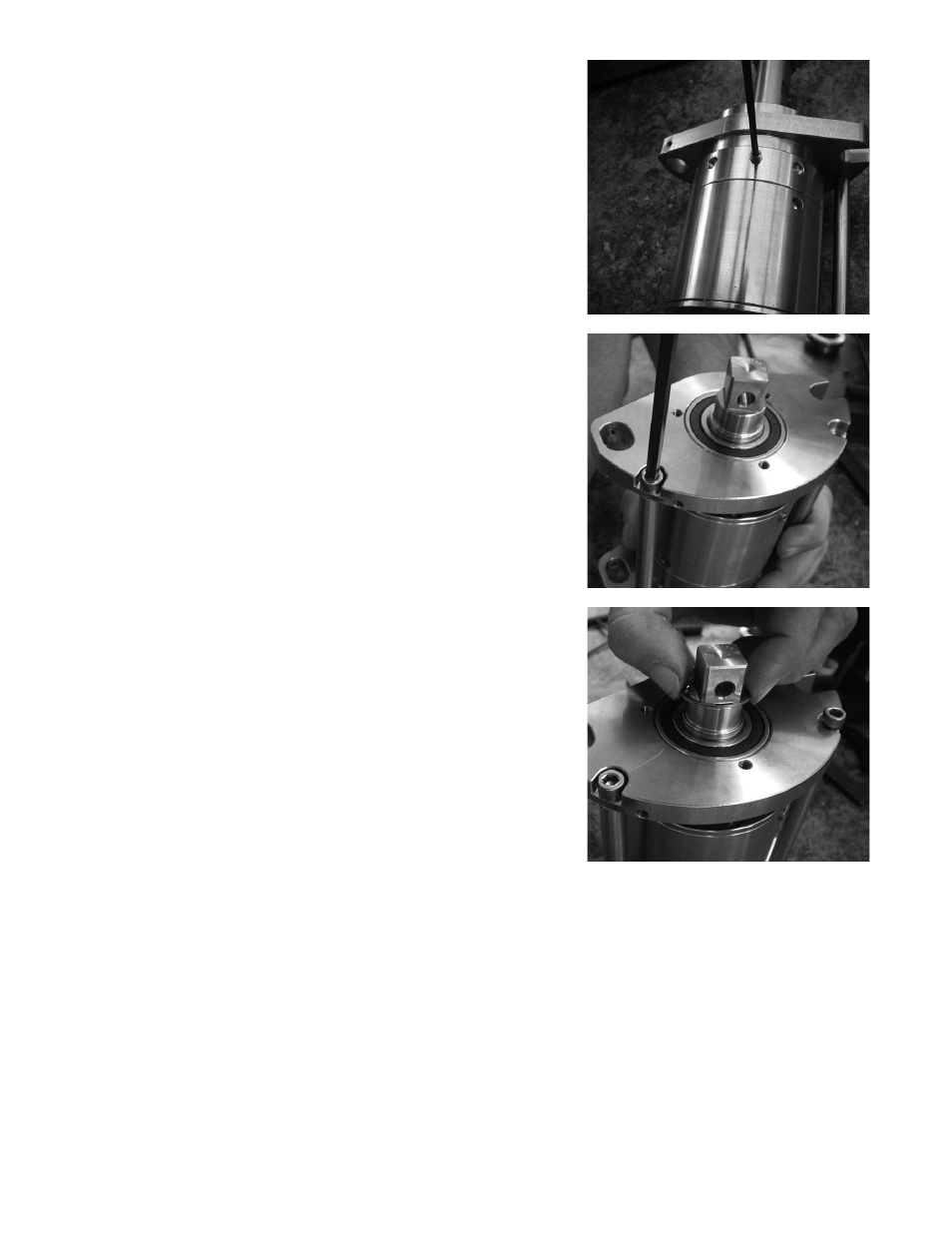

Install set screw on back side of housing using
3mm hex wrench. Tighten set screws to 8-10 lb-
in. Over tightening is not necessary and will strip
the screws or possibly damage the housing body.
See figure 31.
Install bottom plate over shaft of clutch. Install
screws using 3/16” hex wrench onto bolts to hold
plate in place. See figure 32.
Install snap ring over shaft of clutch. See figure 33.
Figure 31
Figure 32
Figure 33
