14 Warner Electric • 800-825-9050 P-2021
Figure 49

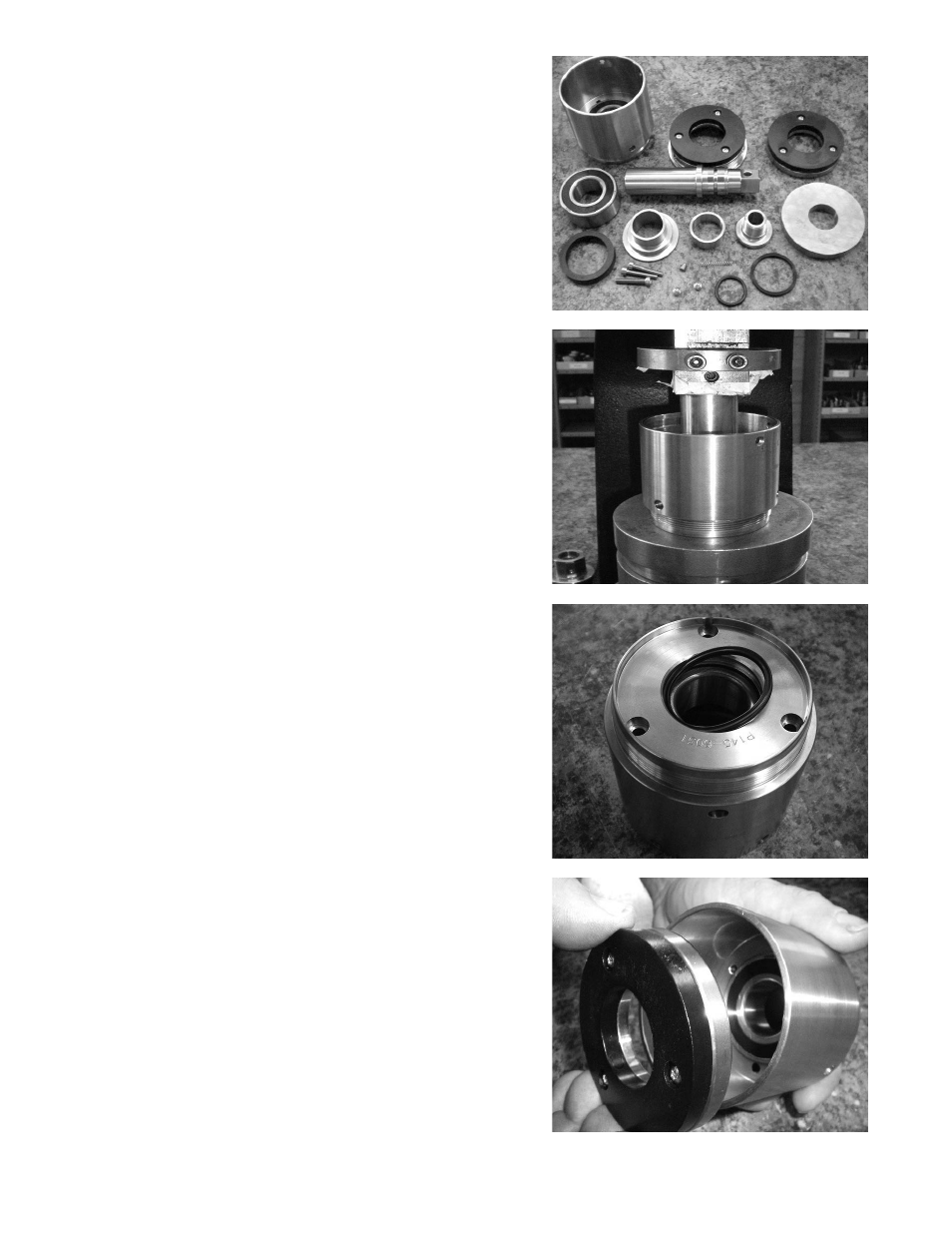

You will now have all of the pieces shown in the
picture to the right. Clean all pieces and replace
parts as needed. Use an alcohol based cleaning
solvent to clean the black driver magnets. Do
not use anything abrasive when wiping the black
driver magnets. Use a Scotch Brite deburr wheel
to polish the hysteresis magnet. See figure 46.
Turn housing over. Press new bearing in housing
using FIX-0002 and an arbor press. See figure 47.
Put in new seal. See figure 48.
Install end cap with black driver magnet into
housing. Be sure to line up holes for set screws.
See figure 49.
Figure 46
Figure 47
Figure 48
