Warner Electric • 800-825-9050 P-2021 15
Figure 53

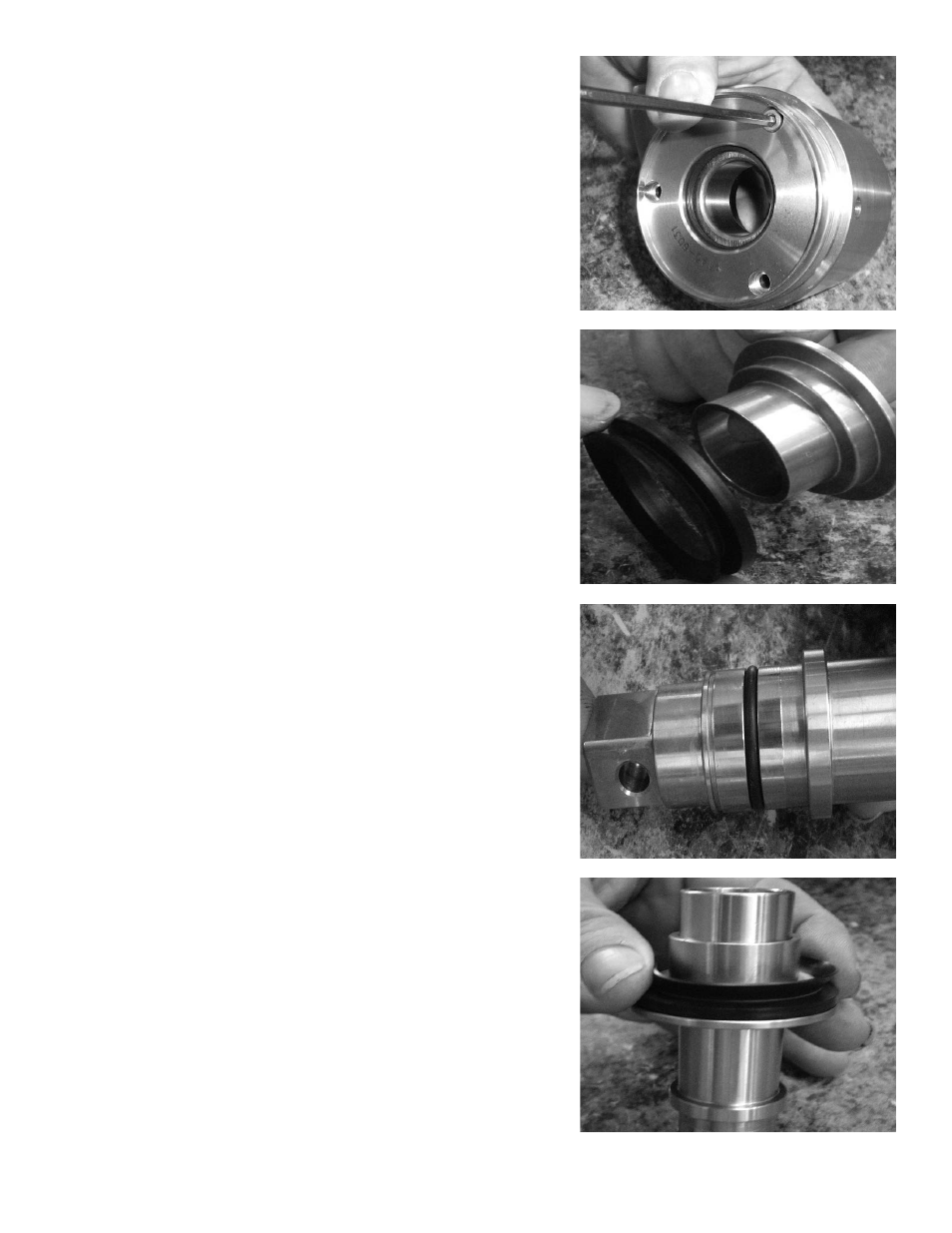

Reinstall three cap screws on top of housing using
3mm hex wrench. See figure 50.
Place grease seal over spacer. See figure 51.
Install o-ring into grove of shaft. See figure 52.
Slide spacer with grease seal onto shaft. See figure
53.
Figure 50
Figure 51
Figure 52
