MODEL CT-7500

OPERATING INSTRUCTIONS

Rev 2 Jan 2001

45

9.10 Print Breaker Test Plan Directory

The user can print a breaker test plan directory stored in the CT-7500 EEPROM using the

steps in table below:

Table 9-12. Print a Breaker Test Plan Directory

STEP

OPERATION

ACTION

DISPLAY

1

SELECT SET UP MENU.

PRESS # 3 KEY.

1. ANALYSIS POINT
2. MEASUREMENT UNITS
3. SAVE / RESTORE
4. NEXT PAGE

2

SELECT ANALYSIS POINTS.

PRESS # 1 KEY.

1. OPEN TIMING
2. CLOSE TIMING
3. PRINT SETTINGS
4. TEST PLAN

3

SELECT TEST PLAN.

PRESS # 4 KEY.

1. LOAD TEST PLAN
2. PRINT TEST PLAN
3. PRINT DIRECTORY

4

SELECT PRINT TEST PLAN DIRECTORY.

PRESS # 3 KEY.

1. TIMER BRKR
2. GET RESLT
3. SET UP
4. DIAGNOSTIC

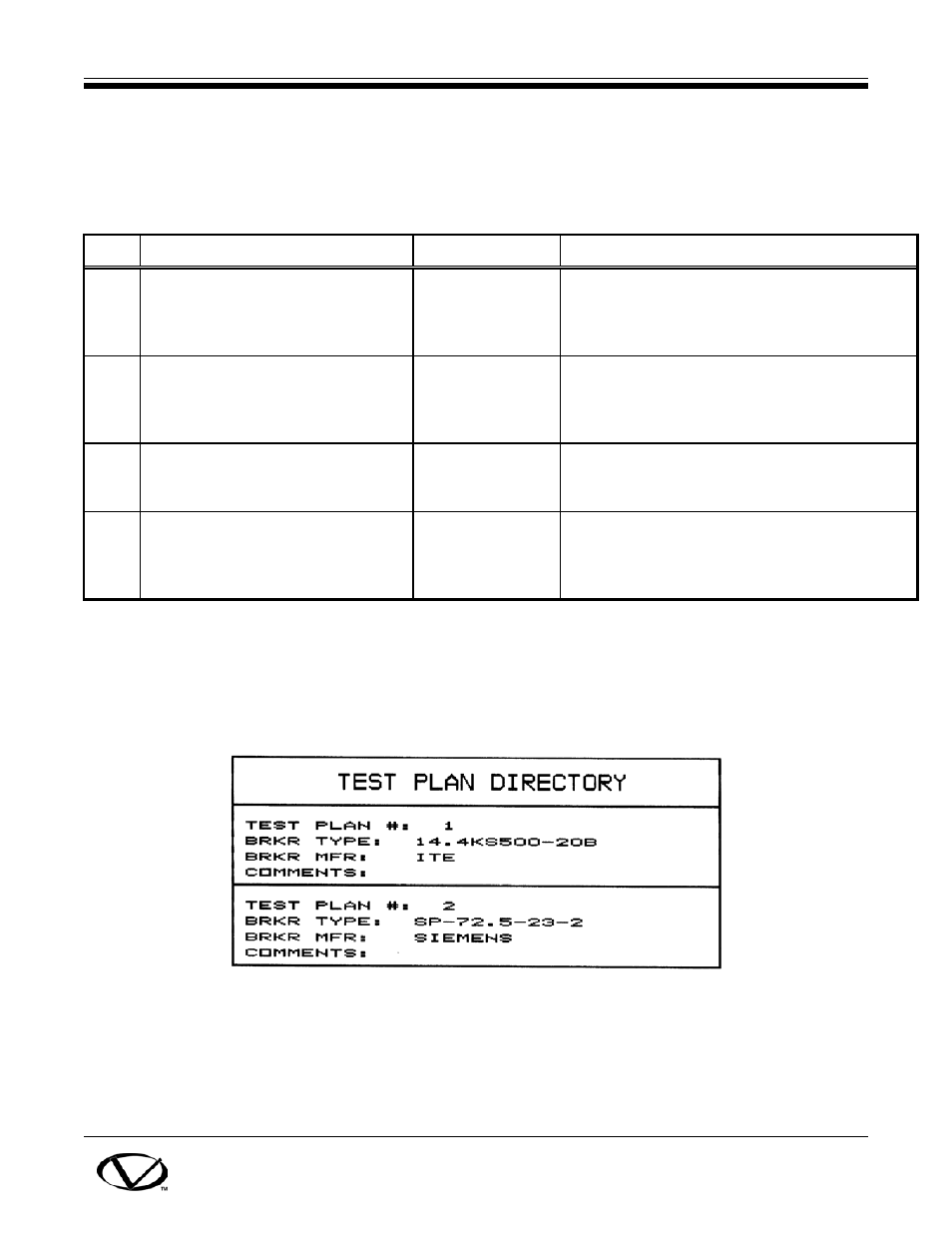

Figure 9-11. Typical Test Plan Directory Printout.
