Chapter 8: Reports and Tools
PETracer Software User Manual
88
Teledyne LeCroy

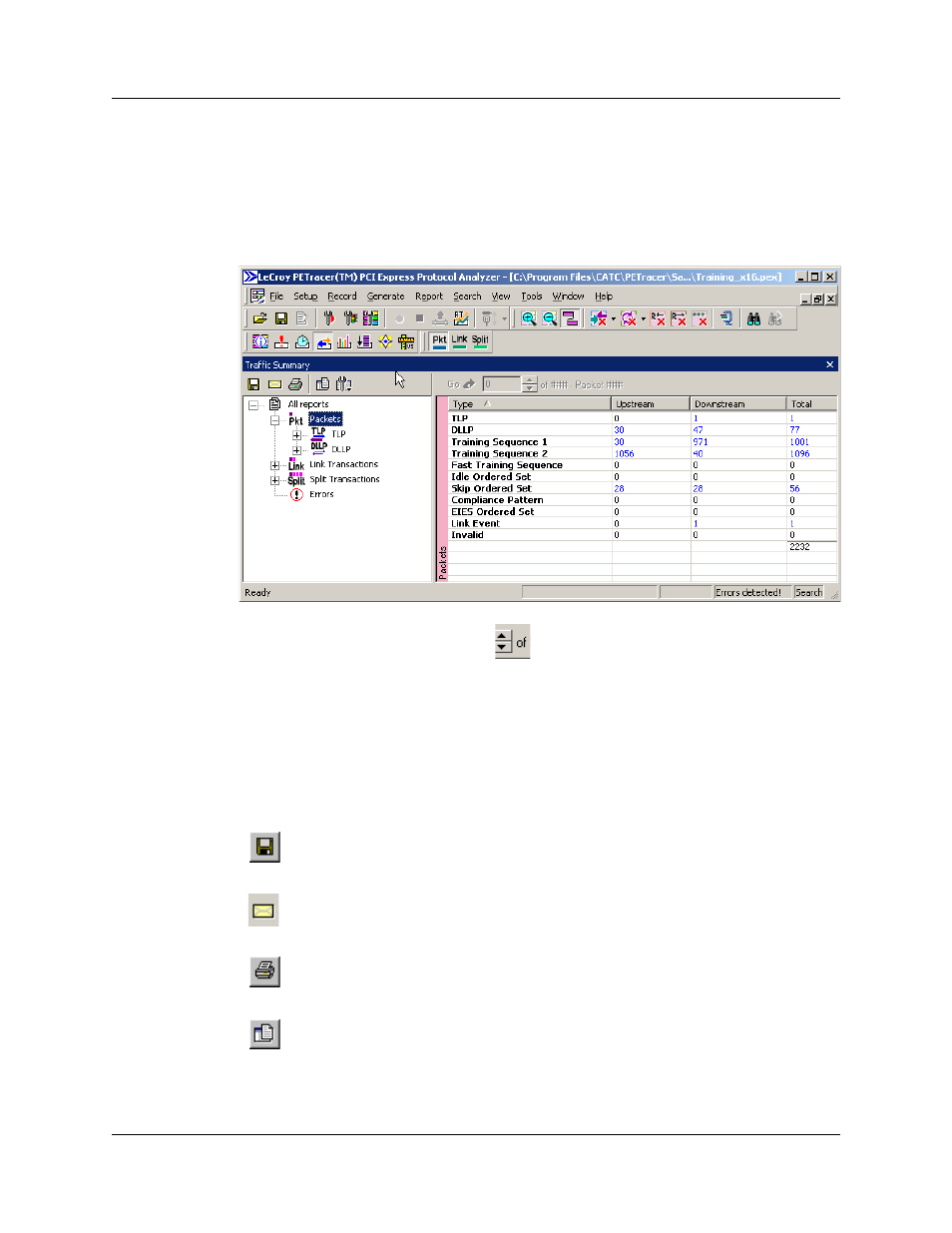

Using the Traffic Summary Window to Search the
CATC Trace
You can use the Traffic Summary window to move the CATC Trace to packets of interest:
Step 1 Click one of the numbers in the right side of the Traffic Summary window.
The CATC Trace jumps to the first instance of the selected protocol.
Step 2 Click the up or down arrows
. The CATC Trace jumps forward or
backward through the display to the next instance of selected protocol
level.
Traffic Summary Buttons
Buttons at the top of the Traffic Summary dialog box provide options for exporting the
data or formatting its appearance:
Save. Saves Traffic Summary results into an HTML format.
Email. Attaches an HTML file of the results to a new email.
Print. Prints results.
Text. Displays results in HTML format.
