PETracer Software User Manual Chapter 8: Reports and Tools
Teledyne LeCroy
109

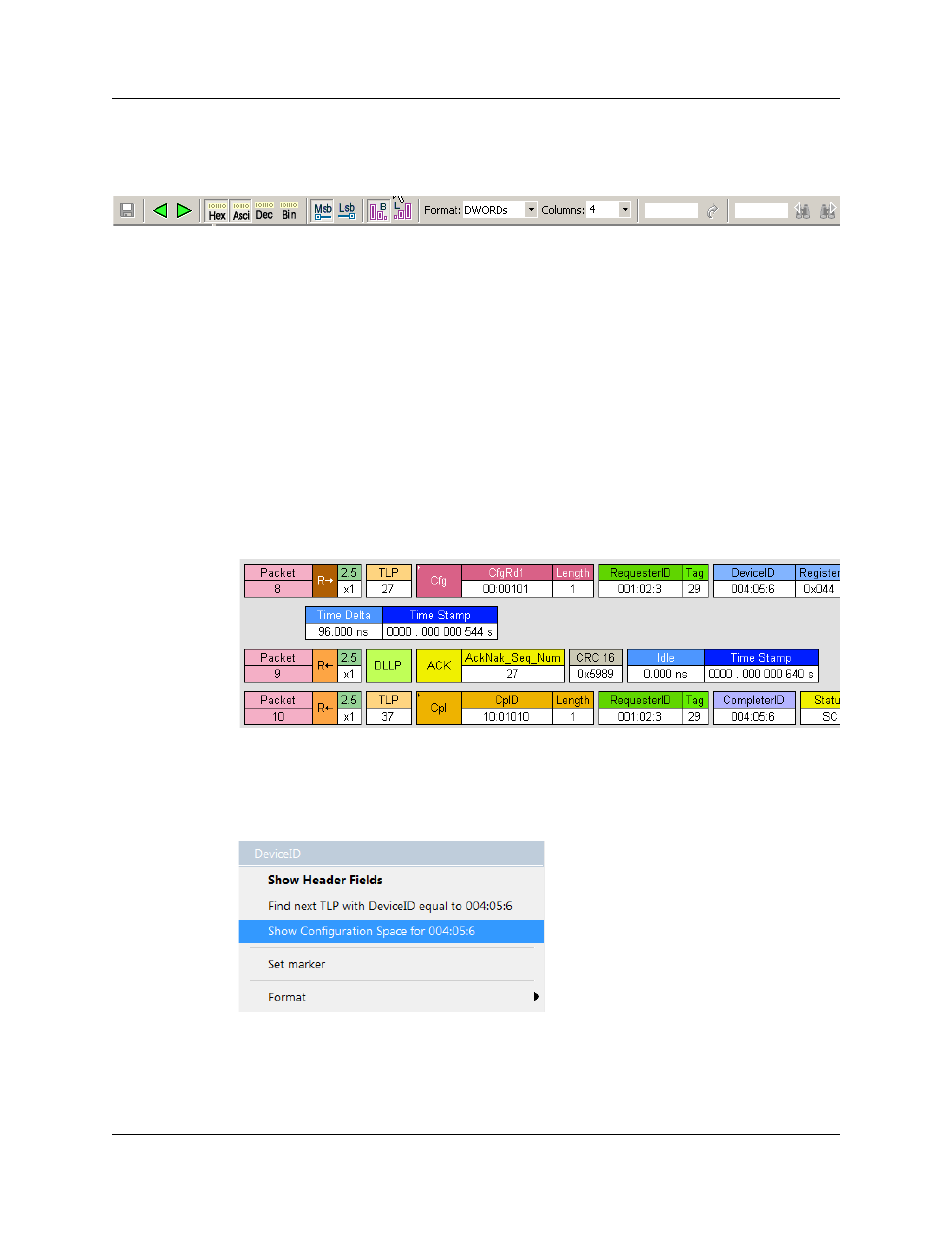

The toolbar allows you to Save; go to Previous or Next; display Hexadecimal, ASCII, Decimal,
or Binary; use MSB Format or LSB Format; and use Big Endian or Little Endian.
Format and Columns allows you to enter the number of bytes, words, or dwords per line.
You can enter an Offset and scroll to it.
You can enter text and Search Previous or Search Next.
8.12 Configuration Space View
The Configuration Space View displays information about the Configuration Space state
as of the current packet of the currently selected device. The view shows the
Configuration Space Header and the PCI-compatible or PCI Express
Capability Structures.
To display the Configuration Space View for a device at a packet:
Step 1 Open a CATC Trace, such as the sample file cfg_pci_express.pex.
Step 2 Scroll to a packet with a Configuration header.
Step 3 Select Report > Configuration Space > to display the
Configuration Space View.
or
Click a CompeterID or DeviceID field. A pop-up menu opens.
